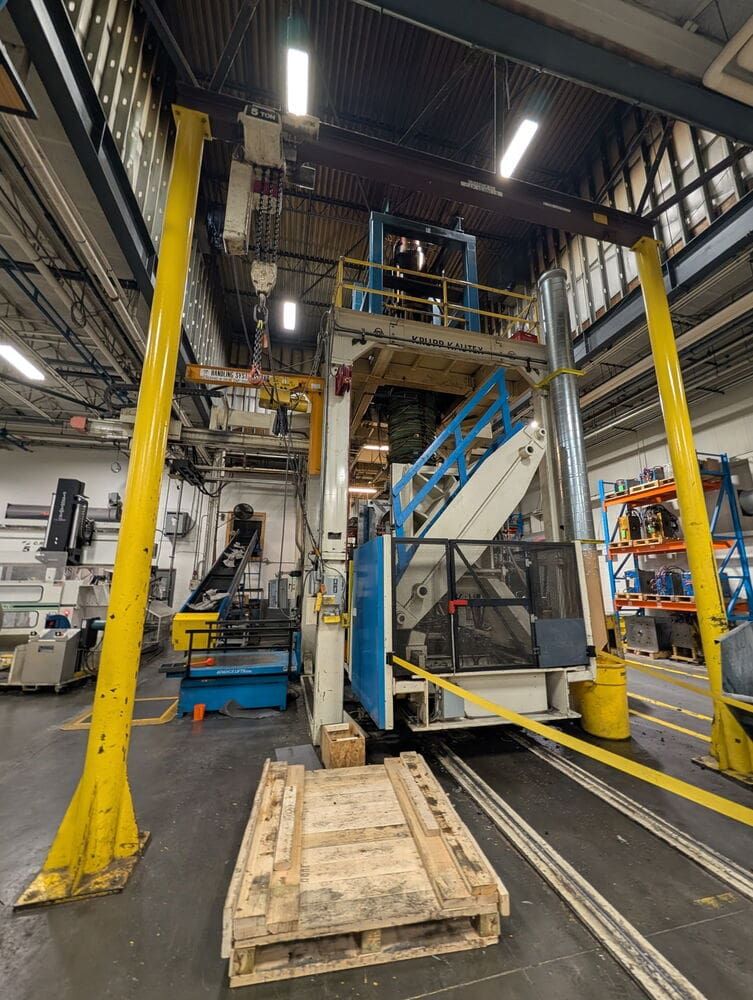

Krupp Kautex CP 241/144

Number of Heads (1) One Head
Shot Size Capacity Ltr/Lbs/Kg 90 L / 150.8 lbs. / 68.4 kg
Die Ranges (mm/in) 200 (7.87") to 600mm (23.62")
Max Die Gap (mm/in) 50mm/1.968"
Head Tooling Sizes (mm/in) 220 (8.66") / 300 (11.81") / 325 (12.79") - All Divergent
Heating Zones (8) Eight
Platen Size (W x L) 59" x 71"
Max Daylight 106"
Min. Daylight 23.62"
Stroke 43"
Clamp Force 144 Ton
Max Mold Weight(s) (lbs.) 11,000 lbs. (2 x 5,500 lbs.)
Closing Speed (in/min) 975 in/min
Platen Feature(s) Platen Magnetics
Extruder Screw Size 150mm (5.9")
Screw Type Modified VBET Screw
Est. Output (HDPE) 1300 lbs/hr
Extruder Capabilities Processing Liqid Color & Strand Pellet Masterbatch Colorants
Controller Beckhoff W/Kautex BlowCommand 4 Software (Upgraded 2015)
Operating System Windows XP Based Operating System

Features
"Custom Head Tool Change Cart" with Small Scissor Lift for Tool Changing
