Küppersbusch FNR 250 LOW-PRESSURE STEAM COOKING KETTLE

REF-2370 KÜPPERSBUSCH FNR 250 LOW-PRESSURE STEAM COOKING KETTLE

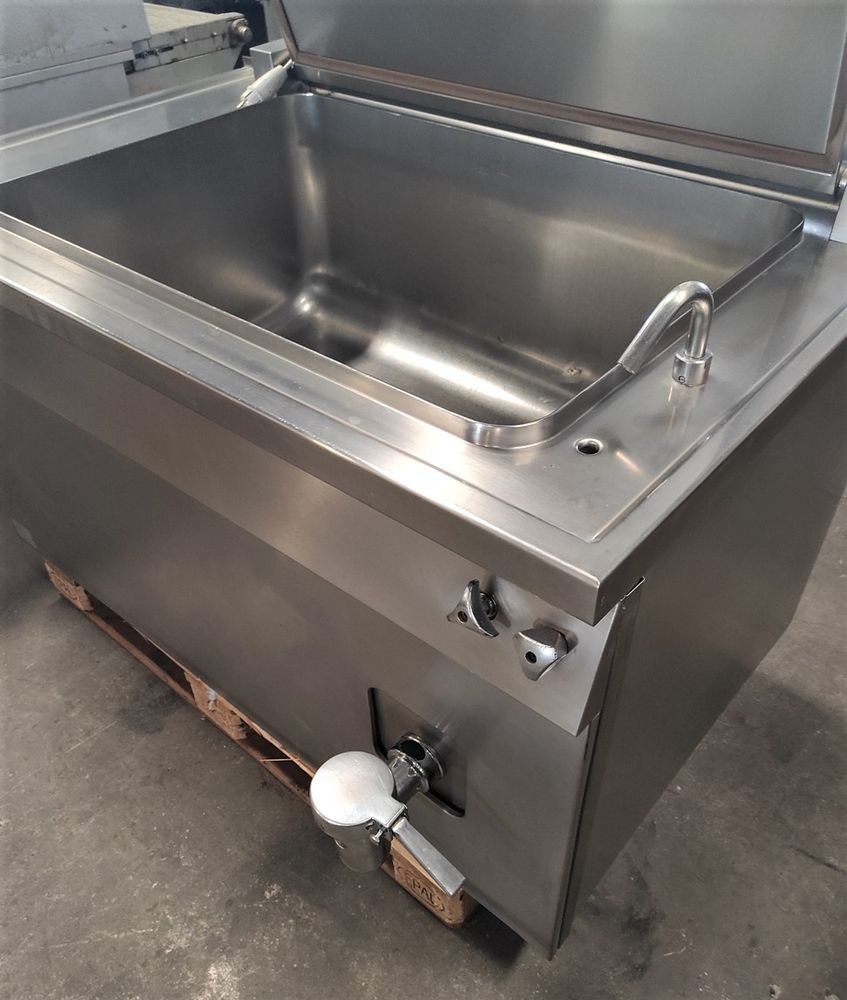

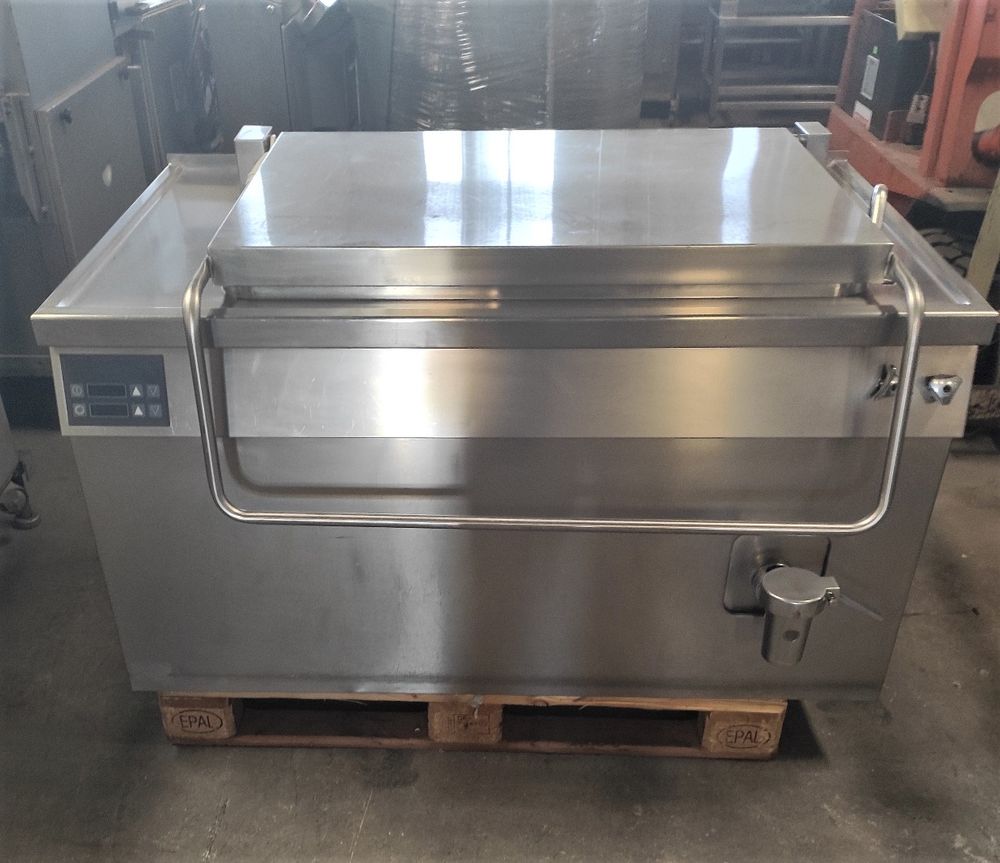

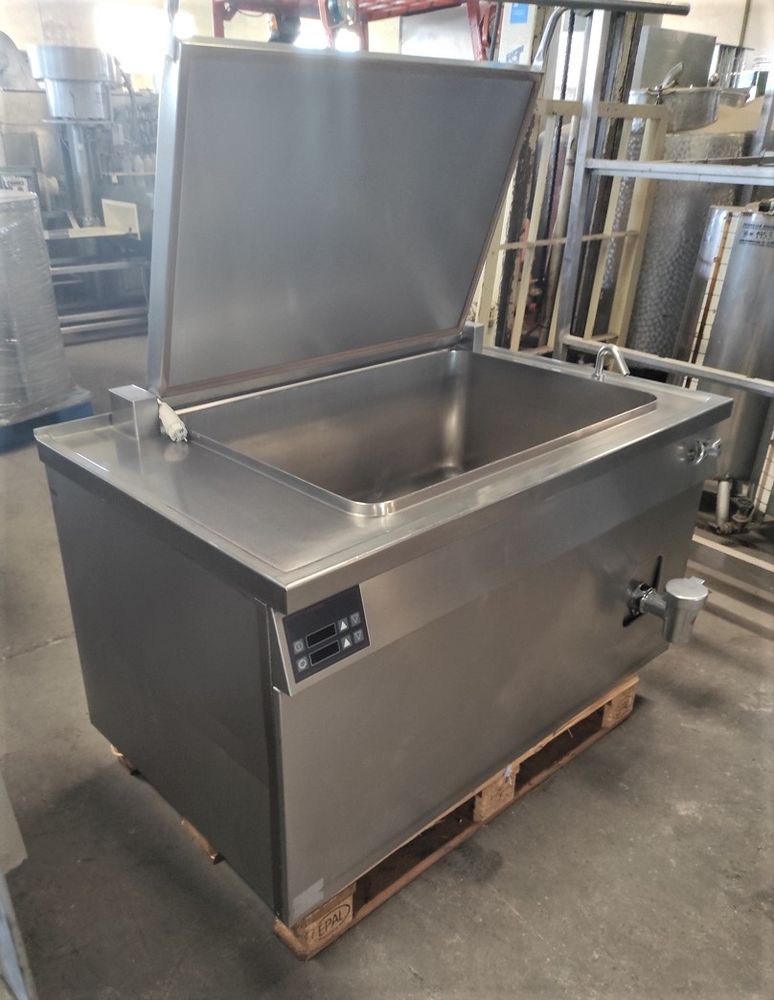

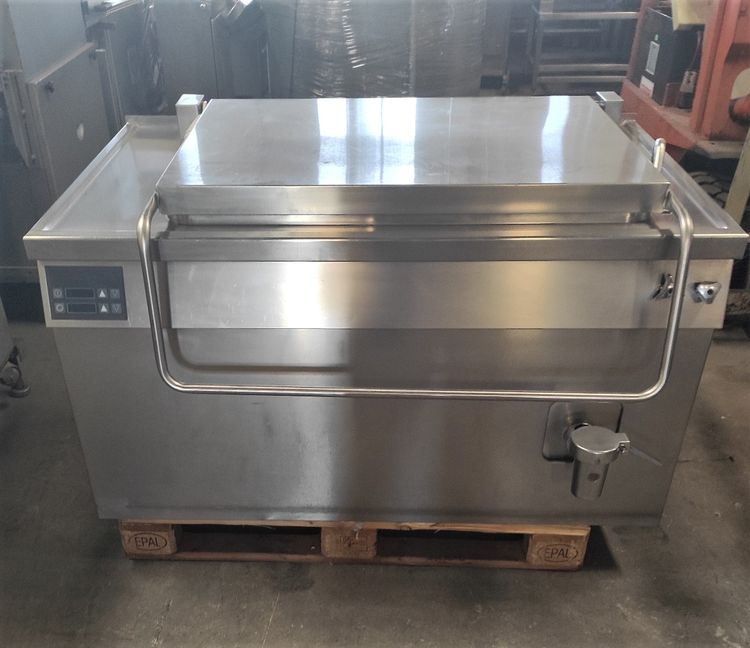

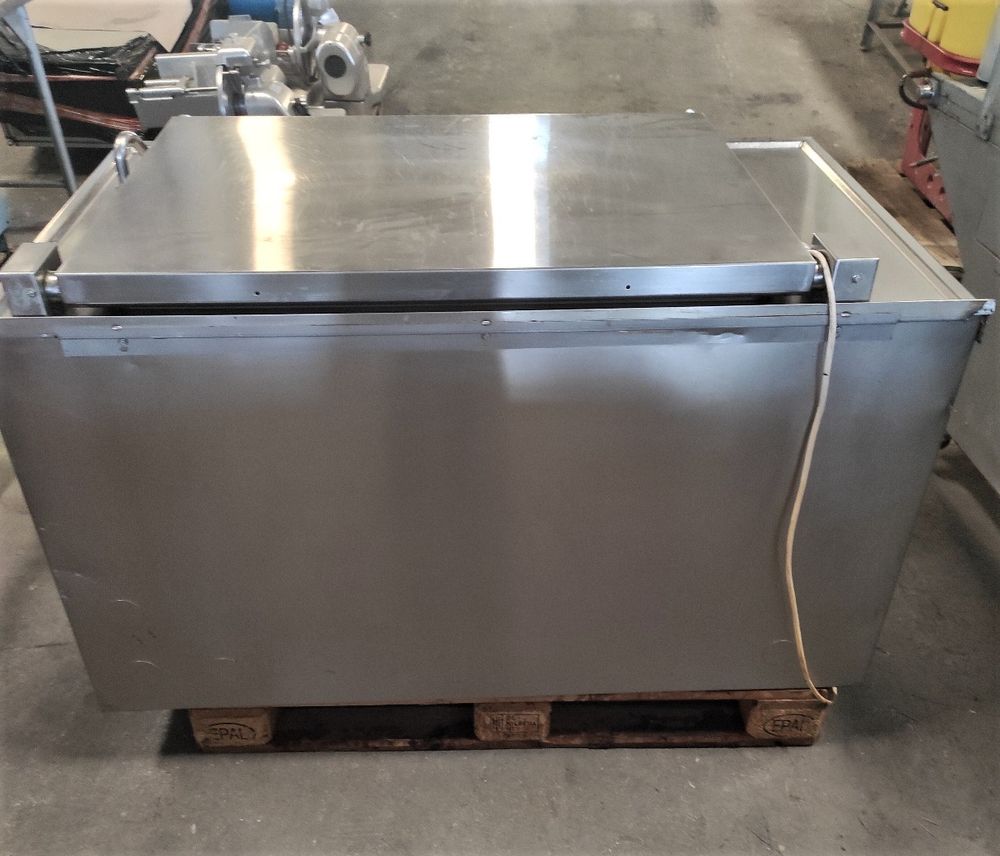

Stainless-steel cooking kettle with indirect heating system by low-pressure steam.

Manufacturer: Küppersbusch
Model: FNR 250

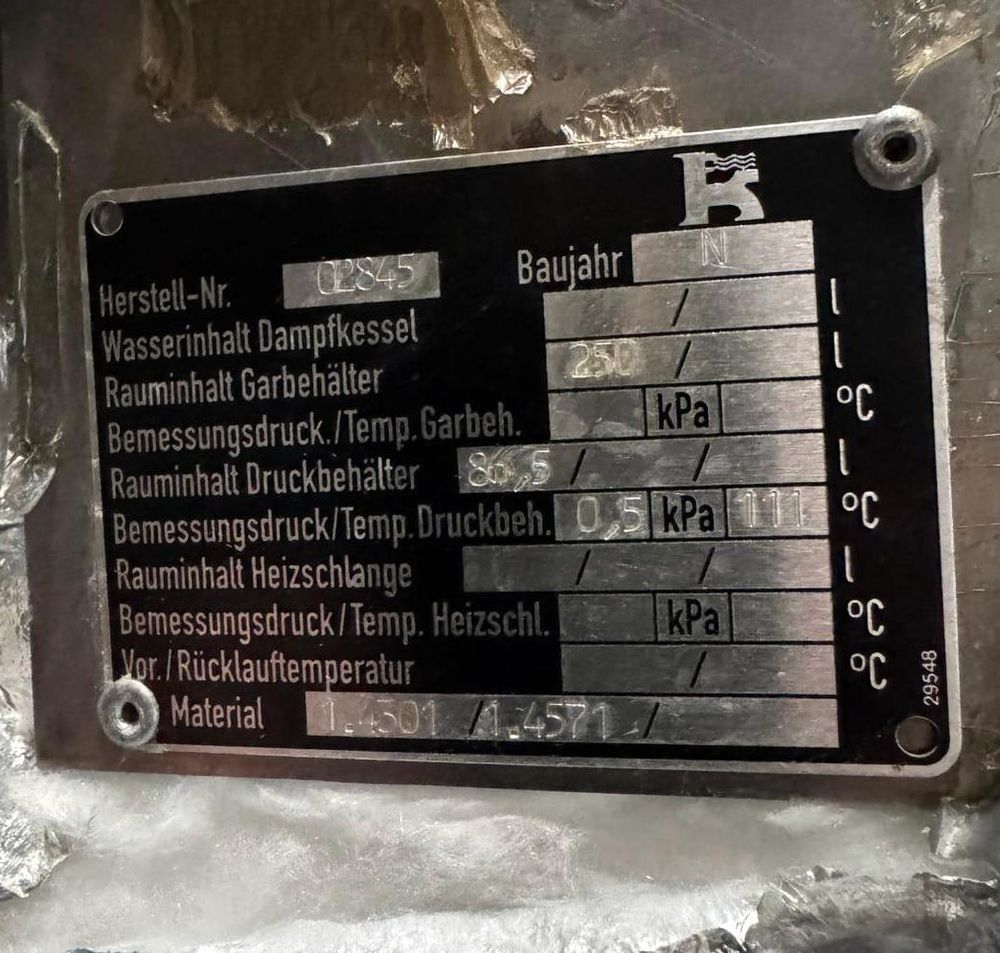

Serial no.: 02845

Cooking pan capacity: 250 litres
Pressure chamber capacity: 86,5 litres
Electrical specifications: 0.1 kW/230 V 1N AC/50-60 Hz/10 A
Low-pressure steam supply: 0.3 – 0.5 bar
Initial cooking time (according to DIN 18855): 33 minutes (0.5 bar pressure)
Pressure chamber max. temperature: 111 °C
Drinking water connections (cold and warm): 1 – 6 bar

Steam heat output: 44 kW
Steam volume: 70 kg/h
Overall heat loss: 10.34 kW
Steam release: 12.94 kg/h

Inside dimensions (mm): 990 x 660 x 450 (WxLxH)
Overall dimensions (mm): 1,400 x 950 x 820 (WxLxH)
