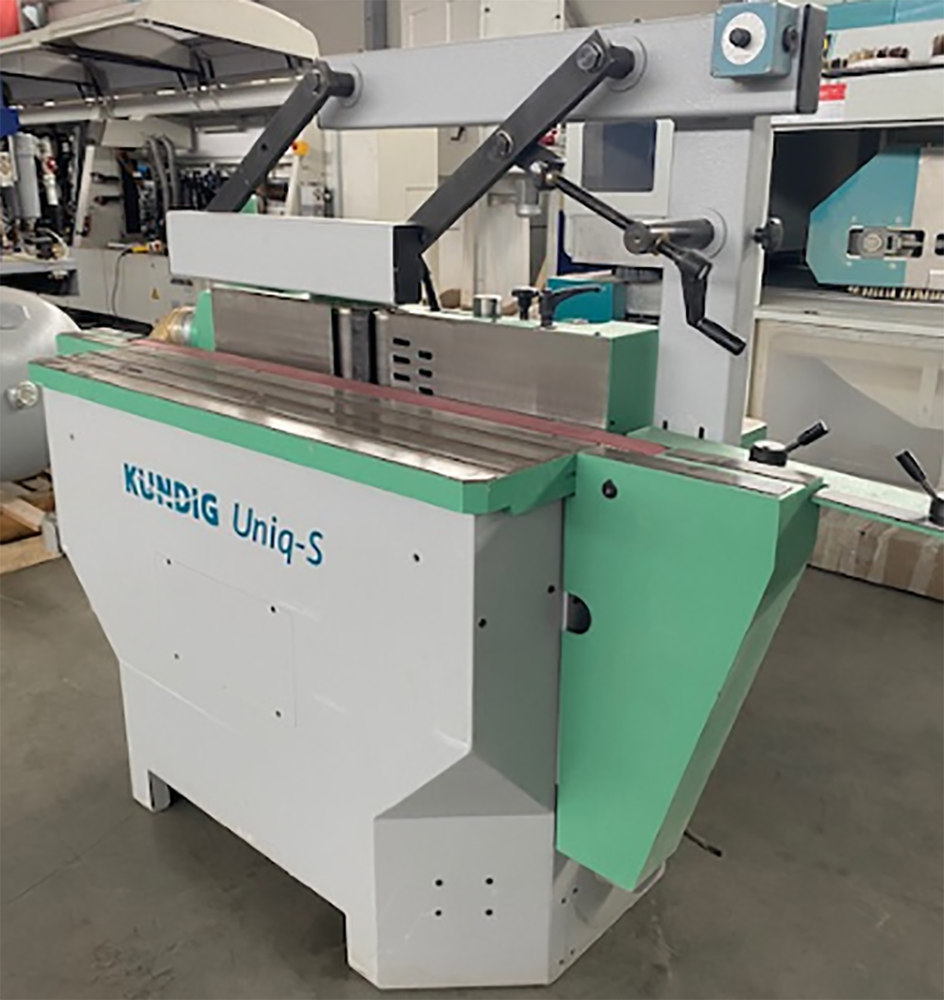

Kundig UNIQ-S

Edge grinding machine
The automatic feed of workpieces is a 50 mm (2") wide conveyor belt (bottom) and an additional 20 mm wide upper roller clamp.
The feed speed is smoothly adjustable from 3 to 15 m/s, the feed motor is 0.55 kW (0.75 HP).
The angle of inclination of the main grinding unit is from 90° to 45°
Sanding belt size: 200 mm x 2000 mm
The oscillation of the abrasive belt is 10 - 90 mm to fully utilize the abrasive belt.
Main motor: 3 kW (4HP), 380 V / 50 Hz, with motor protection switch.
Dust removal is carried out through two pipes ∅ 150 mm; 1300 m3/h

Machine working height: 910 mm
Table dimensions: 320 mm x 1200 mm
Dimensions: 1150 x 800 mm
Total machine weight: 560 kg
