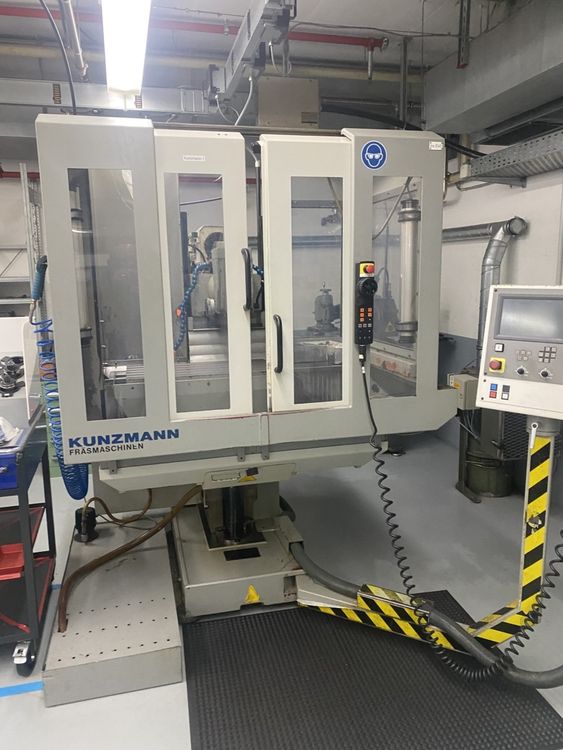

Kunzmann WF 4/3 Variable Speed

X-axis travel: 400 mm
Y-axis travel: 350 mm
Z-axis travel: 400 mm
Heidenhain TNC 310 control
Clamping surface: 650 x 350 mm
Clamping grooves: 5
Slot width: 14 mm
Groove spacing: 63 mm
Max load: 250 kg
Max distance top edge of table to horizontal spindle centre: 540 mm
Max distance table top edge to vertical head bottom edge: 430 mm
Tool holder: SK 40
Horizontal spindle speed range: 5–4500 rpm
Vertical spindle speed range: 5–4500 rpm
Vertical quill stroke: 60 mm
Vertical head swivel range both sides: 90°
Longitudinal and transverse feed range: 0–2000 mm/min
Rapid traverse lengthwise and crosswise: 5000 mm/min
Vertical feed range: 0–2000 mm/min
Vertical rapid traverse: 4000 mm/min
Drive power at 100% ED: 8.0 kW
Drive power at 44% ED (5 min cycle): 9.3 kW
