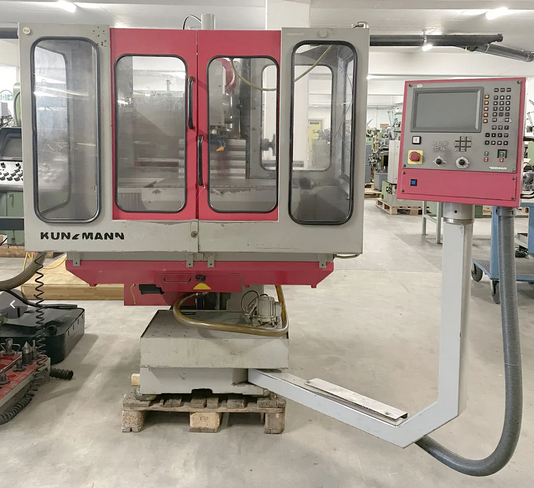

Kunzmann WF 4/3 Vertical 3300 rpm

X Axis Travel: 400 mm
Y Axis Travel: 320 mm
Z Axis Travel: 400 mm
Rapid Traverse X: 4 m/min
Rapid Traverse Y: 4 m/min
Rapid Traverse Z: 3 m/min
HEIDENHAIN TNC 124 CNC Control
Coolant System
Automatic Central Lubrication
Electronic Handheld Control
Mechanical Handwheels
Full Splash Guard
RS-232 Interface
Spindle Speed: 50 – 3300 rpm
Spindle Taper: ISO 40
Spindle Motor Power: 5.5 kW
Vertical Head Swivel: ±90 °
Quill Travel: 60 mm
Feedrate: up to 1000 mm/min
Table Length: 650 mm
Table Width: 350 mm
Number of T-Slots: 5
T-Slot Width: 14 mm
T-Slot Pitch: 63 mm
Maximum Table Load: 250 kg
Distance Spindle to Table: 140 – 540 mm
Voltage: 400 V
Total Power: 15 kVA
Machine Weight: 1300 kg
Machine Length: 2000 mm
Machine Width: 1950 mm
Machine Height: 1900 mm
