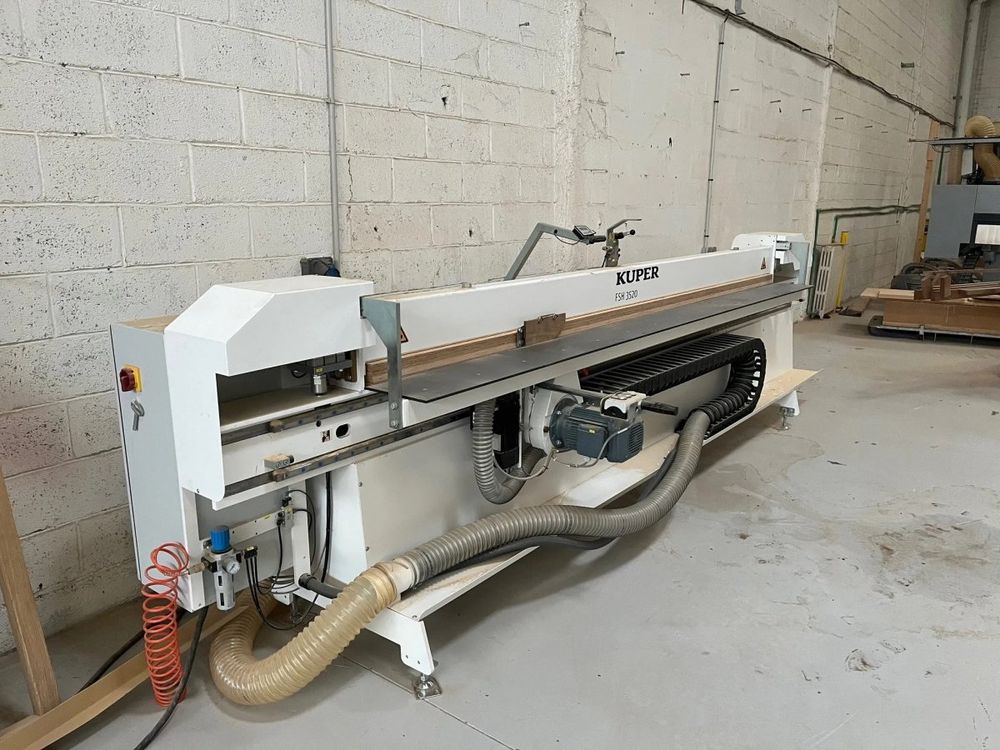

Kuper FSH 3520

Veneer Saw
Condition: Used

Technical Specifications:
CUTTING LENGTH: 3520 MM

Basic Equipment:
- Pneumatic tensioning via two external clamping cylinders
- Saw carriage guidance with two highly precise linear guides
- Vacuum system for connection to a dust collector, sleeve diameter 100 mm
- 1 HM saw blade, diameter 200 mm
- Front support, 250 mm wide, fixedly mounted, manually movable to the planing unit
- Maintenance unit

Opening height: 57 mm
Cutting height for veneer bundles: 32 mm
Three-phase motor: 2.2 kW
Voltage: 230/400 V

Options included:
VENEER FENCE 25 - 625 MM
Adjustable in parallel with precision guidance.
Width adjustment by sliding,
Pneumatically lockable, digital dimension display.
Working area from 25 to 625 mm.

PLANING UNIT
Includes pneumatically mounted jointing blade head, electrically connectable and disconnectable.
Includes device for moving the front worktable.
4 reversible blades 50x12x1.5 mm
SAW BLADE 200x16 Z64
