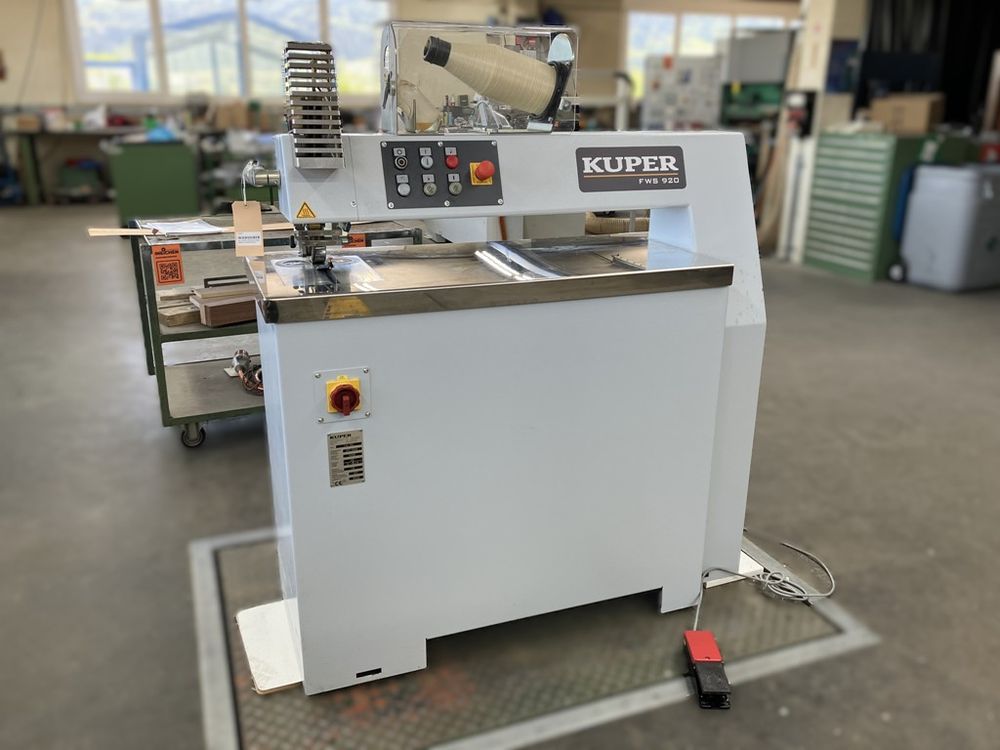

Kuper FWS 920

For joining veneers with thicknesses of  approximately 0.4–2.0 mm.
The machine uses a  special adhesive thread that is applied in a zigzag pattern across  the joint.
High adhesion and tear resistance guarantee tight joints, even with  wavy veneers.
The adhesive thread is turned inwards  during subsequent  pressing, eliminating the need to sand off the adhesive. 

Specific features: 
* torsion-resistant C-frame construction made of steel
*  durable PUR coating 
* stainless steel worktable 
* standard heating system for industrial machines 
* disc discs with tolerance compensation mechanism for  different veneer  thicknesses
* adjustable heating power for stationary and moving operation 
* electrically controlled thread puller 
* fully automatic start/stop function via light switch. 

Technical data: 
Throat depth 920 mm,  feed rate approx. 20 m/min.
Veneer thickness approx. 0.4 – 2.0 mm
Operating voltage 400 volts, 50 Hz, 3-phase
Total connected load approx. 1.1 kVA 
Nominal current 1.55 A
Compressed air connection
Weight approx. 225 kg
External dimensions (L x W x H): 1270 x 620 x 1480 mm 
Workshop tested
