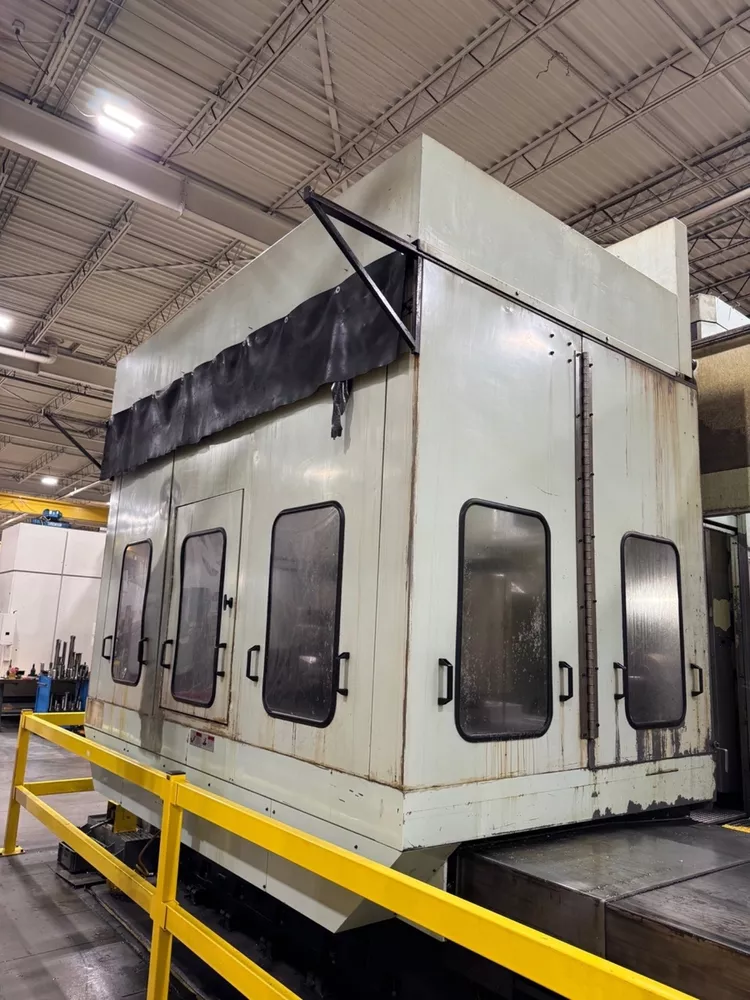

Kuraki KBT-13EA 5.1" 4000 RPM

Table size (L): 70.87" (1800 mm)
Table size (W): 62.99" (1600 mm)
Table load capacity: 26,400 lb (≈ 11975 kg)
Table indexing resolution: 0.001°
X-axis travel: 118.11" (3000 mm)
Y-axis travel: 90.5" (2300 mm)
Z-axis travel: 51.2" (1300 mm)
W-axis travel: 25.6" (650 mm)
Spindle nose to table center: 27.56" – 78.74"
Spindle nose to table top: 0 – 78.74"
Spindle diameter: 5.1"
Spindle taper: #50 CT
Spindle speed: 4000 RPM
Main motor power: 40 hp
Control system: Fanuc Corporation 16I-M CNC color control
ATC capacity: 60 tools
Tool diameter capacity: 4.92" / 9.45"
Maximum tool length: 23.62"
Maximum tool weight: 66 lb
Through-spindle coolant pressure: 1000 PSI
Rigid tapping: Included
Chip conveyor: Included
4th axis NC contouring rotary table: 0.001° resolution
MPG handwheel: Included
Machine guarding: Full high guarding
Machine weight: 81,400 lb (≈ 36900 kg)
Condition: Used
