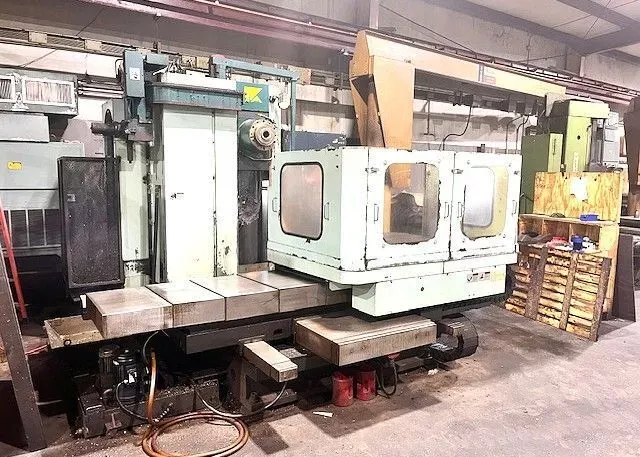

Kuraki KMB 11 A 109.2 mm / 4.33 in 3000 RPM

X-axis travel: 1000.8 mm / 40.00 in
Y-axis travel: 1200 mm / 47.20 in
Z-axis travel: 700 mm / 27.5 in
W-axis travel: 500 mm / 19.68 in
Table length: 1041 mm / 41.00 in
Table width: 939.8 mm / 37.00 in
Table rotation: 0.001°
Built-in contouring rotary table
Control: Fanuc 16M CNC
Spindle speed: 5 – 3000 RPM
Spindle diameter: 109.2 mm / 4.33 in
Spindle taper: BT 50
Spindle motor power: 18.6 kW / 25 HP
Max. spindle speed: 1500 RPM
Max. workpiece weight: 1996.4 kg / 4392 lb
Automatic tool changer: 40 stations
Machine dimensions (L×W×H): 4400 × 4500 × 3600 mm (173" × 183" × 141.7")
Machine weight: 13820.3 kg / 30404 lb

Features/Equipment
Fanuc 16M CNC control with options
Built-in rotary table
40-station automatic tool changer
Partial splash enclosure
Machine fully installed for inspection
