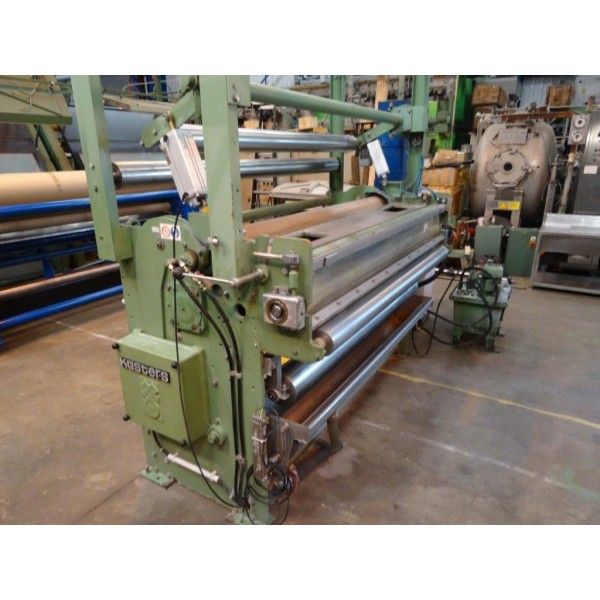

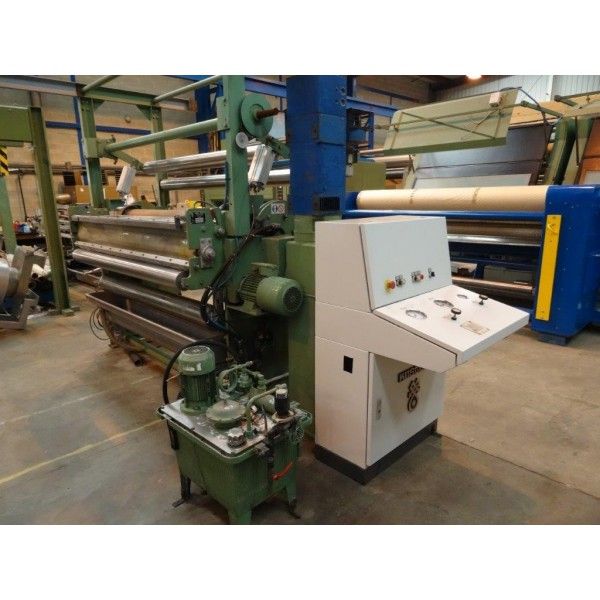

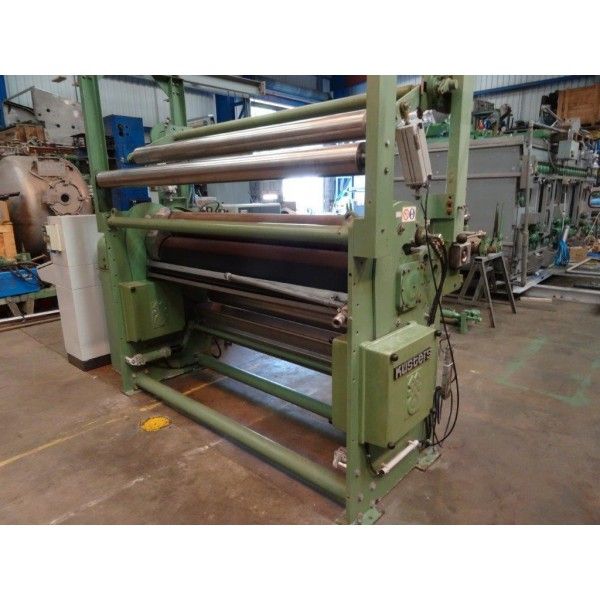

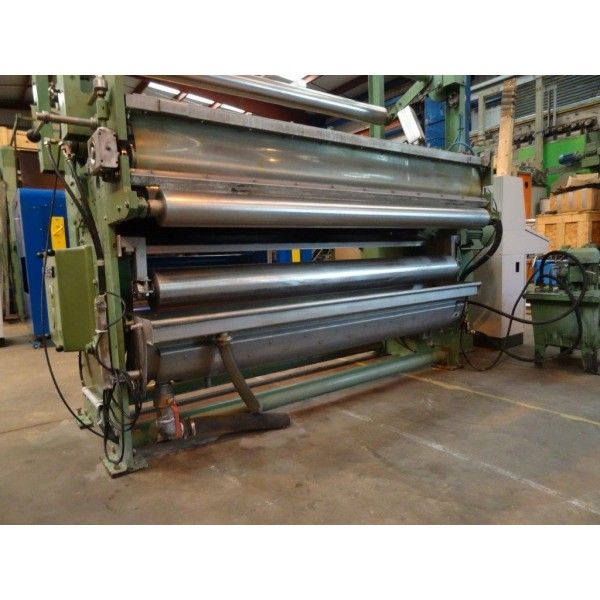

Kusters 222.58 200 Cm Impregnation padder

Ref : 2786628-1-AW

Condition : Used

Manufacturer : Kusters

Model : 222.58

Width : 200 Cm

Short Description : Impregnation padder

Year(s) : 1999

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

FULLY RE-CONDITIONED KUSTER - IMPREGNATING SQUEEZE PADDER
TYPE 222.58 (ORIGINAL YEAR 1999
ROLLER WIDTH MM.2000
ENTRY FRAME WITH ADJUSTABLE TENSIONING DEVICE. SS PATH ROLLERS
1 ADJUSTABLE BOW ROLLER STAINLESS STEEL AISI 304 IMPREGNATING TANK
WITH PNEUMATIC LIFT AND LOWER, SPRAY WASHING PIPES. TWO BOWL SQUEEZE
ONE (SWIMMING ROLL) - DIAM.MM.220
NEW RUBBER COVERING 80 SHORE HARDNESS
ONE BACKING BOWL - DIA.MM.270
NEW RUBBER COVERING 90 SHORE HARDNESS
MAX PRESSURE NIP 50 NKG/CM LINEAR (TOTAL KG. 12.000)
NEW A/C MOTOR & INVERTER WITH VARIABLE SPEED FROM 0 TO 90 MT/MIN.
FINE TRIM DANCING ROLLER COMPENSATOR, PNEUMATICALLY CONTROLLED
TENSION. MAIN CONTROL PANEL WITH OPERATORS REMOTE STATION.
