Kusters Dyeing Range 180 Cm

Ref : 501233-1-AW
Condition : Used
Manufacturer : Kusters
Model : Dyeing Range
Width : 180 Cm
Year(s) : 1991, 1996
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 26 Apr. 2019

1 x KUESTERS,KREFELD, Kontinue-Farbanlage, Dyeing Range, 1991 / 1996

Type of control conventional
Working width 1800 mm
Roll surface width 2000 mm
Drive side Rechts
Operting side rechts
Speed 60 m/min

Additional information

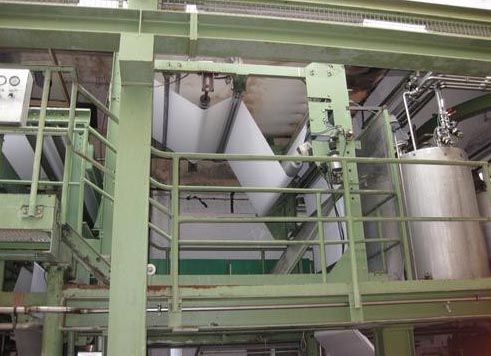

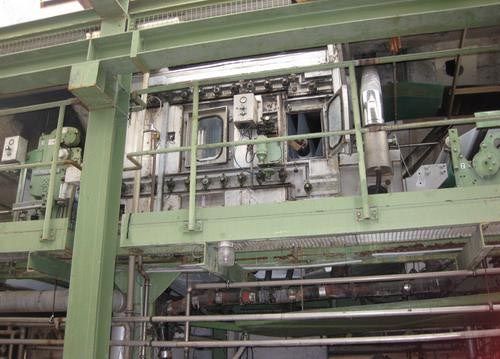

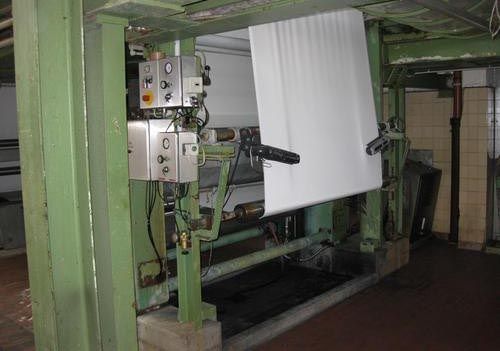

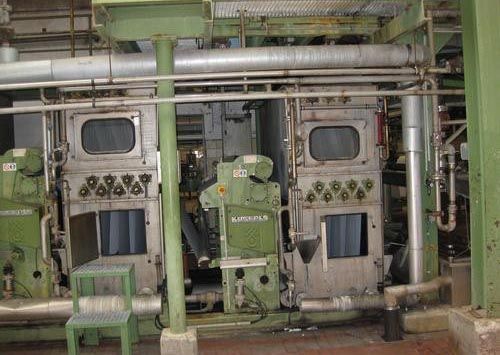

• Continuous dyeing range (PAD-Steam), consisting of:
1) Inlet with cloth accumulator
2) Dyeing padder, type 222.11/1800
3) Chemical padder
4) Roll steamer, capacity: 30 m, with S-roll squeezer
5) Washing machine, roller vat capacity: 18 m with squeezer 2 tons
6) Washing machine, roller vat capacity: 18 m with squeezer 2 tons
7) 2 roller vats, double feeder for cloth, capacity: each, approx. 20 m, with squeezer 2 tons
8) High efficiency washing machine - meander with S-roll squeezer 10 tons
9) Outlet with cloth accumulator and big-batch-winder

(The drive system should be renewed).
