Autefa, Fehrer, Fleissner, Kusters, Mahr, Reifenhauser Filament needle punching non-woven line (Polypropylen)

Complete line for production of non-woven ranging from 100 to 500 g/m² for roofing, automotive, packaging, agro and geotextiles.
Net width (trimmed) max. 5050mm, option to reduce width to min. 2600 mm.
Maximum production capacity: 1.200 Kg/hour, average running is gross 750 tons/month depending on g/m² mix production and width selected.
Filament: 9-14 dtex. Max. process speed: 30m/min. Raw material: polypropylene 10 - 30 MFI
8 000 to/a
40 - 80 Mio m²/a
100 - 500 gr/m²
width : 2,6 - 5m
running rate : 1 200 kg/h

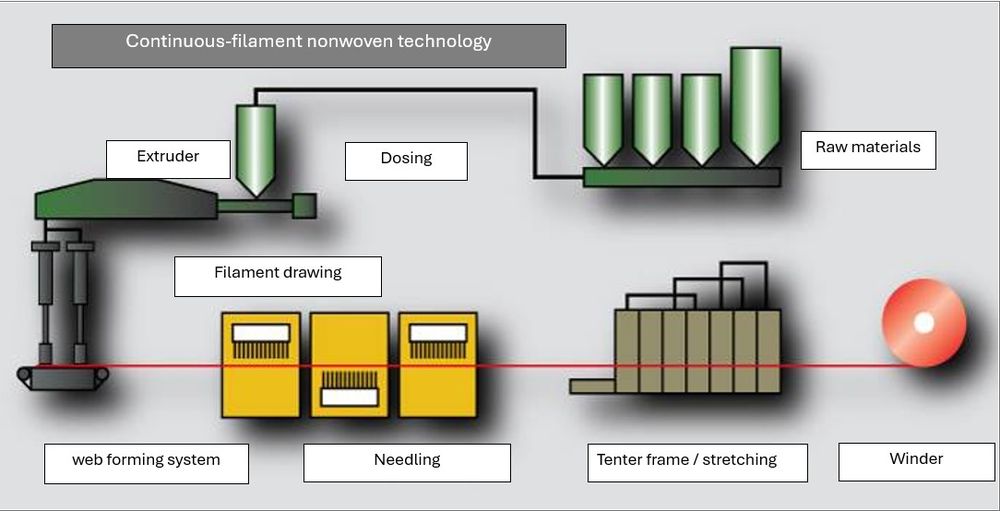

Composed of :

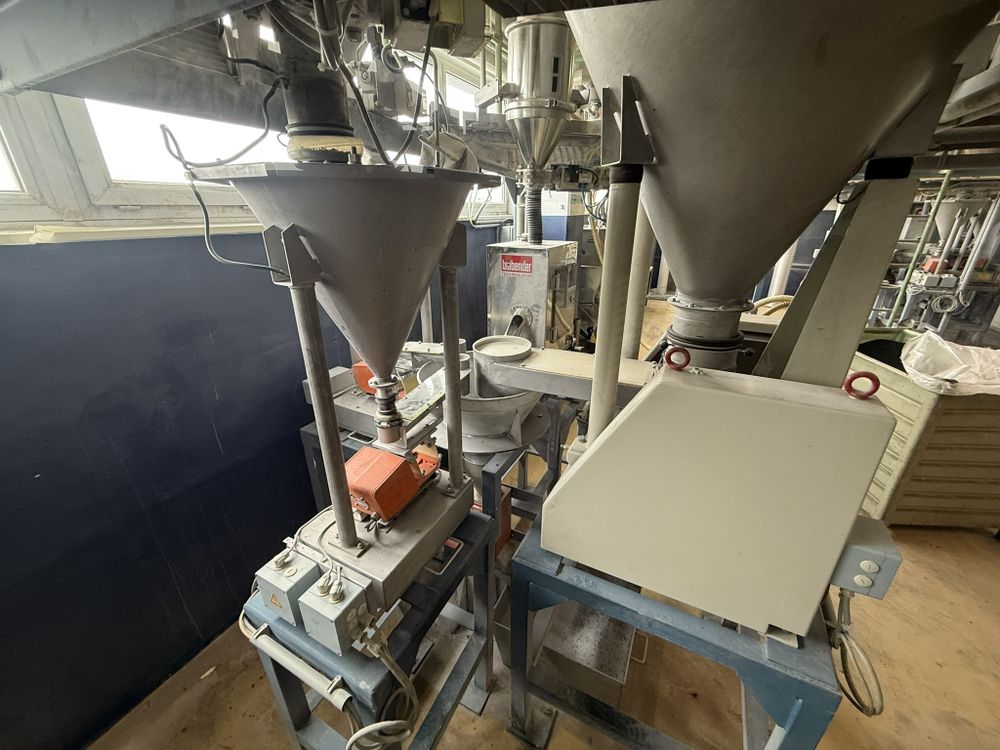

2 x Brabender, Schenk Gravimetric dosing, year 2002/2013
2 x Meyer PP-Dryer, year 1984

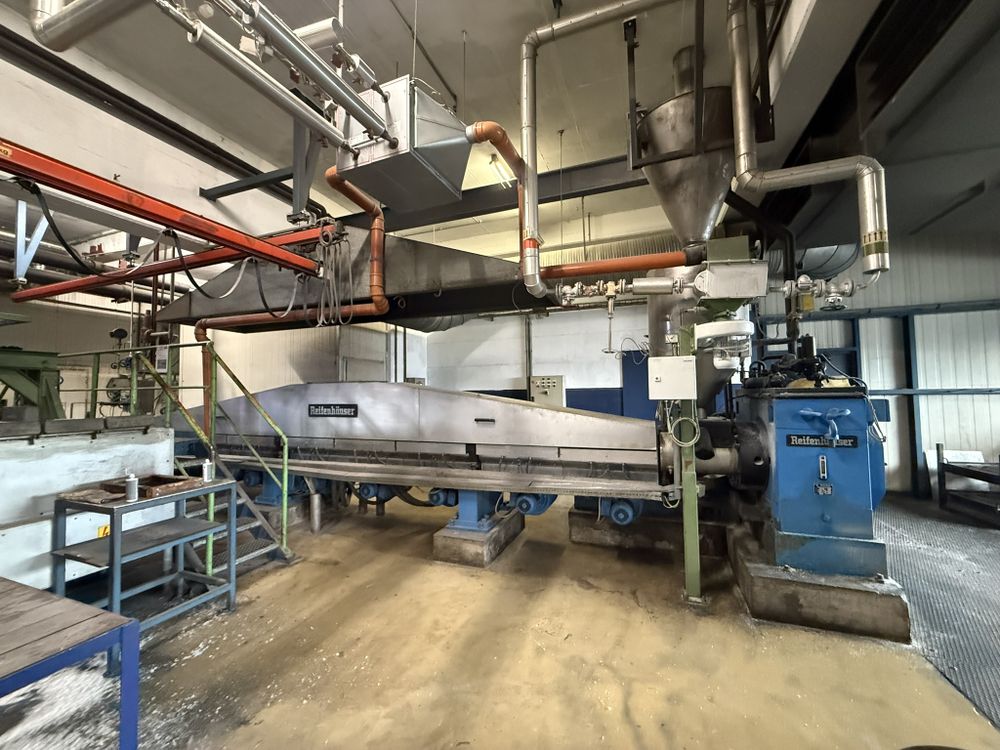

2 x Reifenhäuser Extruders, year 1989

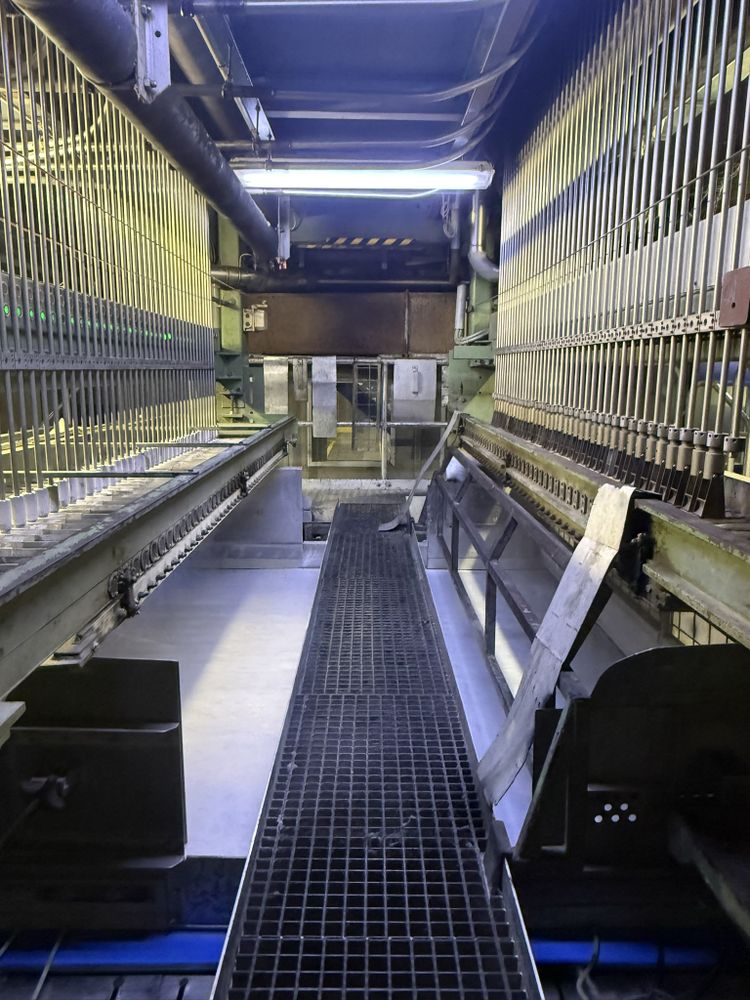

2 x Automatik/Mahr Spinning systems & Diphyl system, year 1984
2 x Allibe/Oilgear web forming, , year 1984
1 x Küsters Calander,
2 x Hansa Avivage stations

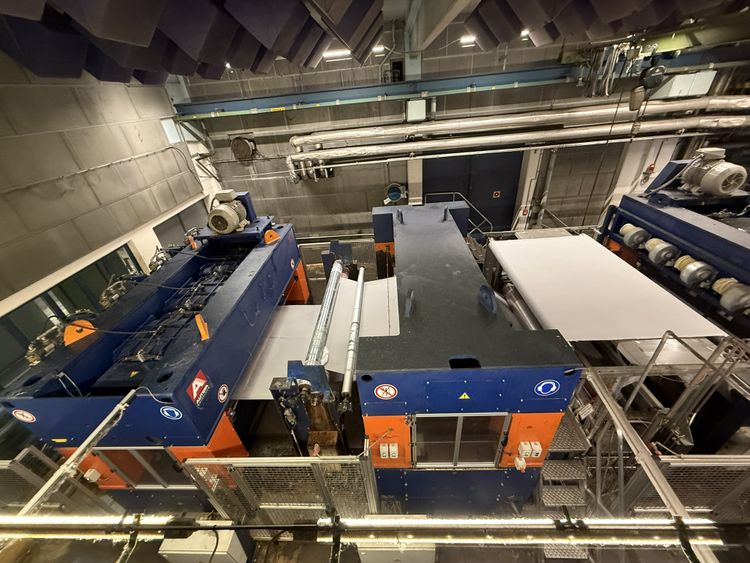

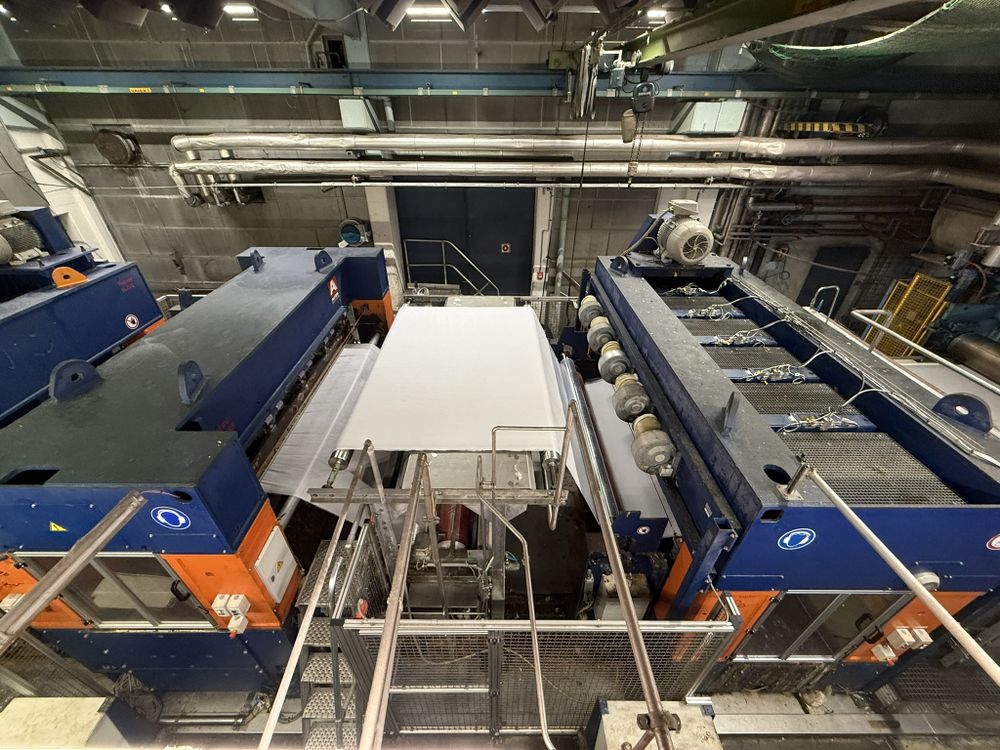

3 x Fehrer Autefa needle looms, year 1016, 2018, 2022
1 x Zöllig J-Box, 1984

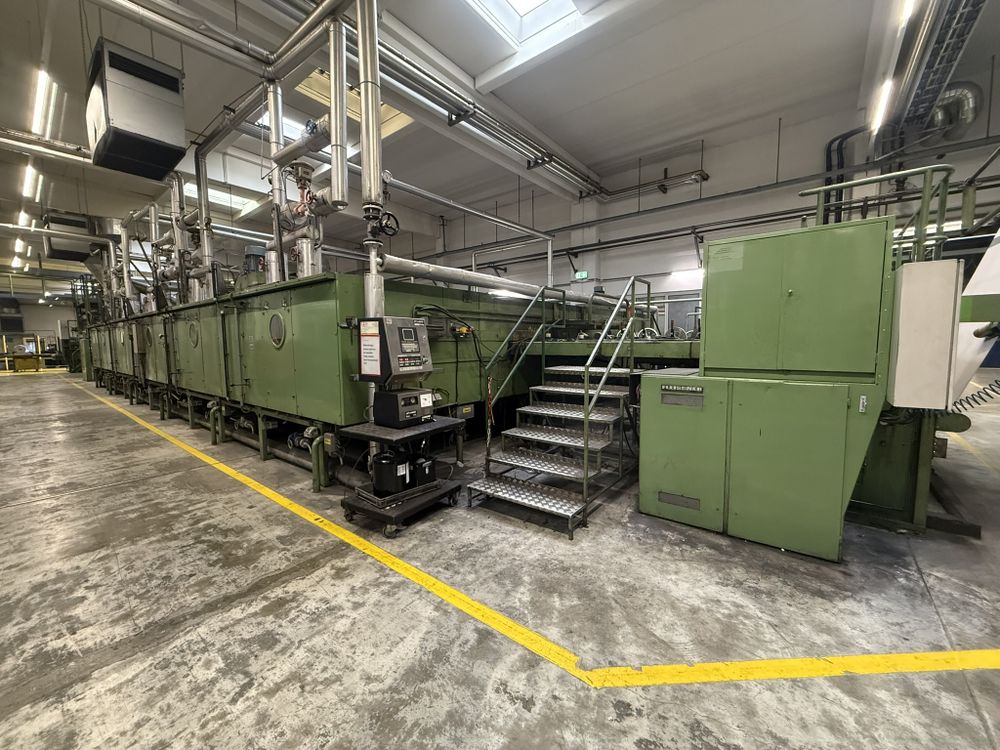

1 x Fleissner Stretching frame, year 1984
1 x Bastian Winder & J-Box, year 1984
2 x Erhard + Leimer edge trimming
1 x Erhard + Leimer MD cutting
1 x Bastian Winder

More photos upon request
