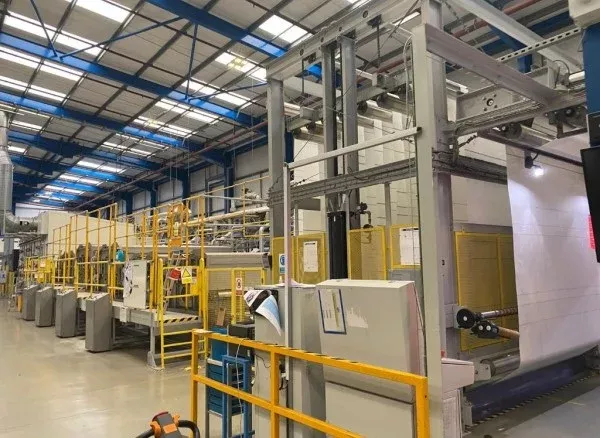

Kusters Washing Range

width 3300 mm
maximum material width: 3.3 meters (opw) roll surface:
100% nylon and polyester, double-layer weave (350 and 450 dtex opw) max.
roll dimensions: 1 meter outer diameter and 2,800 kg, material weights: 480-550 g/m².

Merrow cross-stitch sewing machine
high infeed frame with E+L slat centering guide
accumulator with 60 m of fabric capacity
washing cassette no. 1 with indirect steam, five driven upper rollers, 30 m of fabric capacity, double pass
washing cassette no. 2 with indirect steam, five powered upper rollers, 30 m of fabric capacity, a 5-ton double-tank padder
washing box no. 3 direct steam to the suction slots for the powered upper rollers, 21 m of fabric capacity
a 5-ton double-tank padder
washing booth no. 4 direct steam to the suction slots for the powered upper rollers, 21 m of fabric capacity
washing booth no. 5 direct steam, five powered upper rollers, 30 m of fabric capacity, a 5-ton double-tank padder

exit from the washing area to the suction slots, find the trim compensator, 60 m of fabric accumulator.
