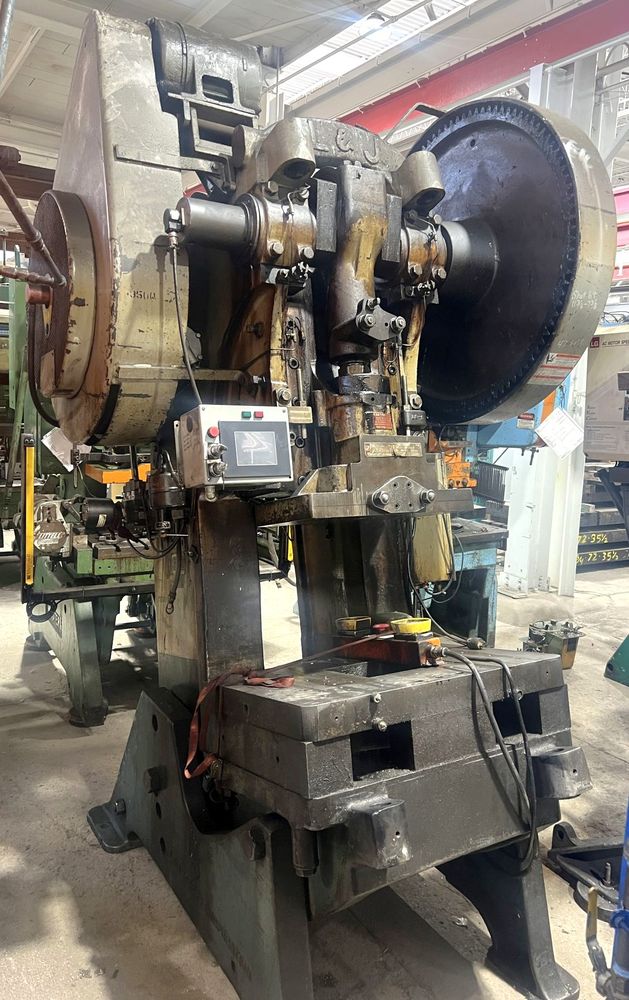

L AND J 80 80 ton

Press force 80 ton
Bed area right to left 36 in
Stroke 7 in
Max shut height to bed 20 in
Ram adjustment 4 in
Bed area 36 x 26 in
Bolster plate 36 x 26 in
Bolster thickness 3.375 in
Riser blocks 5.125 in
Ram area 24 x 17 in
Speed approx. 30-60 spm
Floor to bed height 36 in
Distance between uprights 16.5 in
Throat 14 in
Air clutch L and J air clutch and brake
Press controls Koyo Direct Logic 205 controller
Electric motor approx. 10 HP
Electric motor approx. 33 / 16.5 amps
Approx. dimensions 70 x 80 x 114 in
Approx. weight 16700 lbs
Touchscreen display
48 lbs psi minimum for ram counterbalances
Add 5 lbs per 100 lbs die weight
Do not adjust ram below 16 in shut height
Condition Very good
Single point press
