L&J L and J 60 Press 60 TONS
Ref :
2718788-3-CP
Condition :
Used
Manufacturer :
L&J
Model :
L and J 60 Press
Pressure :
60 TONS
Year(s) :
1966
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)

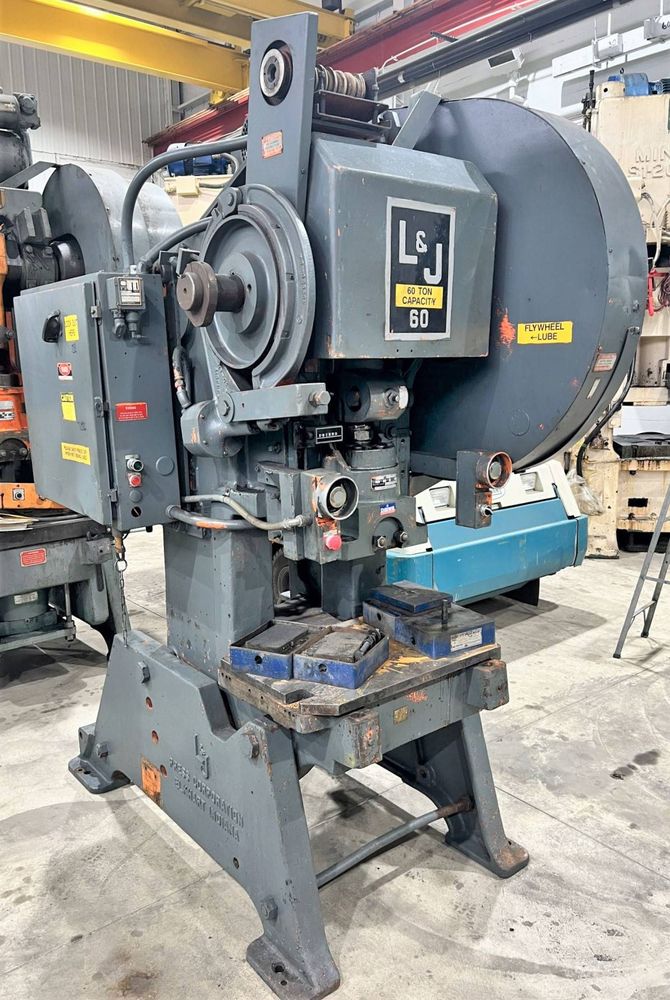

L and J 60 Press
Year: 1966
CAPACITY 60 TONS
STROKE 2″
MAX. SHUT HEIGHT TO BED 13.25″
RAM ADJUSTMENT 3″
BED AREA 32″ X 18″ (RL X FB)
BOSLTER PLATE 31″ X 19.5″ (RL X FB) X 1.1″ THICK SOLID PLATE
RAM AREA 14″ X 12.5″ (RL X FB)
SPEED APPROX. 105 SPM – MAY BE FASTER
FLOOR TO BED 31″
DISTANCE BETWEEN UPRIGHTS 13″
THROAT 10″
CLUTCH l AND J AIR CLUTCH AND BRAKE
PRESS CONTROLS POTTER & BRUMFIELD AND ALLEN-BRADLEY RELAY LOGIC CONTROLLER
ELECTRIC MOTOR 7.5 HP 230/460V-3-60 MOTOR | 20.4 / 10.2 AMPS
APPROX. DIMENSIONS 63″ X 77″ (RL X FB) X 105″ HIGH
APPROX. WEIGHT 10,000 LBS.
