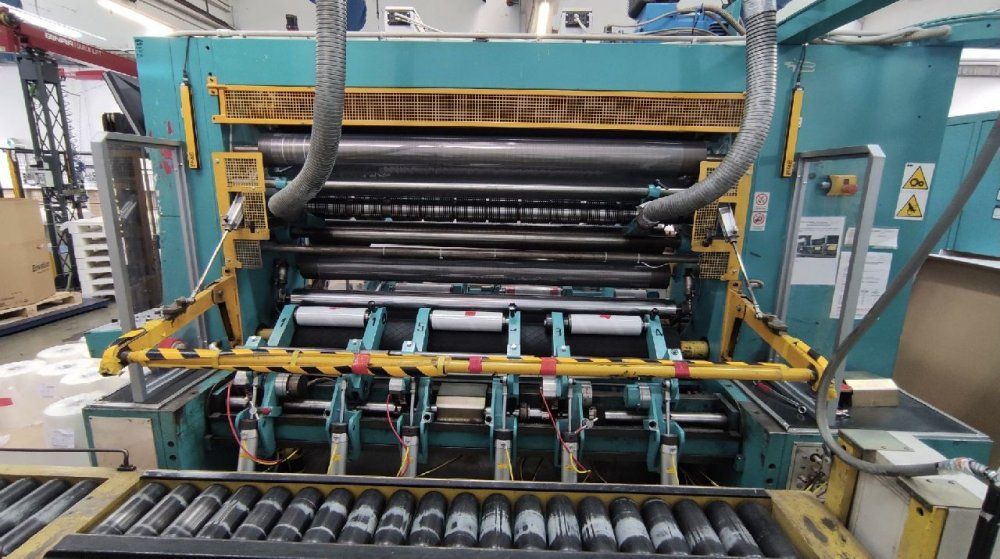

Laem System Slitter rewinder 2000 mm

Overhaul/renovation IR detector edge guide with adjustable head for web edge reading. (FIFE MAXXCESS – Retrofit 2025
Working width (mm) 2000
Speed 400m/min
Unwinder type shaftless unwinder with mechanical expandable chucks and hydraulic lift of the loading arms
Max diameter reel unwinder 1200
Rewinder type Two drum surface winder
Max diameter reel rewinder 600
Rewinder description : 6 rewinding stations composed each one of a couple of adjustable arms pneumatically controlled. (+ 1 couple of additional spare arms)
Min slit width 180mm
Knives : 7 single circular blades with pneumatic insertion mounted on a crossbar with linear guide
1 Group of Multiple counter knife mounted on a motorized shaft (fixing dowels with Allen key tool)
1 Safety optical barrier (Laserscan) to stop machine when entering at production speed.
1 Safety optical barrier to stop machine when entering at production speed in the nip-rolls area
New CUTTING System (DELSAR Lame) installed in 2022 with excellent and sharp cut and easy/quick set-up in job change-over

100% Inspection Camera System (PrintStar/SMASH by ISRAVISION) for transparent and printed film equipped with 2 B/W
Linear Camera and fluorescent tube for back-illumination with dedicated software
(PrintStar/SMASH) for automatic defect position identification and a remote monitor above the control panel for operator defect view.
