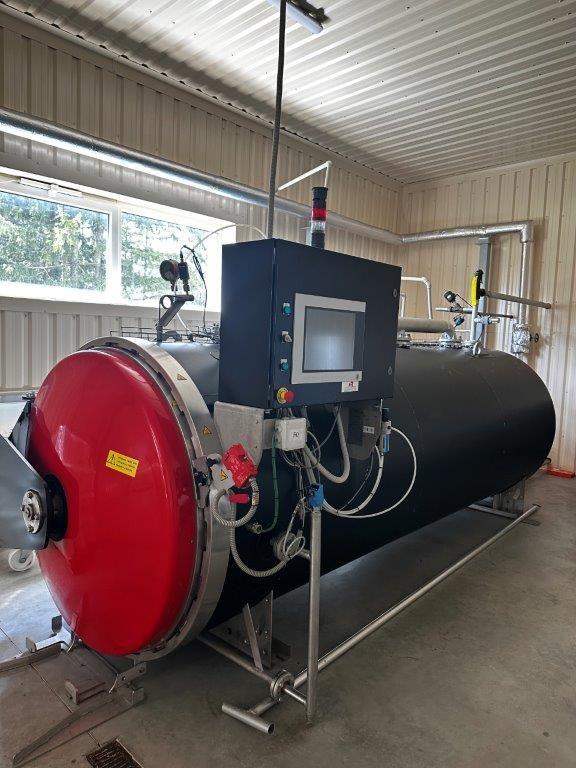

Lagarde 2B E autoclave 5490 Litres

«STATIC» RETORTS - ø 1300 MM

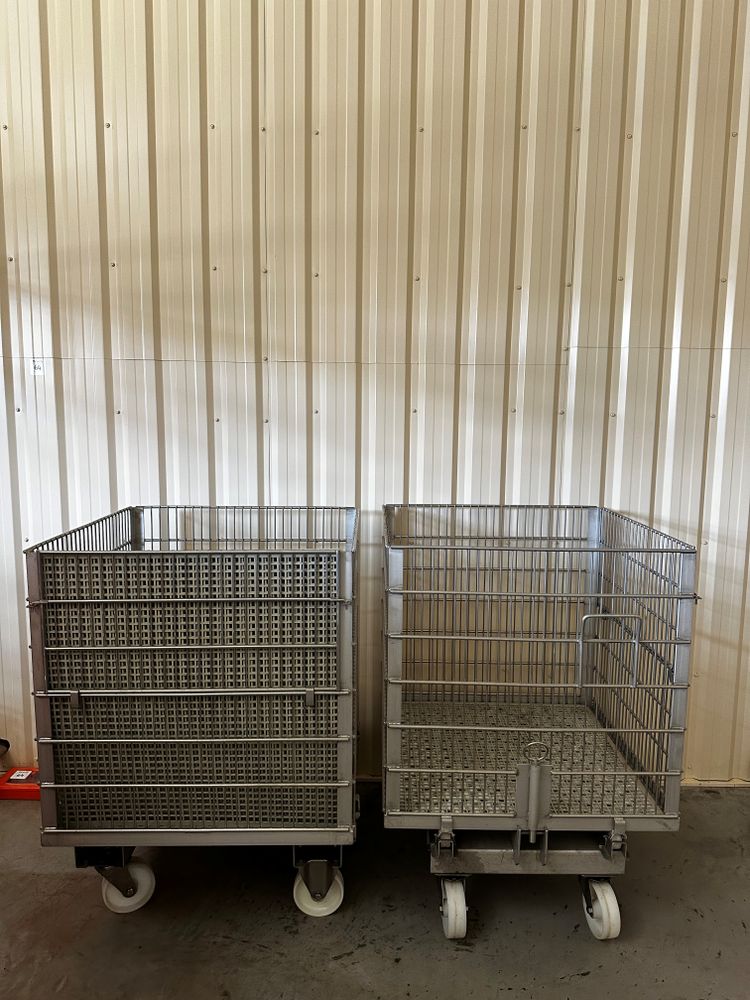

Type: 4 baskets
Volume: 5490 Litres
Installed but never used.


The autoclave includes :
- 1 Horizontal Shell diam. 1300 mm, standing on 2 legs

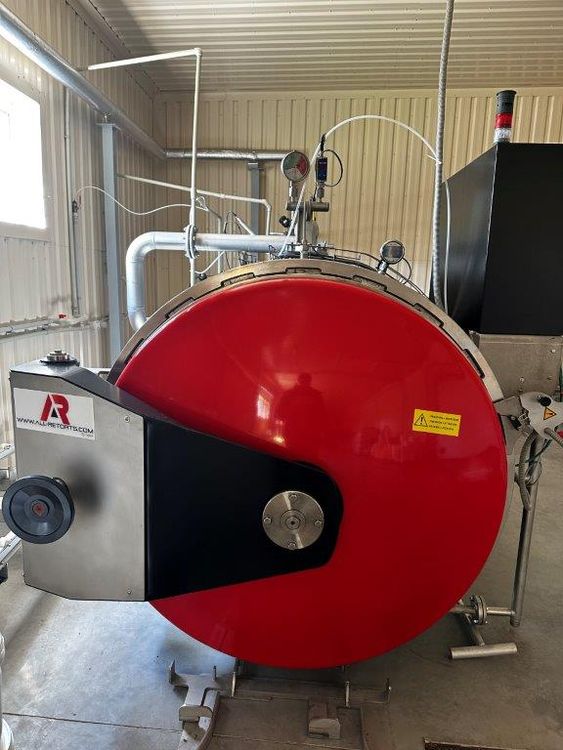

- 1 Door with "MANUAL" side hinged. Rotating locking and unlocking of the cover is achieved by a pinion/rack system with a handling wheel. The door is also equipped with a cam safety device. The seal is provided by a gasket driven by compressed air. The door hinge with adjustment system is provided for an opening at LEFT standard, for an operator positioned in front of the autoclave.
- 1 ramp for injection and distribution of steam.
- 1 water suction with a filter plate.
- 1 ramp and water distribution on the baskets with spray nozzles.

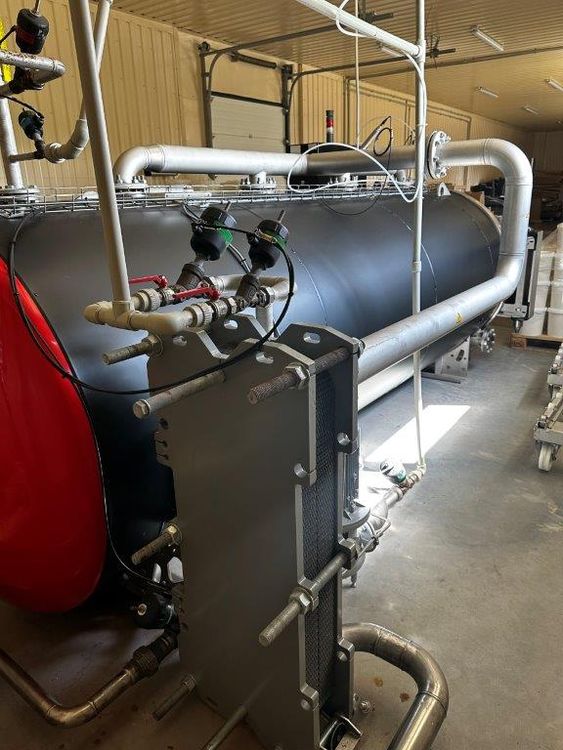

- 1 Set of automatic valves for heating functions – cooling – pressure – regulating – draining, etc.
- 2 Rails for receiving and guiding baskets.
- 1 Black Alu protection on the cylindrical part of the body.
- Technical files and manuals on www.all-retorts.com
- Translation Technical files and manuals (excluding the following 3 common
languages: English, Spanish, French any other version requested by the client will
be invoiced as an option).
- Minimum Service Pressure : 0 Relative Bar
- Maximum service pressure : 5 relative Bar
- Maximum operating temperature 158°C
- Voltage : 400 Volts
- Fréquency : 50 Hz
- Regulations of construction : CODAP 2010 - D. E. S. P 2014/68/UE
- Building materials Body, Internal Design, Rail, Steam Ramp, INOX 304 Exterior Piping

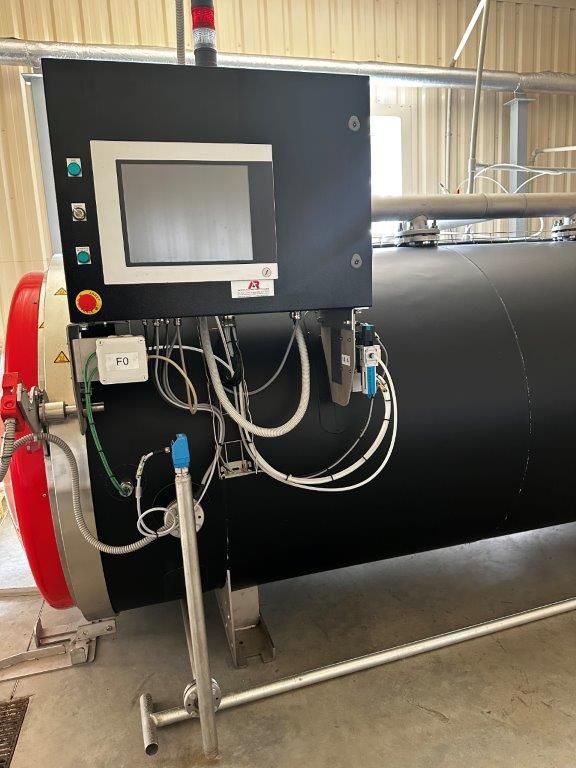

- Painted steel control and power panel located on the right side
- Valve body, valve, pump(s) : CAST IRON / BRONZE
- Arm of door : STEEL PAINTED color BLACK
