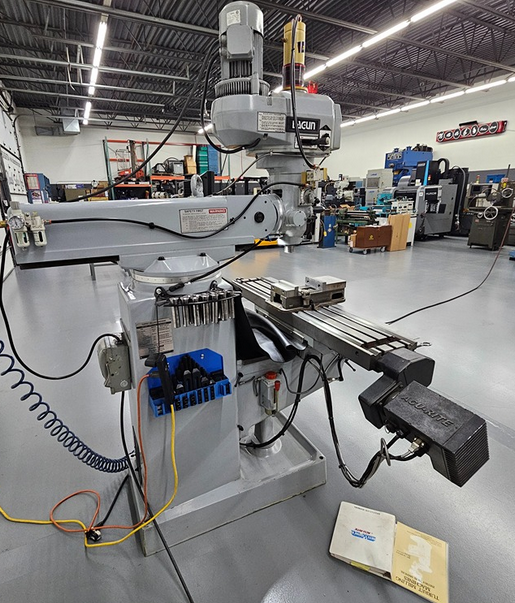

Lagun FTV-2 CNC Vertical 4250 RPM

X Axis Travel: 33"
Y Axis Travel: 16"
Programmable Z Axis Travel: 5"
Quill Travel: 5"
Knee Travel: 22-3/16"
Control: Acu-Rite Millpower 2
SENC 150 Scale on Quill
Spindle Speed: 55–4250 RPM Variable
Spindle Motor: 3 HP
Spindle Taper: R8
Spindle to Table Distance: 18"
Spindle Center to Column Distance: 5" – 27"
Table Size: 10" x 50"
Maxi Torque-Rite Power Draw Bar
Overarm Ram Adjustment: 22-3/16" Manual
Head Swivel: ±90°
Head Tilt: ±45°
Voltage: 220–230 / 380–440 V
Phase: 3 Phase
Weight: 3,000 lbs
Dimensions: 72" x 72" x 90"
