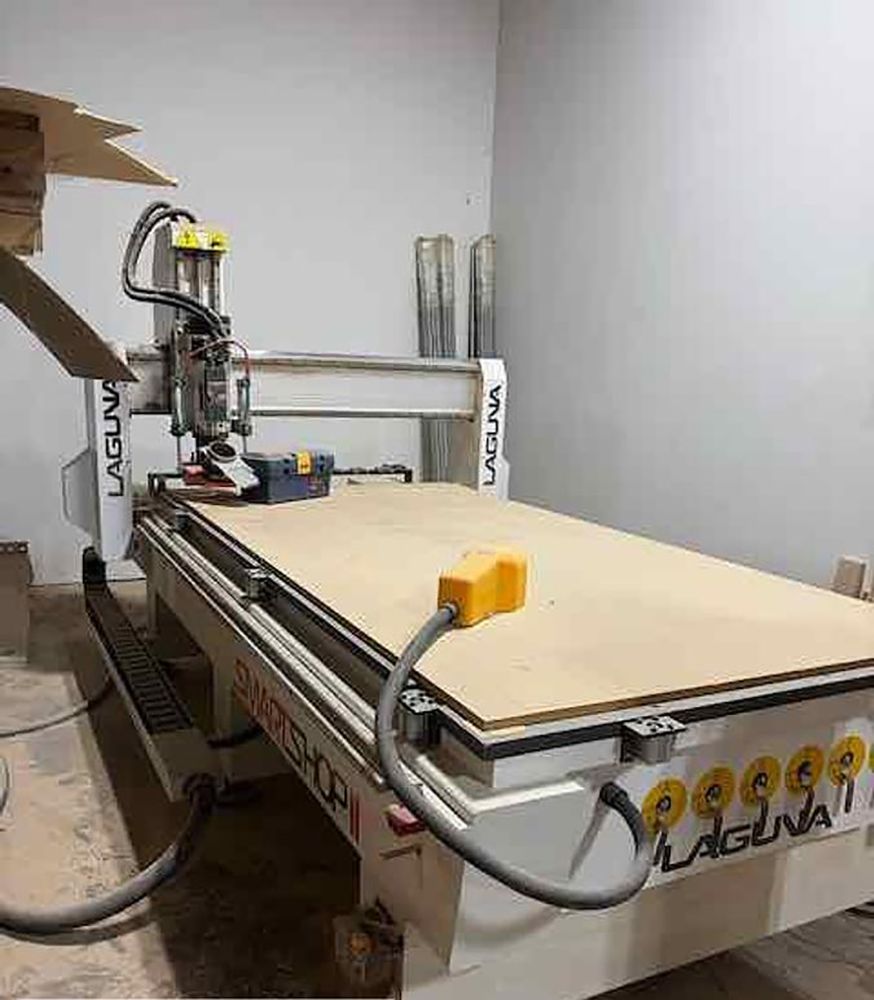

Laguna Smartshop II Pro

4 X 8 CNC ROUTER (MCNC SS 48X96 ATC)
4' X 8' CUTTING AREA
11 HP HSD ISO-30 ATC ELECTROSPINDLE (CERAMIC BEARINGS),
208-230V, 3 PHASE (24,000RPM)
EIGHT (8) POSITION AUTOMATIC TOOL CHANGER (4 TOOL HOLDERS INCLUDED)
TOOL CONE HOLDER - FOR EASY BIT CHANGING
4' X 8' (PHENOLIC) - UNIVERSAL GRID-TYPE VACUUM TABLE WITH T-SLOT FEATURE
SIX (6) INDEPENDENTLY CONTROLLED VACUUM ZONES

LAGUNA SMARTSHOP. DRIVE SYSTEM (PLUG-AND-PLAY MOTOR REPLACEMENT):
- X AXIS - HELICAL RACK-AND-PINION
- Y AXIS - DUAL HELICAL RACK-AND-PINION (DRIVES ON EACH END OF GANTRY)
- Z AXIS - PRECISION GROUND BALL SCREW

PROGRAMMABLE DUST HOOD WITH M-CODE DRIVEN RETRACTION
E-STOP
LIMIT SWITCHES ON ALL AXES WITH SOFT LIMITS
RIGID, ALL-WELDED, STRUCTURAL STEEL FRAME (MACHINE WEIGHT 3500 LBS.)
B&R INDUSTRIAL CONTROLLER
7.5 HP Vacuum blower
SS2 8' Turner B&R PKG
