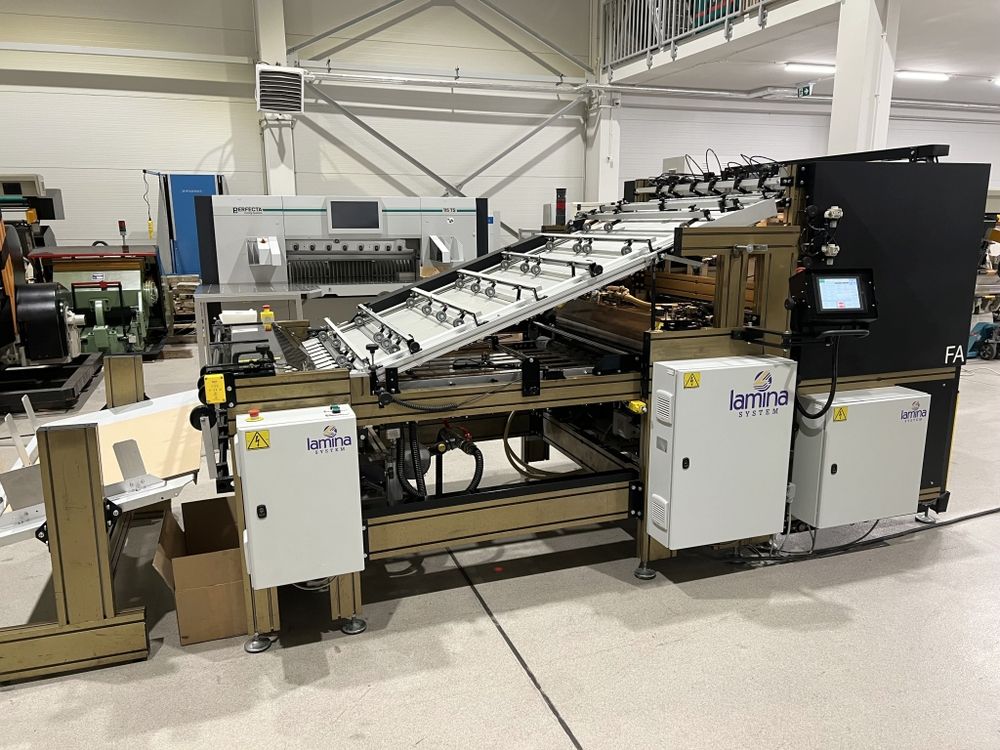

Lamina 1110 FA Fully automatic sheet-to-sheet laminator

This fully operational machine is ready for production and in very good condition.
The machine features an automatic sheet and board feeder, glue pump, built-in vacuum, a pressure module, and a discharge table.
Controlled by a touchscreen computer.

Description:
The Lamina 1110 FA is a highly precise, fully automatic sheet laminating machine.
It is designed for materials up to 1100 x 1000 mm in size.
Its compact design ensures short setup times and easy operation.
The machine is built around a highly durable, rigid frame made of extruded aluminum structural profiles.
This design creates an attractive machine with durable surfaces that will remain in good condition for years to come.
Any of the options can be added at any time.

Technical specifications:
Working width max/min: 1100 mm / 200 mm
Sheet length max/min: 1050 mm / 350 mm

Feeder capacity: Upper feeder: 500 mm
Lower feeder: 800 mm
Upper sheet: 130 to 450 g/m²
Lower sheet: 250 g/m² to 10 mm, corrugation: 0.6 to 10 mm
Accuracy: Up to 0.2 mm
Total installed power: 5.0 kW
Power supply: 380V
Weight: 3200 kg
