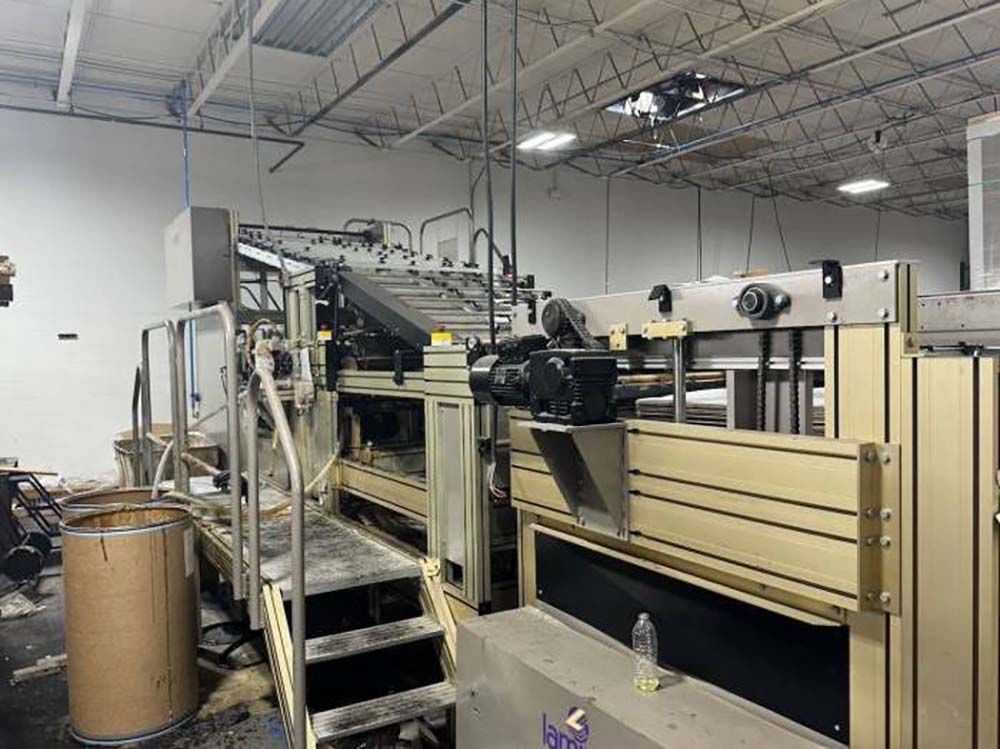

Lamina 1110 FA Laminating Machine

1110* FA 1100 mm (43”) 1050 mm (41”) 2050 mm (81”) 4400 mm (173”) 1700 kg (3740 lbs)
Minimum Sheet Width 200 mm (8”)
Minimum Sheet Length 350 mm (13¾”)
Feeder Capacity Top feeder: 500 mm (20”) Bottom feeder: 800 mm (32”)
Top Sheet 130 to 450 g/m2 1 pts = 28,25 g/m2
Bottom Sheet From 250 g/m2 to 10 mm (0,39”) 1 pts = 28,25 g/m2
corrugated from 0,6 - 10 mm (0,016” - 0,39”)
Registration Accuracy** Up to 0,2mm (0,008”)
Total Installed Power 5,0 kW
Electrics 208 V, 3 phase, 60 cycle; or 400 V, 3 phase, neutral, 50/60 cycle; or Specified
Air Requirements 6 bar; 80 psi; 34 CFM, Approximately 500 L/min
