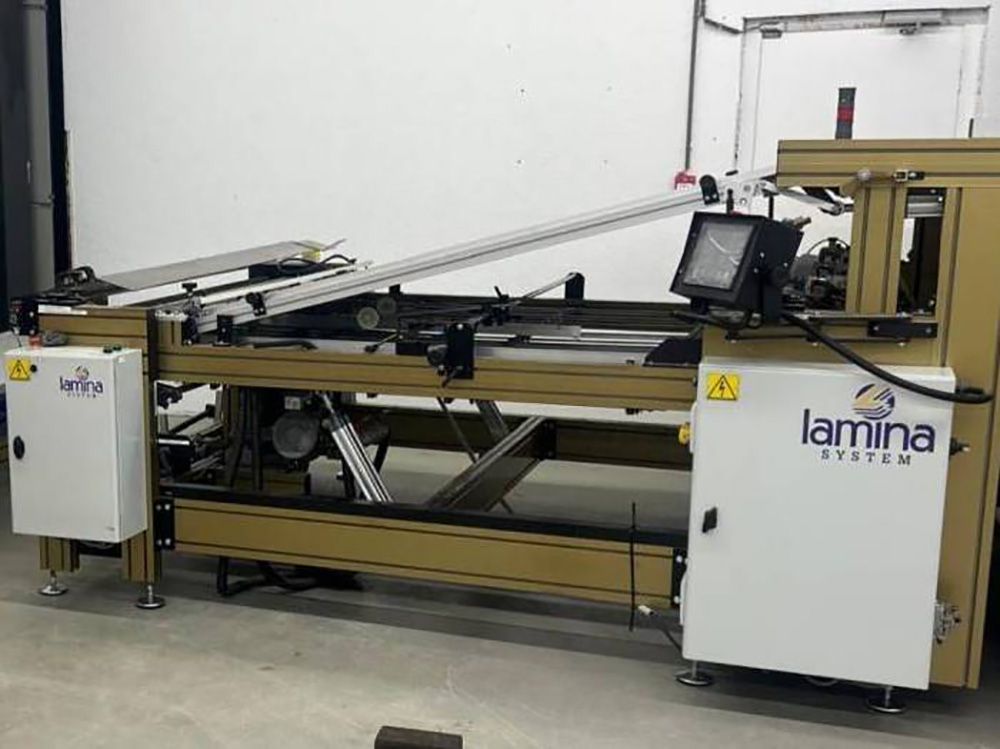

Lamina 1620 SA High Speed Fully Auto laminator

1620 BL 1600 mm (63”) 2000 mm (79”) 2550 mm (100”) 5400 mm (212”) 3400 kg (7490 lbs)
Minimum Sheet Width 350 mm (133⁄4”)
Minimum Sheet Length 350 mm (133⁄4”)
Feeder Capacity Top feeder: 500 mm (20”) Bottom feeder: 800 mm (32”)
Top Sheet 130 to 450 g/m2
1 pts 28,25 g/m2
Bottom Sheet From 250 g/m2
to 10 mm (0,39”) 1 pts 28,25 g/m2
corrugated from 0,6 - 10 mm (0,016” - 0,39”)
Registration Accuracy Up to 0,2mm (0,008”)
Total Installed Power 5,0 kW
Electrics 208 V, 3 phase, 60 cycle; or 400 V, 3 phase, neutral,
50/60 cycle; or Specified
Air Requirements 6 bar; 80 psi; 34 CFM, Approximately 500 L/min
