Chinese made laminating machine + cutting sewing

1 laminating machine + 1 cutting sewing machine
2005 but not operated at all
just test and shutdown

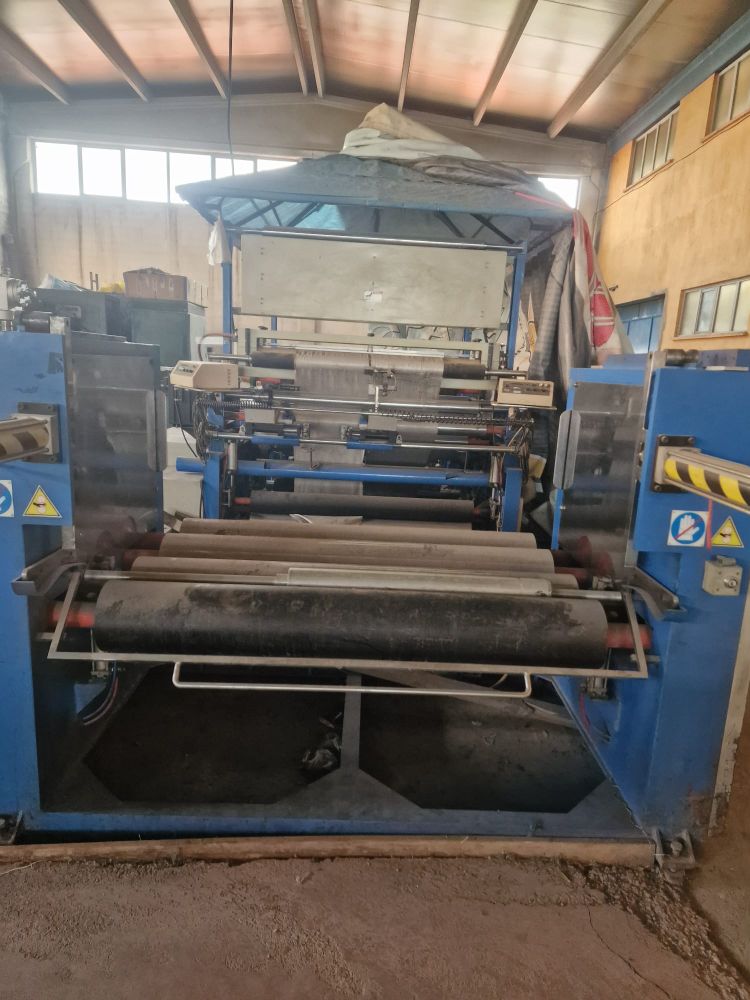

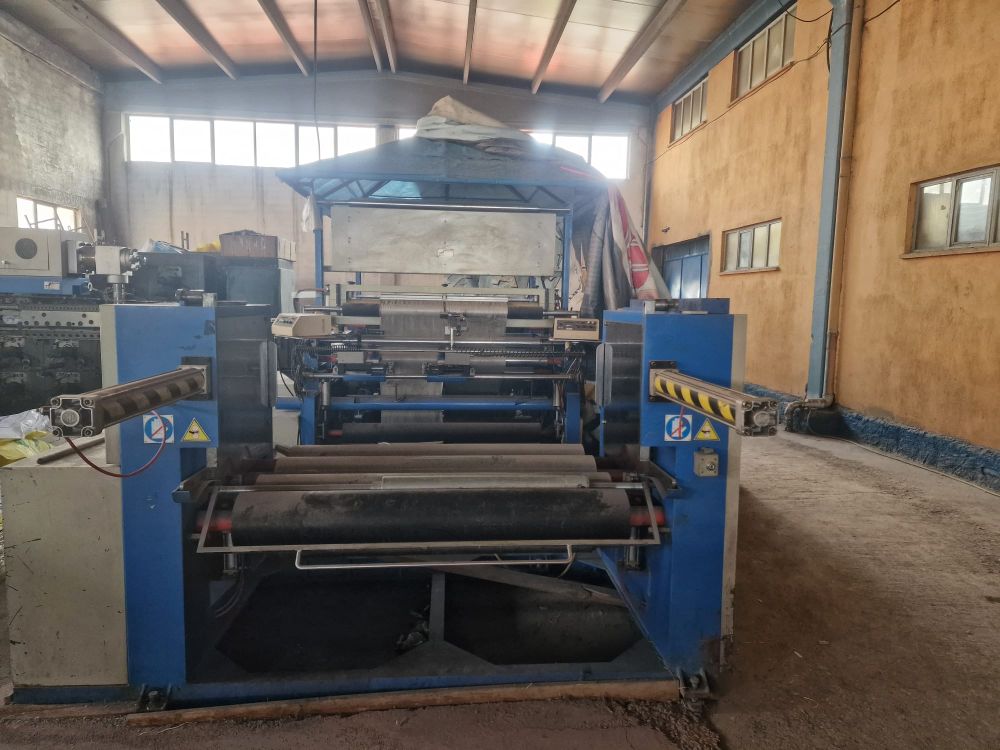

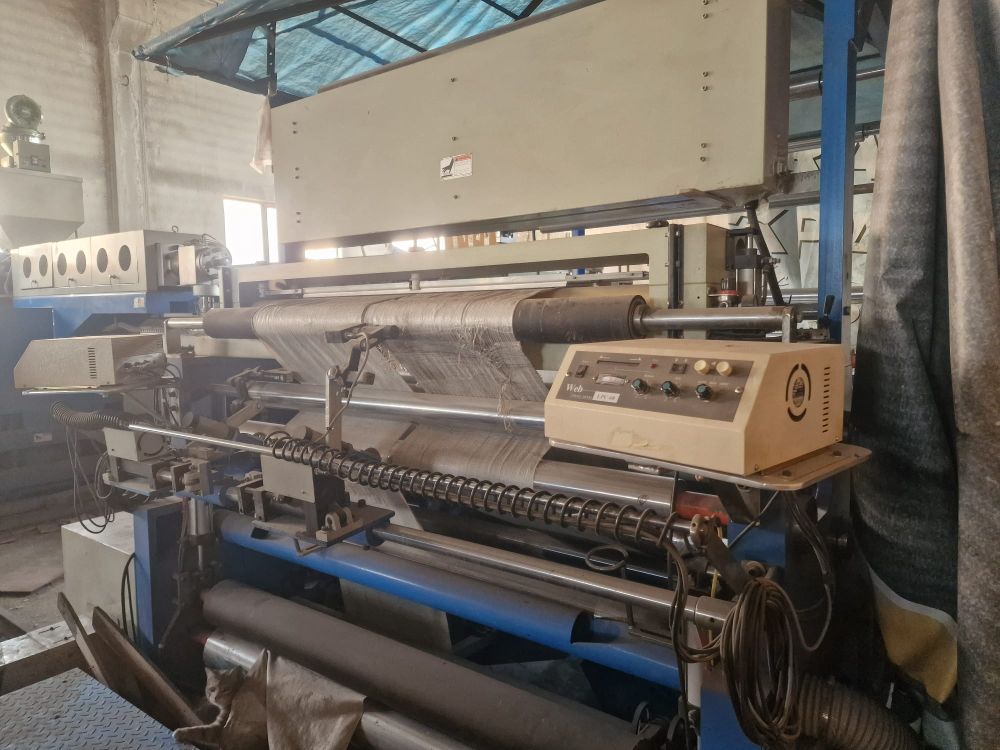

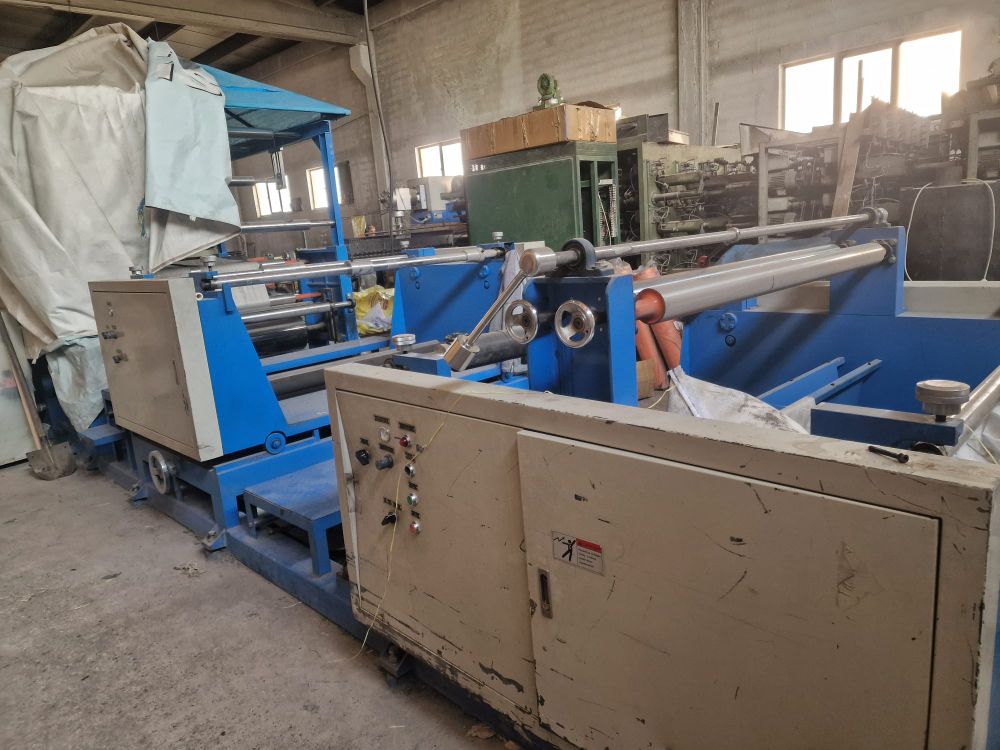

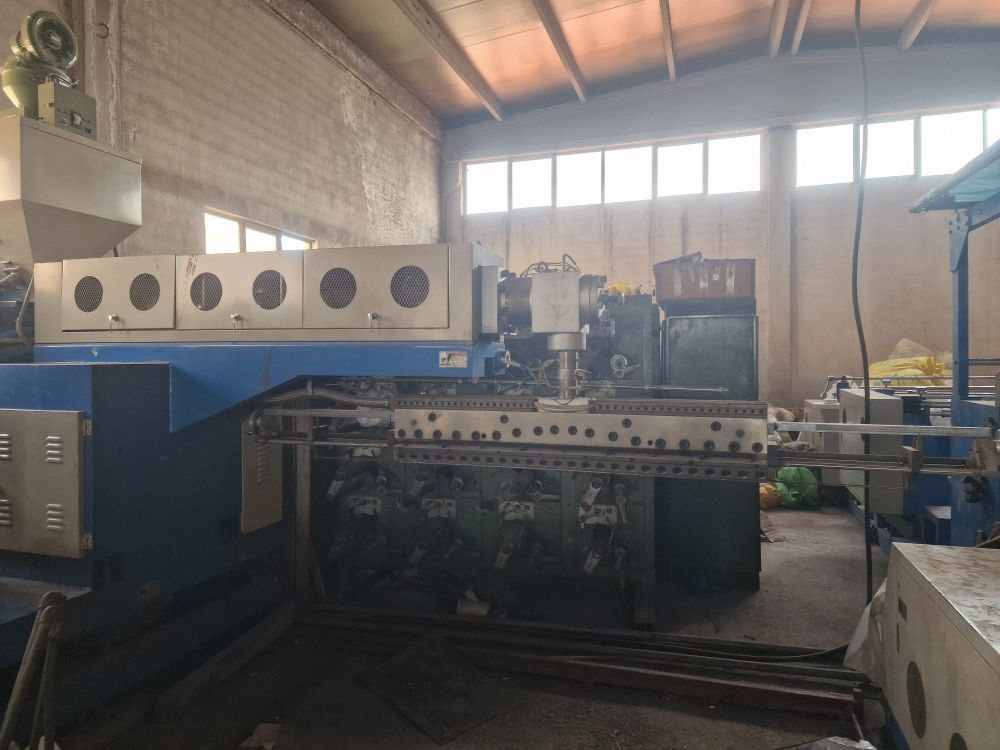

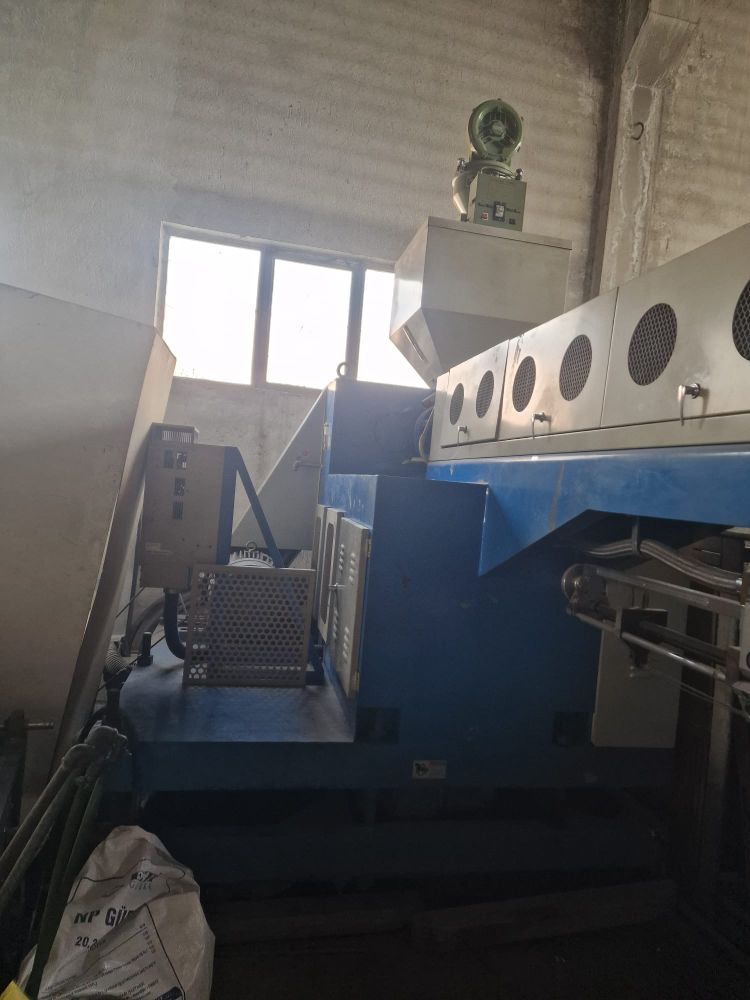

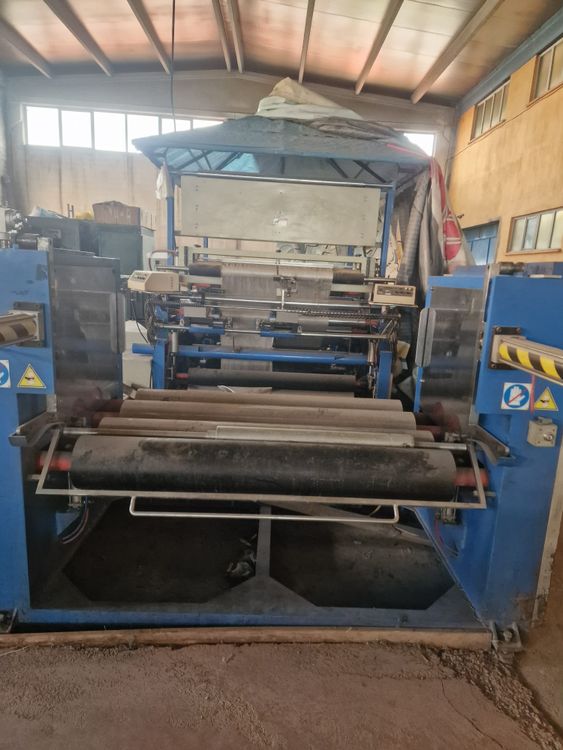

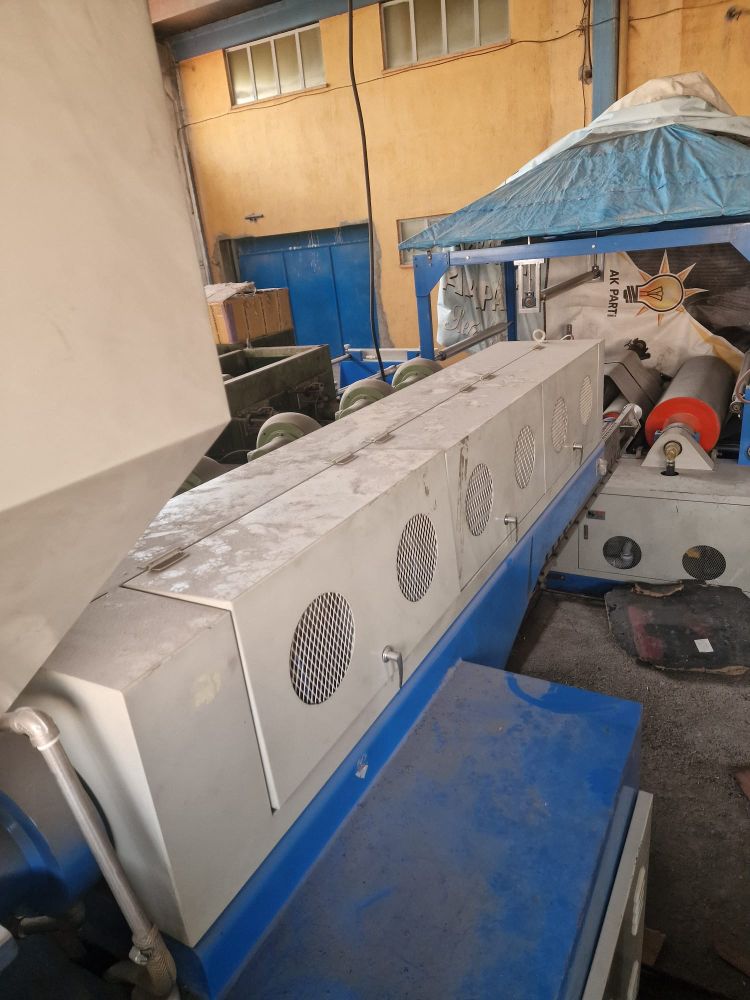

PP PE LAMINATION MACHINE HAOYU MODEL HY7-LH-90
Resin to be used Low density polyethylene & polypropylene
Working Materials PP, PE fabric (bag), kraft paper
Coating Thickness 0.02 mm ~ 0.06 mm

Screw Ø 90 mm
Screw length L/D ratio 30 : 1
Efficient coating length 2,700 mm
Type Special Type, Good Dyeing
Ration of compression 4 – 5
R.P.M. 8 R/min – 100 R/min (speed-adjusting freely)
Output of the extruder 0- 150 kgs/hr
Temperature of resin from T-die lip 250 °Cto 320 °C
Material SACM-4, nitride harden & polished with grinding
Corona treatment system 1 set

Material SACM 645, the Inside and outside are both nitride, hardness is above 850°C
Heater Stainless steel eater
Heating capacity 28 kw
Temperature control 5 zone of control
Temperature of 6 zones control 399 °C (Maximum)
Barrel Cooling water passes through the inner water way of steel-ring and to cause cooling function

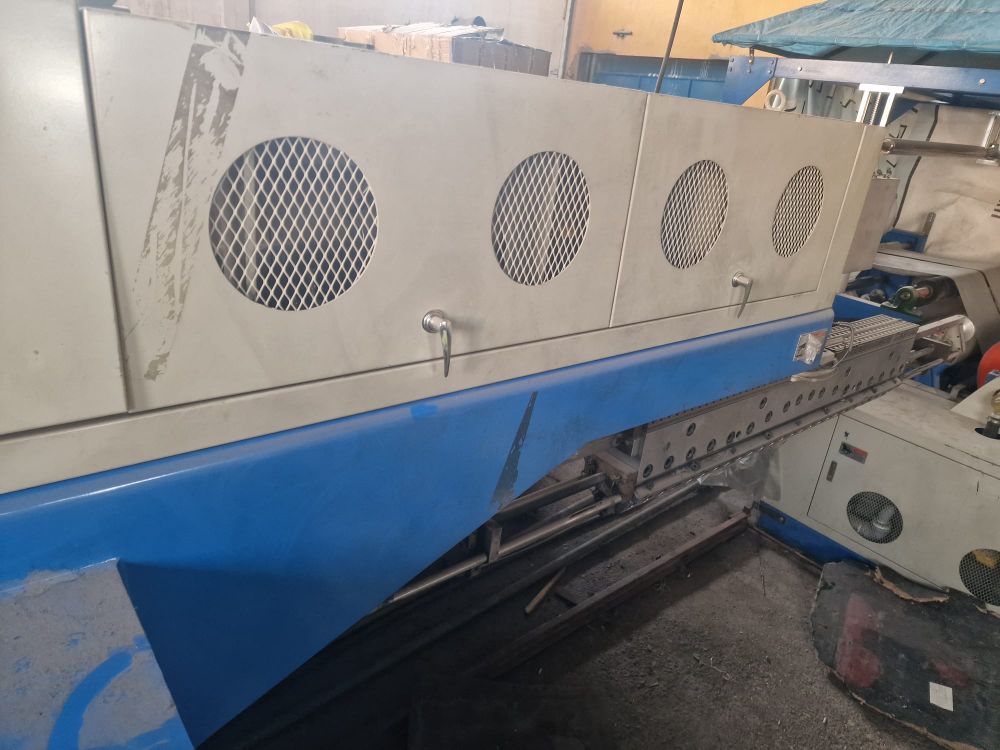

Cooling barrel 5 sets of 3” cooling blower
Capacity of hopper 100 kgs
Material of hopper Steel angle-box type

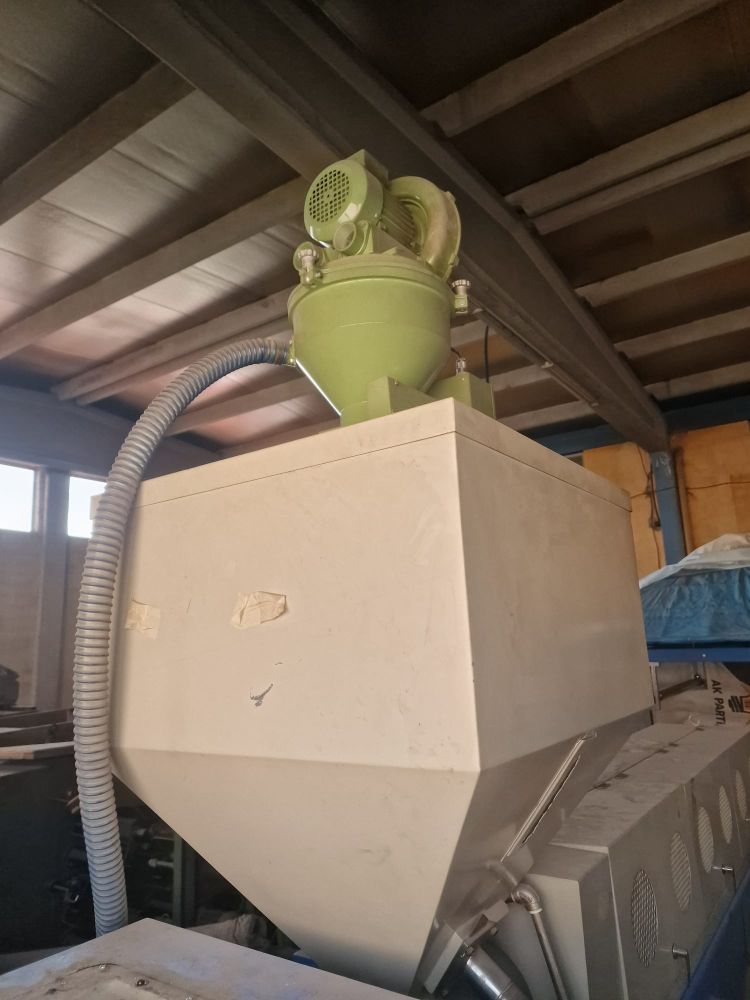

Vacuum auto loader 1 set (with the machine)

Material of heating Stainless steel
Heating capacity 6.5 kW
Temperature control 1 Zone
Temperature of 1 zone control 399°C (Maximum)
Temperature of resin One zone (to calculate the actual plastic temp. of inner barrel’s pipe)

Heating Stainless steel
Heating capacity 1 kW

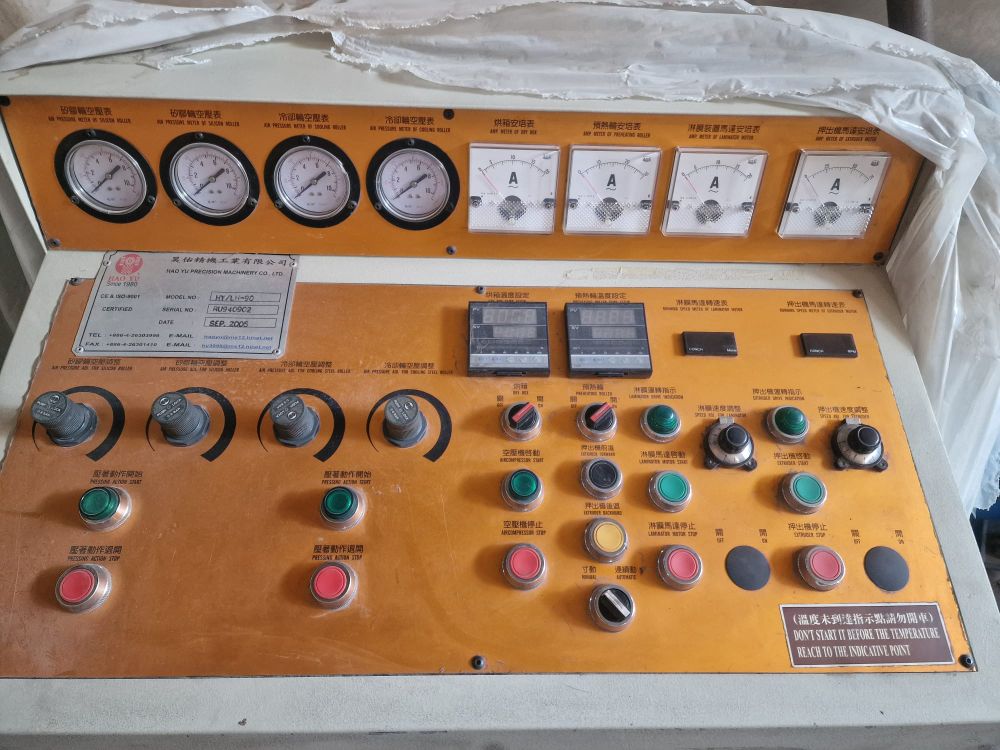

Temperature controlling panel Connected with side of carriage

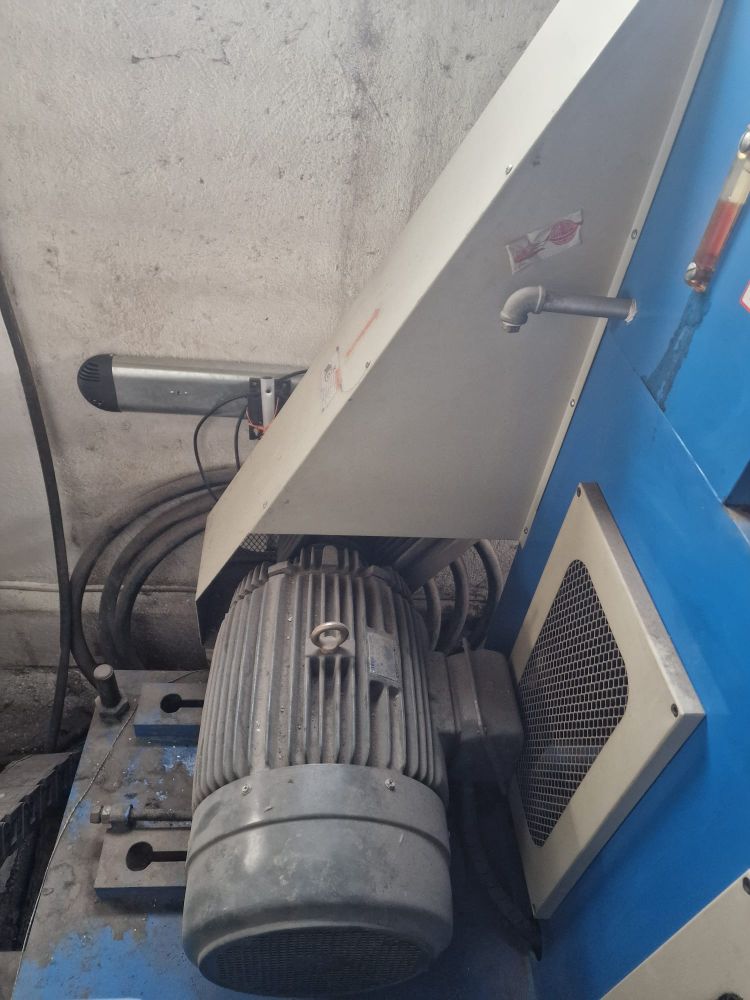

VS motor 40 hp with inverter
Speed-changing range 500 – 1,500 revolution/min

Steel plate 1.3 mm
Welded structure 1 set

Object Use extruder HY-LH90
Structure Box type
Roller Ø 130 mm x 4 pcs
Rail 5,000 mm (12kgs) x 2 pcs
Driving motor 0.75 kw
Speed-reducing motor with a brake x 1set
Movable distance 3,200 mm
Moving speed 6 m/min (Fixed speed moving)
Back & forth Operate at a distance
Up-down device ± 50 mm (manual)
Machine body Steel Shape & Steel plate welded structure

Type HY-1650
Length of T-die 1650 mm
T-die lip 0.8 mm (normal)
Material PDS 3
Cloth-shelf type with two sides structure after inner essence-adjusted, high-tension electroplating, plastic film flows down mirror-surface of die.
Coating thickness 0.02 – 0.06 mm
Adjustment of T-die 2 Adjusting bar (400 – 1400 mm, adjustable)
Temperature control 5 zones of control – 399 °C
Heating capacity 18 kw

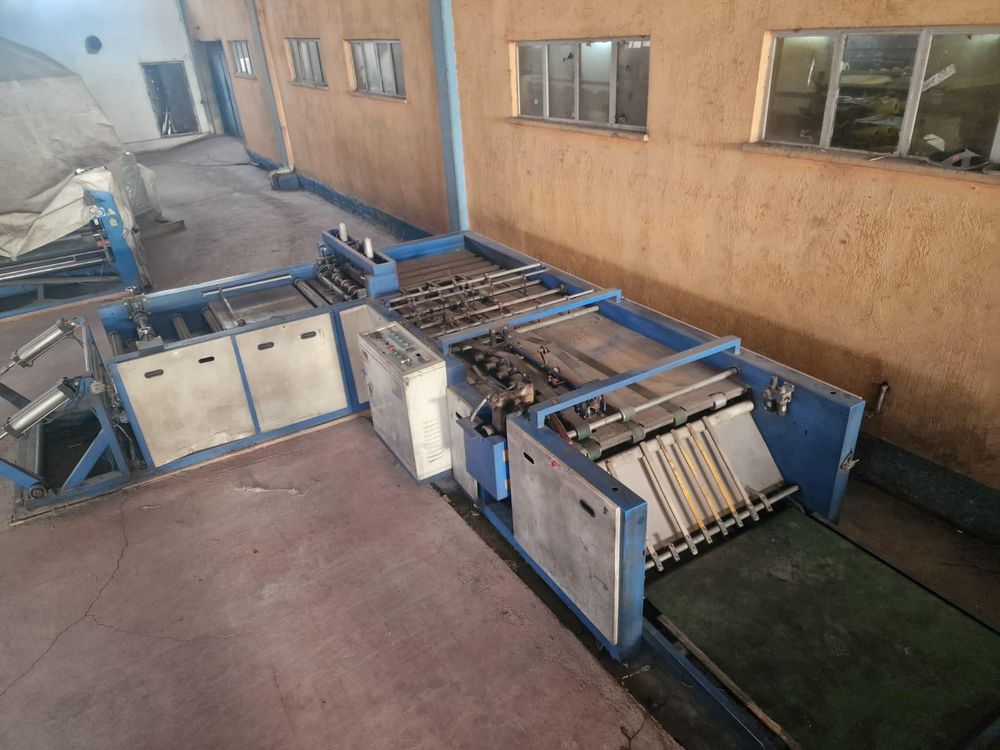

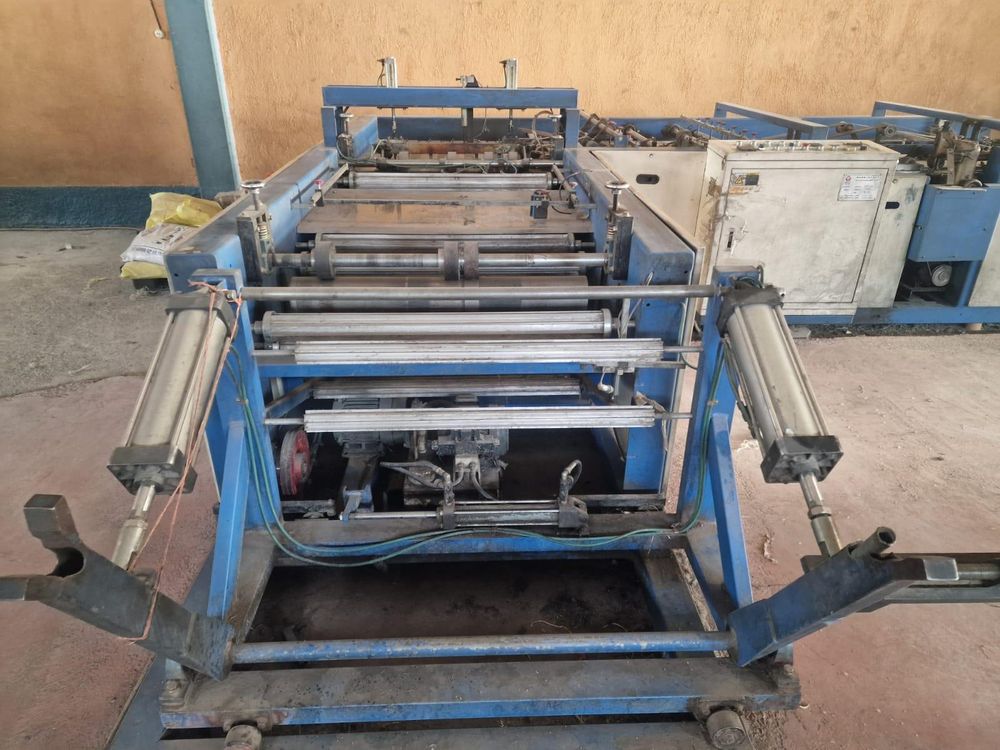

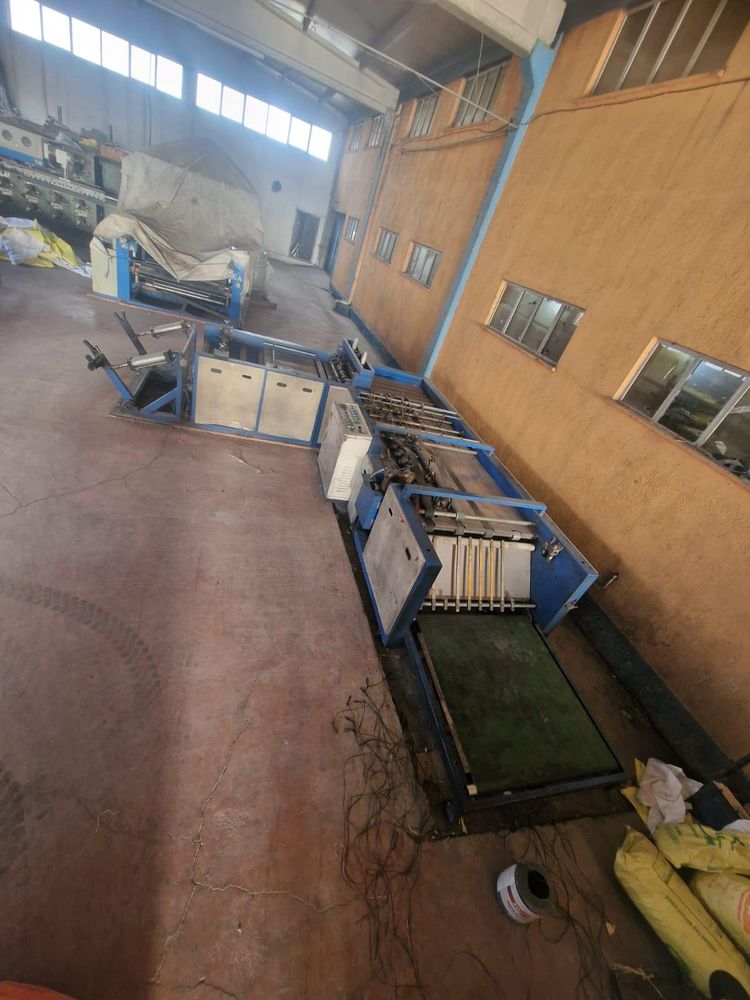

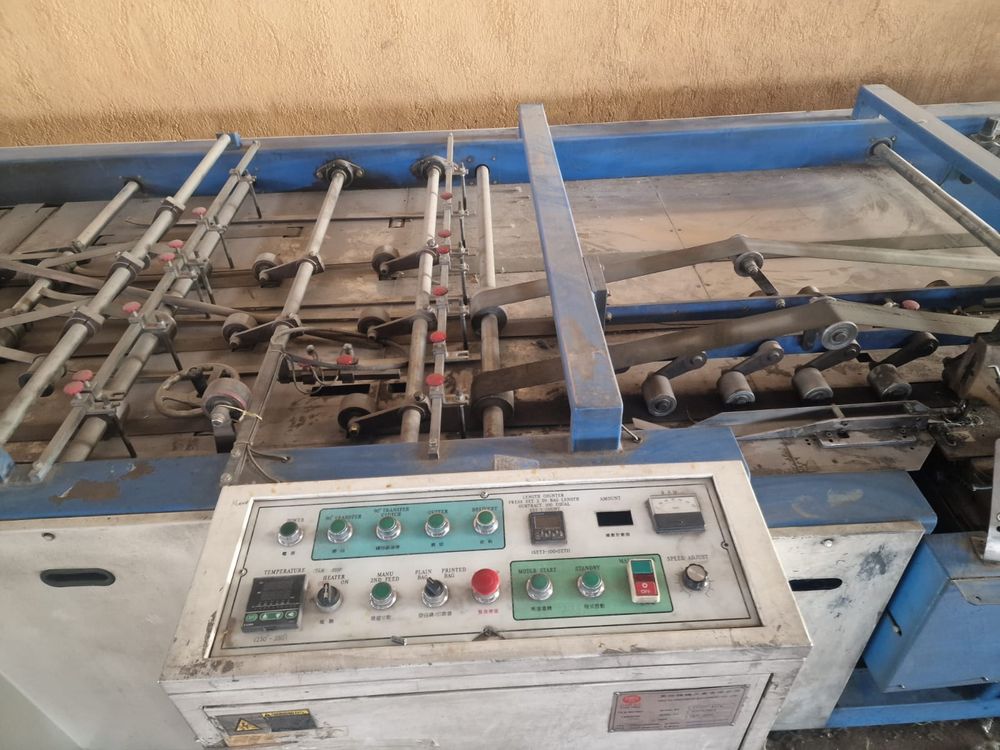

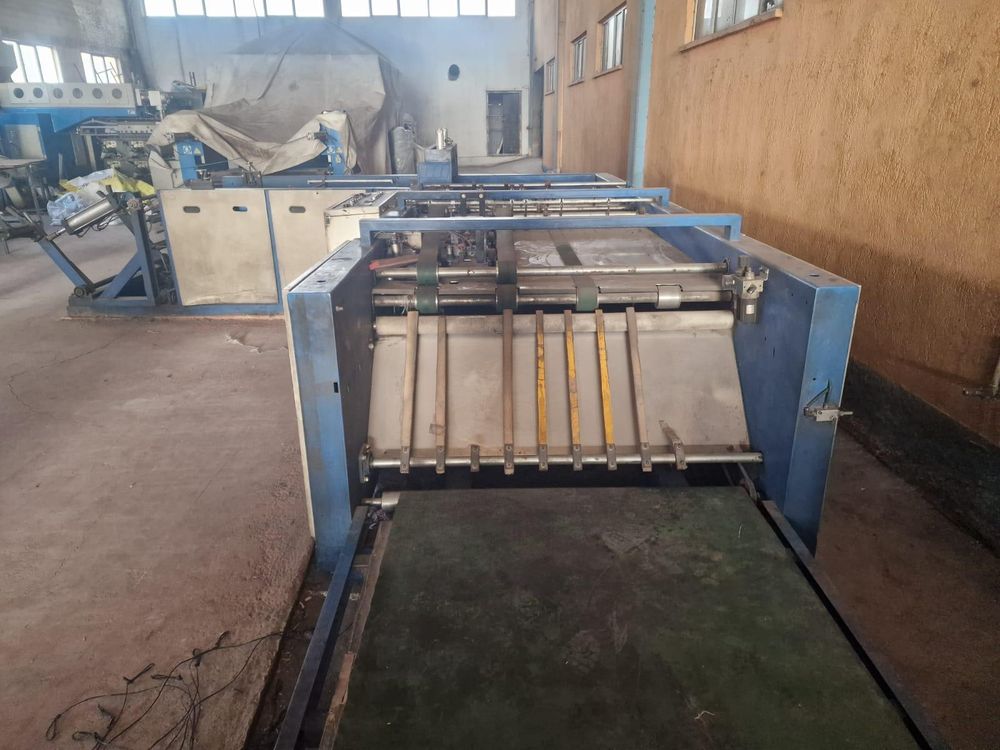

PP BAG CUTTING SEWING MACHINE MODEL HY7/SP-150H
Diameter of unwinding cloth 1,400mm maximum
Width of unwinding cloth 300~850mm
Cutting length 500~1,400mm applicable
Cutting length accuracy ±1mm
Production capacity 30~40 bags/min
Equipment control PLC type + HMI + Touch screen

Driving motor 1 hp AC servo motor with inverter control
Feeding type Auto control, non-stop feeding type
Tension control Dancing roller

Driving motor 3 hp servo motor (Mitsubishi – Japan)
Feeding speed 3 Steps (slow, normal, high) adjustable

Cutting knife Flat type high quality alloy steel cutter
Bag mouth auto-open device 1 set

Sewing unit New Long model: DKN-3BP
Stitching range 6~12mm
Folding device Single fold & wrap sewing
Folding width 20~30mm adjustable
Main conveyor driving motor 2 hp AC servo motor with inverter control

Bag delivery (every 25 or 50 bags) Counting stack type belt conveyor
Bag delivery driving motor 1/4hp motor with magnetic breaker

Sewing thread broken alarm Enclosed

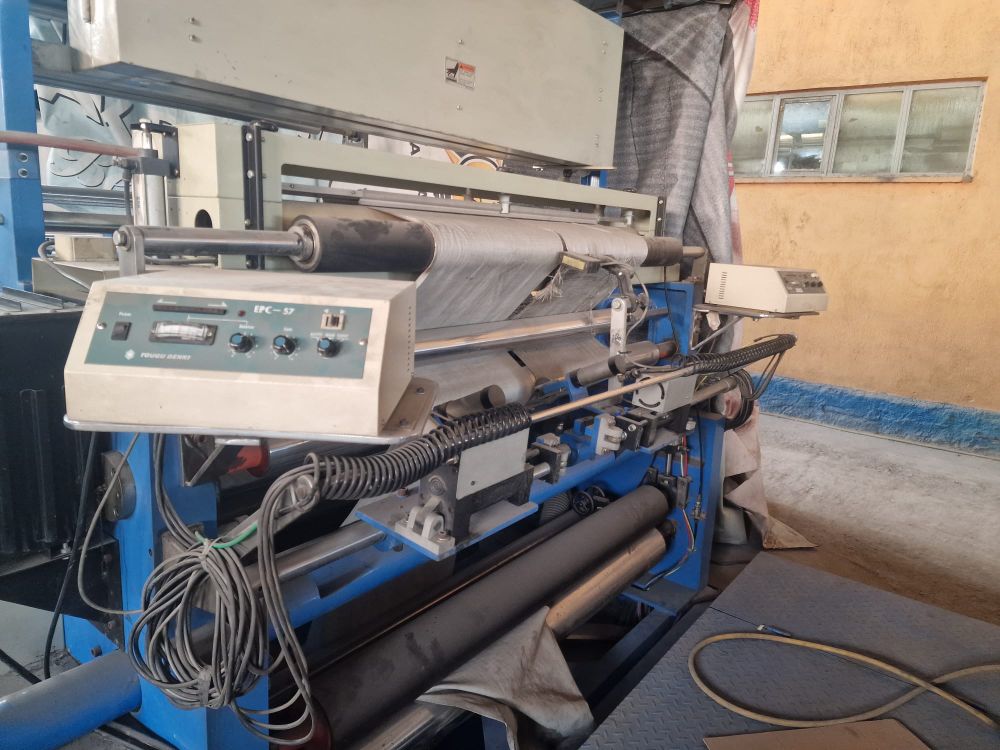

EPC (edge position controller) Enclosed (Hydraulic type)
Printing mark reading sensor Enclosed

Rated Power Capacity 11.4 Kw
Actual Power Consumption 9.4 Kw
Length x Width x Height 5,100mm x 3,880mm x 1,180mm
Weight 2,800 Kg
