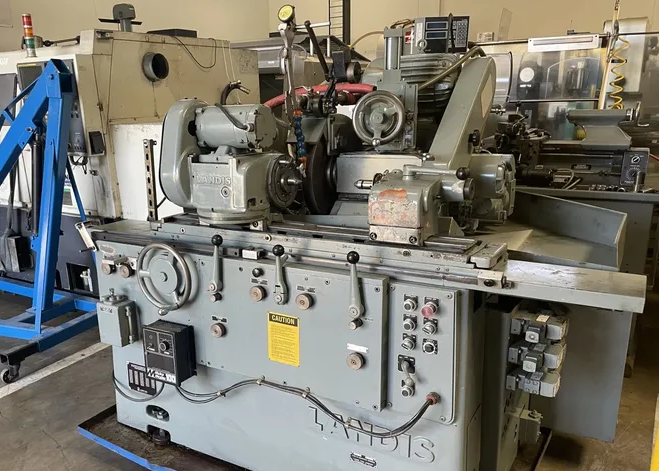

Landis 10X20 1R

Swing over table, maximum: 10.875"
Grinding diameter, maximum: 10"
Distance between centers, nominal: 20"
Grinding wheel diameter, minimum: 7.5"
Grinding wheel diameter, standard: 12"
Grinding wheel width, maximum: 1.5"
Grinding wheel width, standard: 1"
Grinding wheel hole diameter: 5"
Table swivel taper: 4 IPF
Table swivel angle: 20°
Headstock swivel range: 120°
Grinding wheelhead swivel range: 90°
Workhead center taper: #10 Jarno
Tailstock center taper: #6 Jarno
Spindle speeds: 2000 & 2530 RPM
Workhead spindle speed range: 60 to 600 RPM
Table longitudinal feed range: 2 to 240 IPM
Grinding wheelhead spindle motor: 5 HP / 1775 RPM
Electrical system: 220-440V / 3 Phase / 60 Hz
Floor space required (L x D): 8'10" x 4'2"
Weight: approximately 4100 lbs
