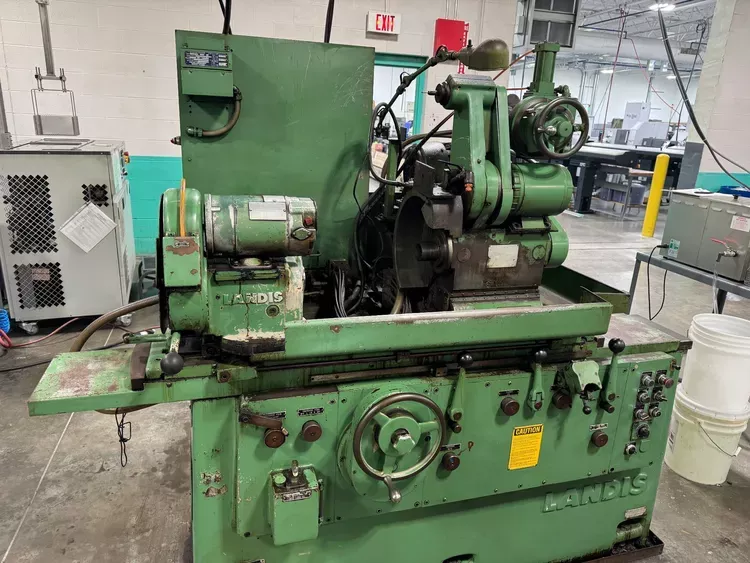

Landis 10X24 2R

Swing over table 10.938 in
Distance between centers 25.938 in
Grinding wheel diameter 12 in
Grinding wheel size 12 x 5 x 3 in
Power 7.2 hp
Workhead power 0.8 hp
Workhead speed up to 2000 rpm
Plunge yes
Table swivel toward wheel head 8°
Table swivel away from wheel head 3°
Table taper toward wheel head 4 1/2 in per ft
Table taper away from wheel head 2 in per ft
Lower swivel right and left 220°
Upper swivel right and left 180°
Head stock spindle taper Jarno No. 10
Foot stock spindle taper Jarno No. 6
Work speeds 30 – 600 rpm
Head stock spindle nose 5 in
Table traverse speeds 3 – 280 in/min
Accuracy of table reversal 0.001 in
Table tarry adjustment 0 – 5 s
Mechanical hand table traverse slow 0.1 in
Mechanical hand table traverse rapid 1 in
Distance from floor to work centers 46.5 in
Automatic infeed minimum 0.0001 in
Automatic infeed maximum 0.0025 in
Minimum movement to reverse table 1/16 in
Wheel head movement minimum 0.0005 in
Wheel head movement maximum 0.050 in
Minimum infeed increment 0.0001 in
Wheel head motor 3 hp
Head stock motor 0.33 hp
Wheel head motor speed 1760 rpm
Hydraulic pump motor 2 hp
Coolant pump motor 0.125 hp
Hydraulic traverse table
Traverse rate control
Right hand tarry
Left hand tarry
In base coolant pump
ID spindle
Attached panel
Auto plunge
Traverse feed
220 V
Full load 25 – 82 A
Disconnect 60 A
Bijur auto lube
Floor space 59.5 x 144.5 in
Weight 6000 lb
