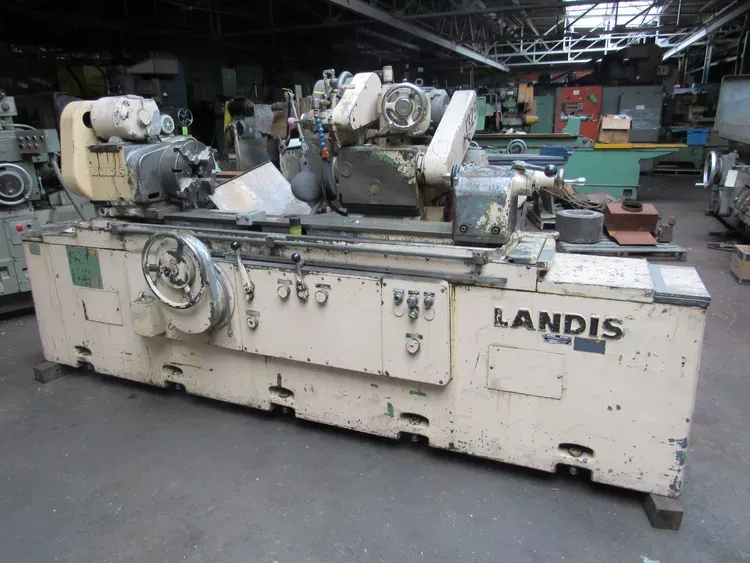

Landis 14X48 3R

Swing over work: 14.98 in
Distance between centers: 48 in
Grinding wheel diameter: 14 in
Grinding wheel size: 14 x 2 x 5 in
Grinding wheel spindle speed min: 1720 RPM
Grinding wheel spindle speed max: 2185 RPM
Wheel drive motor power: 5 HP
Workhead motor power: 0.75 HP
Workhead speed min: 25 RPM
Workhead speed max: 500 RPM
Internal spindle speed: 15000 RPM
Traverse speed min: 2 in/min
Traverse speed max: 240 in/min
Automatic infeed at table reversal: Yes
Infeed on diameter min: 0.0003 in
Infeed on diameter max: 0.004 in
Work diameter reduction per handwheel revolution: 0.100 in
Headstock swivel range: 120 deg
Grinding wheel head swivel range: 180 deg
Table swivel graduation: 3.5 in per ft
Headstock spindle nose: 6A-2
Headstock work center: #14 Jarno
Tailstock work center: #10 Jarno
Hole through headstock spindle: 1 7/16 in
Hydraulic pump motor power: 2 HP
Coolant pump motor power: 0.25 HP
Wheel spindle lubrication pump motor power: 0.25 HP
Machine weight: 10750 lb

Features / Equipment:
Programmable micronic feed
Swing-down internal grinding attachment
Left-hand tarry
Right-hand tarry
Traverse feed rates
Lever-operated tailstock
Tailstock truing device
Variable-speed DC workhead motor
One-shot lubrication system
Coolant system in base
