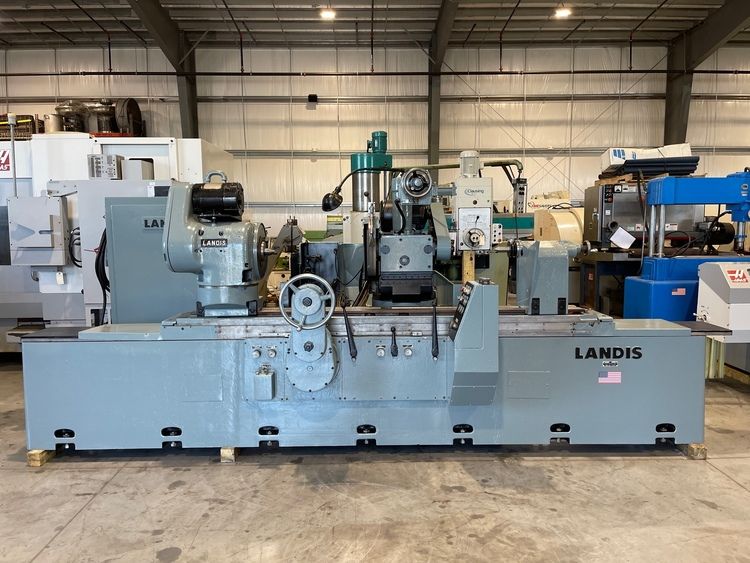

Landis 3RH UNIVERSAL CYLINDRICAL GRINDER

LANDIS 3RH UNIVERSAL CYLINDRICAL GRINDER

Maximum swing over the table: 30"
Distance between centers: 72"
Table swivel: +15° / -5°
Work carriage speed: 2 – 240 I.P.M.
Grinding wheel size: 18" x 2" x 5" bore
Grinding wheel swivel: +90° / -90°
Grinding wheel spindle speed: 3,450 R.P.M.
Motorized workhead speed: 30 – 150 R.P.M.
Workhead swivels: +95° / -30°
Electrical cabinet with schematics
Extra wheels and hubs
10 HP spindle motor
2 HP hydraulic pump
1 HP work head motor
1 HP lube pump
¾ HP coolant pump
Machine wired for 480 volt / 3 phase / 60 Hz
Machine weight: 14,000 lbs
Machine dimensions: 186" L x 90" W x 78" H
