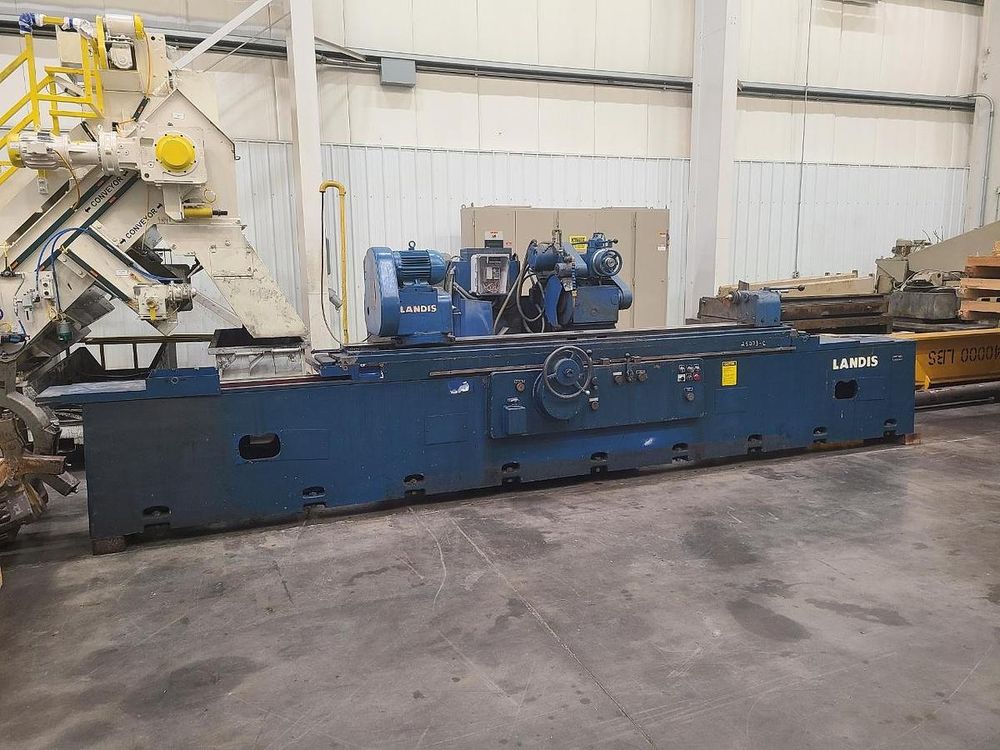

Landis 3RH

Swing: 14 in
Maximum Swing (Measured): 17 in
Center Distance: 96 in
Maximum Grinding Diameter: 14-31/32 in
Minimum Grinding Diameter: 9-1/4 in
Traverse Speed: 2–240 IPM
Handwheel Traverse (Slow): 0.100 in
Handwheel Traverse (Fast): 0.750 in
Standard Wheel Size: 14 × 1-1/2 × 5 in
Wheelhead Swivel (Upper): 180°
Wheelhead Swivel (Lower): 60° CW to 30° CCW
Automatic Infeed at Table Reversal: 0.0003–0.004 in
Maximum Wheel Centerline to Work Centerline Distance: 17 in
Minimum Wheel Centerline to Work Centerline Distance: 3 in
Work Diameter Reduction per Handwheel Revolution: 0.100 in
Work Diameter Reduction per Fine Feed Knob Revolution: 0.005 in
Headstock Work Center: #14 Jarno
Tailstock Work Center: #10 Jarno
Headstock Hole Diameter: 1-7/16 in
Headstock Spindle Nose: 6A-2
Headstock Swivel Range: 120°
Swivel Table Graduation: 4-3/4 in/ft
Swivel Table Graduation: 23°
Grinding Wheel Motor: 5 HP
Power Requirement: 3 Phase, 60 Hz, 440 V
Traverse Feed Selector
Wheelhead Ways Lubrication Pump
Left/Right Tarry
Traverse Rate Knob
Headstock Speed Knob
Grinding Wheel Hubs
Flood Coolant
Coolant Pump
Overall Machine Size: 240 × 84 × 72 in
