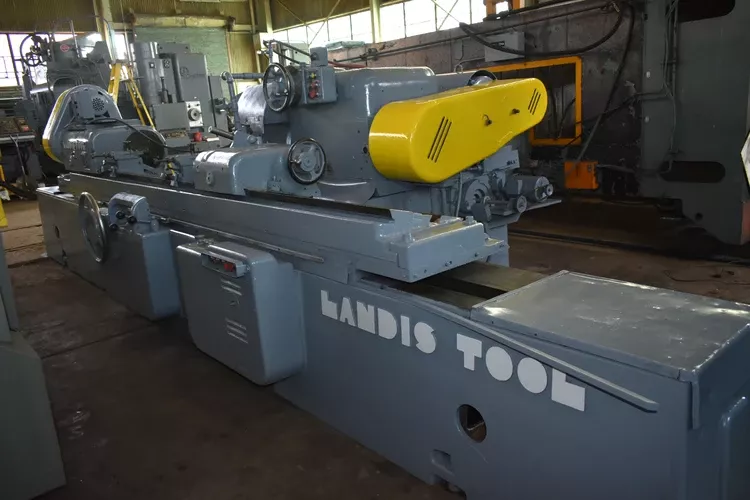

Landis F

Swing 14.75"
Centers 96"
Plain or Angle Head Plain
Grinding Wheel Diameter 30"
Grinding Wheel Width 3"
Grinding Wheel Hole Diameter 12"
Wheel Power 30 HP
Wheel Speed 1760 RPM
Table Swivel Graduated 11-DEGREES
Workhead and Tailstock Center Tapers #20 JARNO
Workhead Spindle Speeds 25–100 RPM
Table Longitudinal Feeds 3–90 IPM
Electrical System 230-460/3/60
Floor Space Required 28' x 8'10"
Weight 34,000 lbs
Weight Capacity Between Centers 6500 LBS

Tailstock Mounted Grinding Wheel Dresser
(2) Follow Rests
Coolant System (Built-In)
