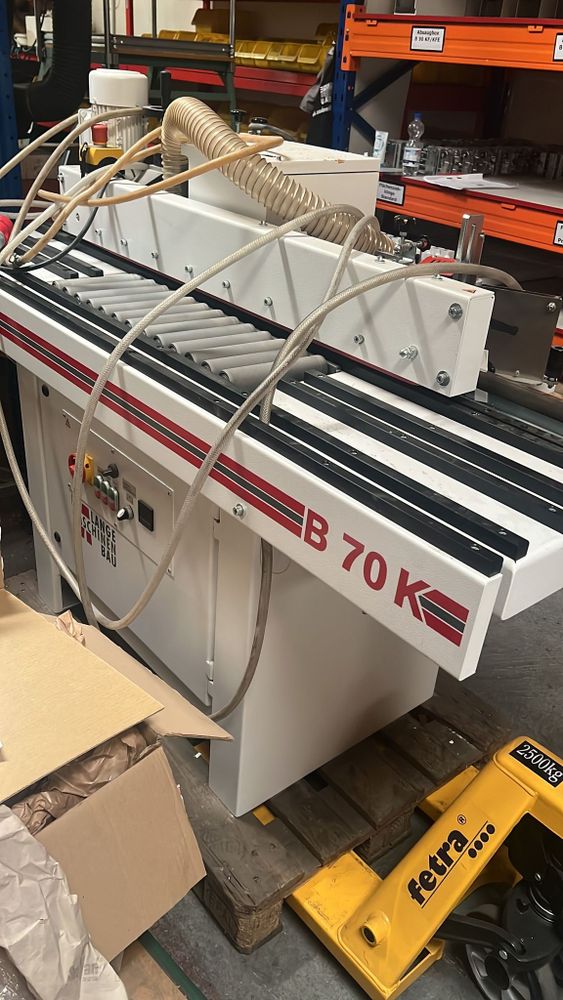

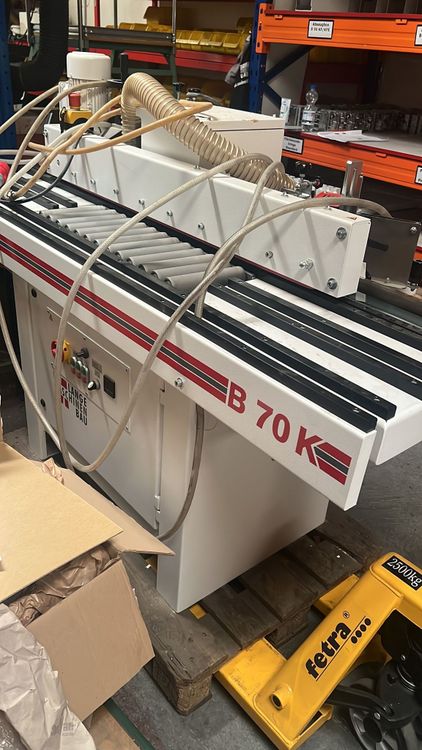

Lange B 70 K-100

Edge banding machine up to 100 mm gluing height
Machine table with 13 rollers for improved workpiece guidance
Edge infeed, synchronized with the belt feed
Edge thickness adjustable via digital counter
Pneumatic roller separation with knife (for cuttable edges)
Three pressure rollers
Belt feed 0.25 kW; approx. 1250 mm long; approx. 6.0 m/min; 50 mm wide toothed belt with thick, workpiece-protecting rubber pad. Digital counter for height adjustment
Direct glue application to the workpiece: leak-proof glue pot with glue supply from below and fast heat-up time after machine shutdown
Flush trimming unit for the front and rear edges of the workpiece, automatic workpiece scanning, pneumatic trimming with a knife for cuttable edges
Flush trimming unit with vertical scanning and horizontal guidance, reproducible adjustment via digital counters,
2 powerful 0.4 kW high-frequency motors, continuously adjustable from 4000 to 18000 rpm, cutter Ø 70 mm,
Z4, radius 2 mm/15°; Central extraction nozzle Ø 100 mm, 2 chip extraction hoods with hose Ø 60 mm,
Automatic height adjustment of the upper milling cutter with the belt feed
Continuous workpiece support approx. 1800 mm long, workpiece support rail, extendable by approx. 300 mm
Rotating film plate Ø 800 mm

Technical details:
Minimum workpiece width approx. 80 mm
Workpiece thickness 10 - 100 mm
Minimum workpiece length approx. 220 mm
Edge thickness 0.4 - 2.0 mm
Roller cutting max. 1.0 x 55 mm, 2 x 45 mm
Heating power of glue pot 2.7 kW
Electrical connection 400 V, 50 Hz, 3Ph + N
Total connection 3.8 kW
Heating time approx. 10 minutes
Pneumatic connection 6 bar
Working height approx. 880 mm
Dimensions approx. 1800 x 700 x 1300 mm without foil plate Ø 800
Net weight approx. 260 kg
