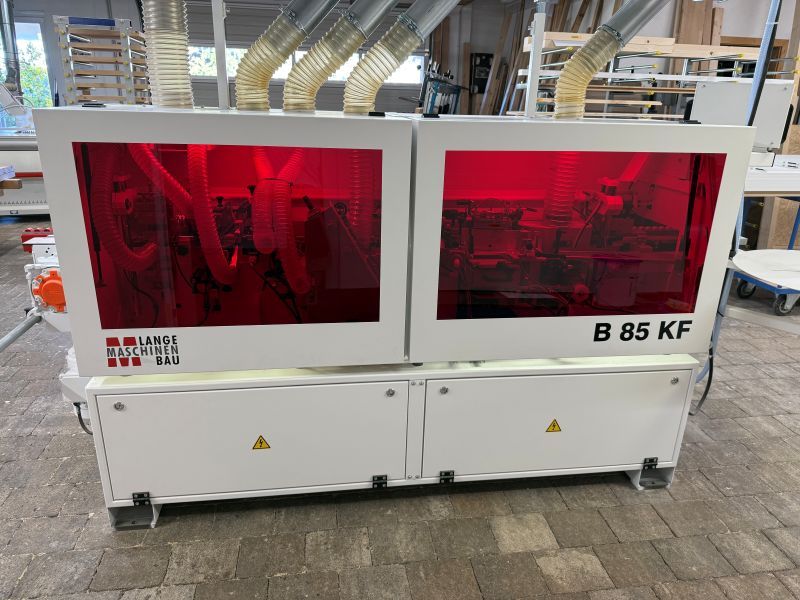

Lange B 85 KF

Edgebanding Machine
Edge thickness 0.2 - 3.0 mm
Workpiece thickness 8 - 50 mm

- Lightly used machine
- In very good condition
- For sale on behalf of a customer.

Description B 85 KF:
Even short workpieces get their finish here.
Small but mighty when it comes to processing short workpieces.
Compact at only 3.15 m overall length, even short workpieces as short as 120 mm can be processed professionally.

Equipped with a jointing unit with 2 diamond-tipped jointing cutters, a Teflon-coated gluing unit, a pre-trimming unit,
a high-frequency cross-cutting saw station (motor with 2 saw blades), a high-frequency combination milling unit,
and 2 free positions for finishing units for optimal edge processing.
Easy operation via a rotatable 7.0" color touchscreen.
With options such as a surface and radius scraper blade, a polishing unit, and spray systems for non-stick and cleaning agents, you achieve a perfect and optimal finish with a seamless look.
PUR processing is also possible with the optionally available glue pot with drain function.

Technical data:
Machine length 2811 mm
Workpiece thickness 8 – 50 mm
Workpiece width min. approx. 75 mm
Workpiece length min. approx. 120 mm
Edge thickness 0.4 – 3.0 mm
Chip removal jointing unit 0 – 2.0 mm stepless
Edge height max. = workpiece height + 4 mm (2+2)
Electrical connection
400V, 50Hz, 3Ph+N
Total connected load 6.4 kW
Feed speed 7.0 m/min.

Pneumatic connection 6 bar
Net weight 668 kg

Special equipment installed:
Diameter milling cutter H=45 mm for joining (instead of 30 mm)
EVA/PUR glue pot with drain function (instead of standard)
Quick-change pot
Radius scraper
Surface scraper
Riepe non-stick spray unit at the inlet/joining unit
