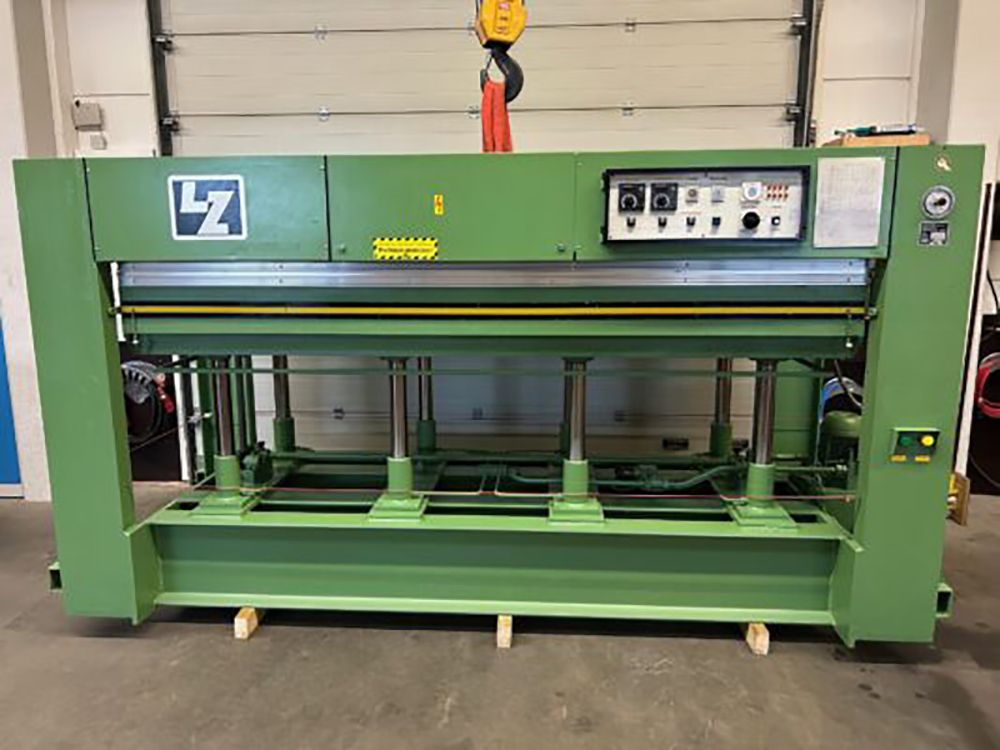

Langzauner LZT 120-SF

Used veneer press with brand new heating plates!
Pressing surface: 300 x 130 cm
Total Connected load: 26.5 kW (rated current: 42.0 A)
Pressing area: 300 x 130 cm
Electric heating plates, aluminum (new)
Surface finish: Anodized C-32
Operating temperature: max. 120°C
Power per heating plate: 12,700 W
Opening width: 400 mm

8 hydraulic cylinders, each 80 mm in diameter
All 8 cylinders resealed (new seal kit)
Hydraulic oil replaced
Cylinder preselection: Switchable from 4 to 8 cylinders
Total pressing force: 120 t
Specific pressure: 3.0 kp/cm² (at 80%: 3.8 kp/cm²)

Perimeter safety pull cord
Automatic opening (time-controlled)
Stroke limitation (time-controlled)

External dimensions: approx. 376 x 154 x 195 (W x D x H)
Weight: 6.1 t
