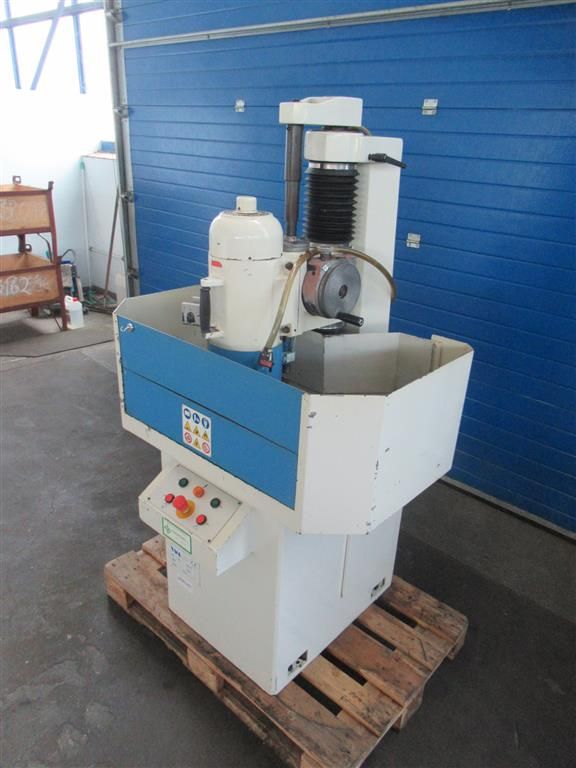

Lapidello VAM300

Height of Profile: 180 mm
Max Diameter of Grinding Wheel: 200 mm / Topfscheibe
Grinding Spindle Speed: 2800 rpm
Table Dimensions LxB: 500 x 160 mm
Voltage: 220 / 380 V
Total Power Requirement: 3.0 kW
Weight: 0.57 t
Machine Dimensions LxWxH: 1.28 x 1.0 x 1.75 m
Conventional Control
Application: Face Grinding
Magnet Mount LxW: 680 x 200 mm
Magnet Tilt: approx. 15°
Magnet Swivel: 360° via radial scale
Magnet Type: S2D, permanent magnet, clamping surface 300 x 150 mm
Grinding Wheel Support Vertical Adjustment: 180 mm manual
Grinding Wheel Support Swivel Adjustment: approx. 45° right/left manual
Operation: Control panel on machine
Coolant Tank with Pump and Feed
EXW, free on truck unpacked
