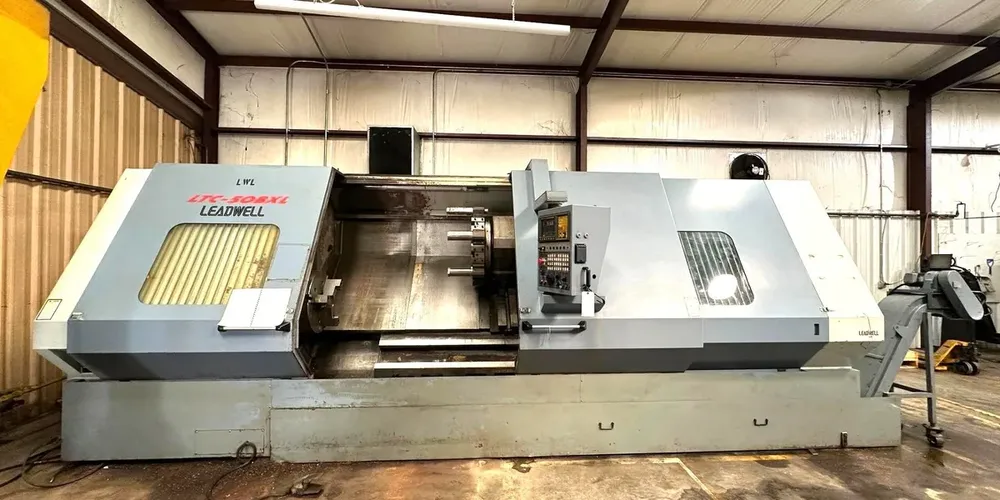

Leadwell CNC Controller 1,500 RPM LTC-50BXL 2 Axis

X-axis travel: 16.73"
Z-axis travel: 122.04"
Bar capacity: 4.60"
Maximum swing: 33.46"
Swing over cross slide: 31.45"
Maximum turning diameter: 27.55"
Maximum turning length: 119.48"
Spindle speed range: 15 - 1,500 RPM
Spindle motor: 50 / 60 HP
Spindle nose: A2-11
Spindle bore: 5.51"
Maximum spindle torque: 375.3 N·m
Chuck size: 21"
21" Kitagawa B-21 3-jaw chuck
Number of turret stations: 12
Turret indexing time: 0.25 sec
Programmable turret indexing time: 1.46 sec
Rapid traverse X-axis: 393.7 IPM
Rapid traverse Z-axis: 472.4 IPM
Overall bed guide width: 26.37"
Cross slide guide width: 12.6"
Slant bed angle: 45°
Automatic tailstock
Tailstock travel: 114"
Hydraulic quill
Quill diameter: 4.92"
Quill stroke: 6.1"
Quill taper: MT #6
Maximum quill thrust: 1,300 kg
Coolant pump motor: 1.34 HP
Coolant pump pressure: 3 kg/cm2
Coolant tank capacity: 162 L
Pump capacity: 180 / 270 L/min
Chip conveyor
Side discharge chain-type chip removal
Maximum workpiece weight: Not specified
Dimensions: 260" x 101" x 96"
Weight: 37,478 lbs
