1/1
Leadwell FANUC 0i-TD CNC control 4000 RPM LTC-20BM 2 Axis
Ref :
2725125-3-CP
Condition :
Used
Manufacturer :
Leadwell
Controller :
FANUC 0i-TD CNC control
Spindle Speed :
4000 RPM
Model :
LTC-20BM
Nb Of Axis :
2 Axis
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)

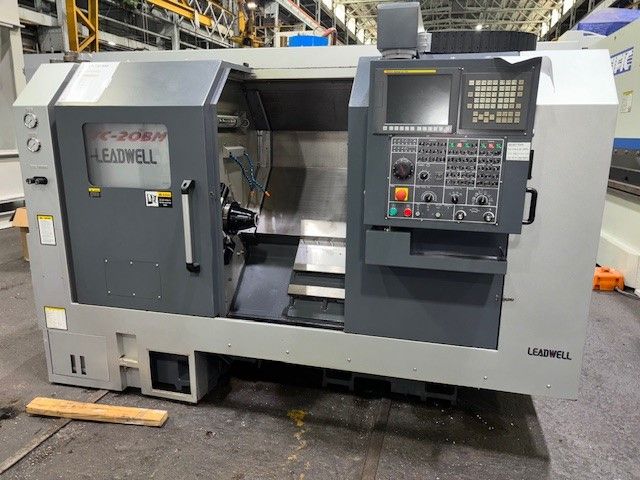

LEADWELL LTC-20BM
Year: 2012
Swing 17.7″
Turning diameter 10.2″
Center distance 17.7″
Chuck size 8″
Bar capacity 2.6″
X axis travel 6.2″
Z axis travel 21″
Rapid traverse (X/Z) 787 IPM
Spindle nose A2-6
Spindle speed 4000 RPM
Main motor 20 HP
Live tooling Yes
Live tooling speed 6000 RPM
Live tooling motor 5 HP
Tailstock Yes
Turret capacity 12
Machine dimensions 110″ x 60″ x 63″
Machine weight 8600 lbs
FANUC 0i-TD CNC control
Toolsetter
8″ 3-jaw hydraulic chuck
Collet chuck
12-position turret
Tailstock
Chip conveyor
3 live toolholders
All available static toolholders
