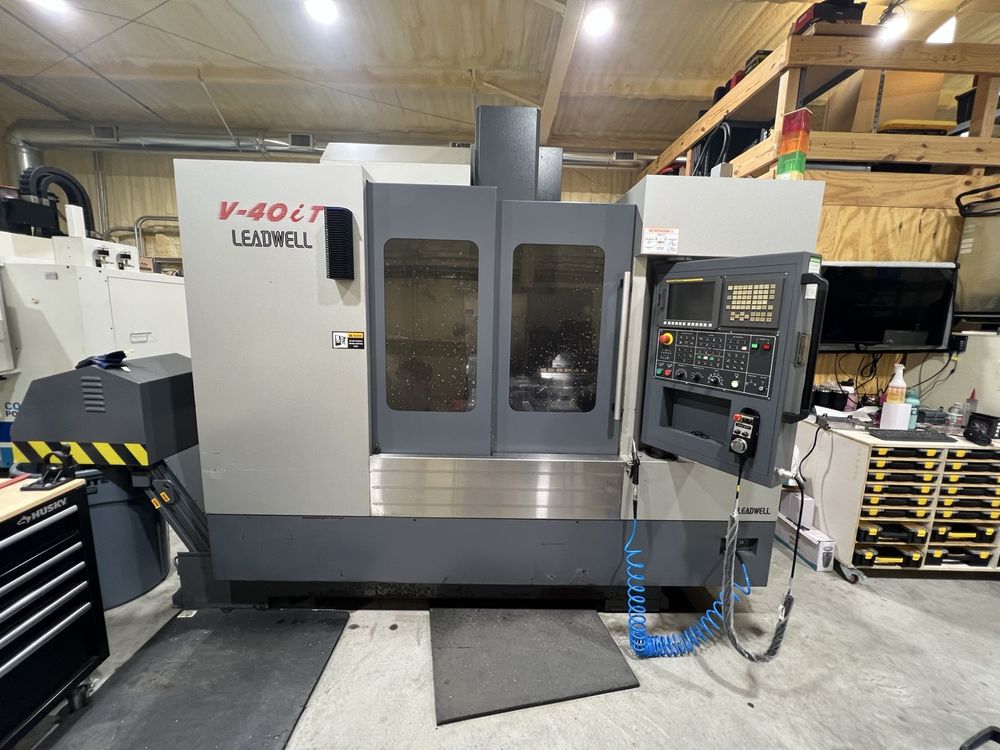

Leadwell V 40IT 3 Axis

X-Axis Travel: 40′′
Y-Axis Travel: 25′′
Z-Axis Travel: 21′′
Rapid Traverse X/Y/Z: 1417 / 1417 / 1417 IPM
A-Axis Travel: ±90°
B-Axis Resolution: 0.001°
Cutting Feed Rate: 394 IPM
Integrated NC Rotary Table Size: 13.8′′ Round
Control: NC
Trunnion Table
High Pressure Coolant
Chip Conveyor
Cooler
Table Size: 22′′ × 13.3′′
Table Load Capacity: 440 / 220 lbs
Spindle Nose to Table: 1.9′′ – 21′′
Spindle Speed: 12,000 RPM
Spindle Power: 24.8 HP
Spindle Taper: CT40
Automatic Tool Changer: 24 ATC
Tool Diameter: 3.7′′ / 5.2′′
Tool Length: 9.8′′
Number of Tables/Pallets: 1
Machine Weight: 15,432 lbs
