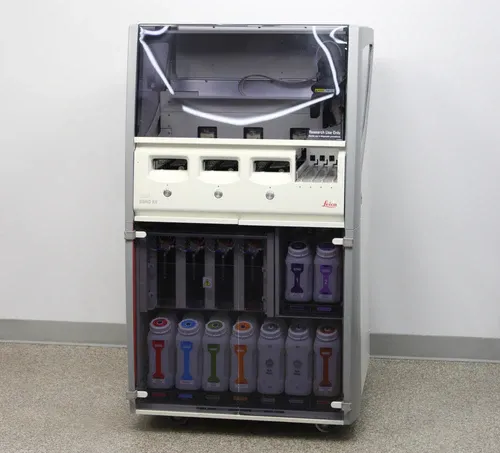

Leica BOND RX Fully Automated Research Slide Stainer and Computer

Slide capacity 30
Finished trays (10 slides) may be replaced continuously
Number of reagent containers 36
Reagent container capacity 7 mL and 30 mL
Titration container capacity 6 mL
Bulk reagent container capacity 2 L or 5 L
Hazardous waste container capacity 5 L
Standard waste container capacity 2 x 5 L
Chemical compatibility
All BOND reagents
70% alcohol solution (for cleaning purposes)
Temperature indication
Defaults (these can be changed by service representatives): Warm: 35°C, Hot: 80°C
Maximum permitted pressure for gas and liquid connections 1.0 bar
Slide width 24.64–26.0 mm (0.97–1.02 in)
Slide length 74.9–76.0 mm (2.95–2.99 in)
Slide thickness 0.8–1.3 mm (0.03–0.05 in)
Slide label area width 24.64–26.0 mm (0.97–1.02 in)
Slide label area length 16.9–21.0 mm (0.67–0.83 in)
Slide material Glass, ISO 8037/1
Maximum operating temperature 35°C (95°F)

Minimum operating temperature
5°C (41°F)

Temperature required to meet staining performance requirements
18–26°C (64–79°F)

Maximum heating energy output
1200W/1000W

Operating humidity (non-condensing)
30 to 80% RH

Maximum operation altitude
0 to 1600 m (5250 ft.) above sea level

Sound pressure level output (at 1m)
