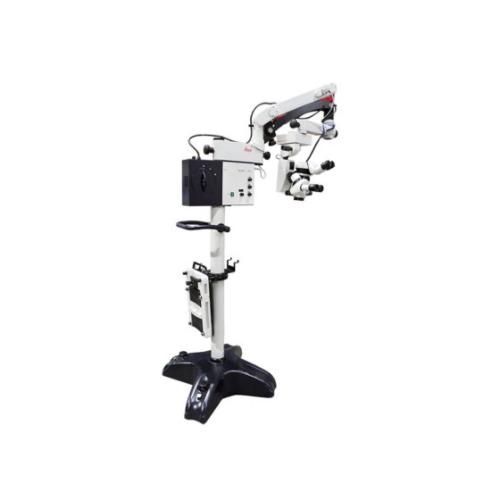

Leica M501 Surgical Microscope

Accessories :
Eyepiece magnification: 10x/21
Lens focal length: f=200
Doctor's glasses, double, with adjustable angle of inclination
Assistant glasses, double, adjustable, rotatable
2 x Halogen bulb 21V / 150W = 1 (including emergency light)
XY System
Foot controller (zoom, focus, XY adjustment)
Adjusting the light intensity
Contains GG475 glass – optical glass known for its unique spectral properties,
i.e. it filters blue and violet light, only allowing green, yellow, orange and
red light to pass through
Mobile tripod with brake
Foot controller (wired) included
The microscope is used and shows signs of use, but is fully functional.

Features
Optical precision: Apochromatic objectives and wide-field eyepieces for
a sharp, detailed image.
Motorised control: Zoom, focus and XY movement adjustment for intuitive use.
Adjustable lighting: Adjustable intensity with UV/IR filters to protect the eyes of
the patient and user.
Versatile mounts: Compatible with floor, ceiling or wall mounts.
Sterilisable accessories: Handles, adjustment knobs and binocular tubes compatible
with standard sterilisation methods.
Enhanced safety: Mechanical brakes, integrated ventilation and
compliance with electromagnetic standards.

Technical Details
Magnification:
6:1 motorised zoom.
Total magnification range: 4x to 30x (depending on eyepieces and objectives).
Objectives:
APO WD = 175 mm, f = 175 mm, 200 mm, 225 mm, 250 mm, 275 mm, 300 mm.
Eyepieces:
10x or 12.5x wide-field eyepieces, ±5 dioptre adjustment.
Illumination:
Homogeneous illumination, adjustable intensity, with integrated UV (GG475) and IR filter.
150 W halogen lamp, quick change.
Movements:
Motorised XY movement (40 mm travel).
Motorised focus (45 mm travel).
Manual tilt (±5° for fine adjustment, +20°/-15° for coarse adjustment).
Power supply:
100-240 VAC, 50/60 Hz.
Power consumption: 400 VA (microscope), up to 1091 VA (with Leica Telescope Mount).
Standards:
Compliant with IEC 60601, UL 2601, and electromagnetic immunity guidelines (EN 60601-1-2:2001).

Compatible Accessories
Sterilisable handles and adjustment knobs:
Clip-on handle (10180591).
Adjustment knob for binocular tube (10428328).
Transparent knob (10384656).
Binocular tubes:
10°-50° inclined tube.
Variable tube 30°-150°.
Straight tube.
Objectives:
APO WD objective = 175 mm.
Lenses f = 175 mm to 300 mm.
Lighting and filters:
150 W halogen lamp.
GG475 UV protection filter (mandatory for ophthalmology).
Pedals and remote controls:
Control pedal (cross or vertical version).
Remote control for Leica Telescope Mount.
