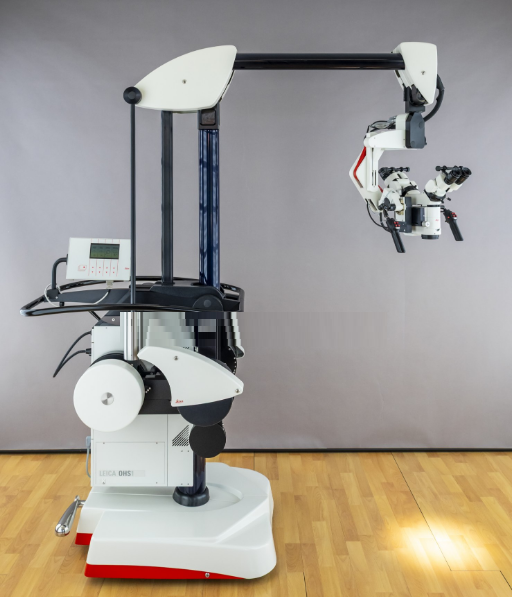

Leica M520 Neurosurgical Operating Microscope on OHS-1 Stand

Used, reconditioned Leica M520 neurosurgical operating microscope
on OHS-1 mobile stand.
The microscope is fully functional, in very good technical and
visual condition.

All devices we sell have been verified and tested several times technically. All parts that required it have been replaced. To be sure,
our devices are tested again before each shipment to the customer.

EQUIPMENT
Varioskop: 207 mm to 407 mm (vari-focal lens)
Assist preview
OHS-1 mobile tripod
Control unit:
Adjusting the focus and zoom speed
Control unit with LCD display, allowing to save configuration settings
for several users
Xenon light source
Spare light source with halogen bulb

Optional equipment:
Vision track

TECHNICAL DESCRIPTION
Microscope on a mobile stand OHS-1, electrically controlled:
Smooth movement of the microscope head and arms
(electromagnetic clutches)
Smooth adjustment of magnification (zoom) and focus (focus) using levers
at the microscope head
Smooth adjustment of focus and zoom speed
Smooth regulation of light intensity

Parameters:
Total microscope magnification: 1.4x - 13.5x
Doctor's glasses magnification: 10x
Assistant eyepiece magnification: 10x
Doctor's binocular with adjustable inclination angle: from 0° to 90°
Assistant's binocular with adjustable tilt angle: from 0° to 90°
Lens focal length: from f=207 mm to f=407 mm (Varioskop)
Adjusting the light intensity
Main light source: Xenon 300W
Spare light source: Halogen 21V/150 W
Power supply: 115V/230V/50/60Hz

Dimensions:
Microscope height:
min: 195 cm
max: 286 cm
Lens distance from ground:
min: 80 cm
max: 191 cm
Lens distance from column:
max: 160 cm
Base: 70cm x 90cm
Weight: approx. 275 kg
