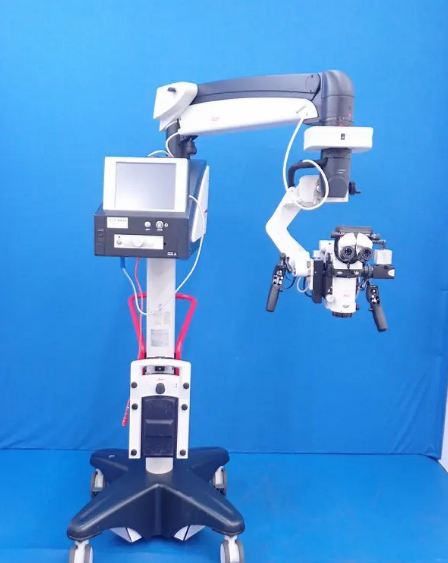

Leica M525 F50 Surgical Microscope

The Leica M525 F50 is a multi-purpose surgical microscope
combining cost-efficiency and convenience. provides quality and
reliability in every respect: the optics, design, engineering, materials,
components, operation, ergonomics and use.

Leica M525 F50 Surgical Microscope Features:
• Safer illumination levels: 300 W xenon arc lamps and
the automatic illumination-control functions AutoIris
(magnification-synchronized) and BrightCare
(working-distance-synchronized).
• Ease of movement: perfect balance, minimal vibrations,
and thus excellent ease of movement and perfectly ergonomic,
convenient operation. The surgeon and staff can work for
hours with minimum force and in comfort.
• More efficient workflows: The interactive control panel allows
guided balancing or individual selection of the axis or brake to be opened.
Customized settings can be stored at the touch of a button: light intensity,
magnification, speeds like focusing and zoom, pre-settings of foot and
hand switch... Providing substantial time savings in the operating room.
• High-Quality Engineering: metal and high-quality materials to ensure a
long lifetime and high reliability. The coating reduces pathogens on
the instrument and their transmission to the user.

Specifications:
Dimensions: Stand height 1950 mm, arm length maximum 1510 mm, base length 637 mm
Weight: 360 kg

Sale includes everything and ready to work:
- Microscope body (M525)
- Stand (F50)
- Foot switch
- Remote control

Leica M525 on F50 Manufacturer Technical data

LEICA M525 MICROSCOPE
Magnification: 6:1 zoom, motorized
Working distance:
207 mm to 470 mm, variable through motorized multifocal length;
manually adjustable
Optional WD extender lens 218 mm to 535 mm (not for IGS applications)
Focusing: Motorized or manual via multifocal lens, manual via swing arm
Eyepieces: Widefield eyepiece for eyeglass wearers 10× and 12.5×,
dioptric setting ±5 with adjustable eye cup
Objective: Multifocal lens, 207 mm to 470 mm variable working distance
Illumination: Two high performance 300 watt xenon lamps through
fiber optic, illumination field diameter with Gaussian light distribution
AutoIris: Built-in, automatic zoom-synchronized illumination field diameter,
with manual override and reset feature
BrightCare: Safety technology for the working distance-synchronized
light control

OPTICAL DATA
Range of magnification: 1.2× – 12.8× with 10× eyepiece
Field of view: 16.5 mm to 180 mm with 10× eyepiece

MICROSCOPE CARRIER
Rotation of optics: 540°
Lateral tilt: 45° to left / 45° to right
Inclination tilt: –30° / +120°
Brakes: 1 brake for A/B axis, 1 brake for C axis
Indicator: LED for fluorescence mode status, LED for video record status
XY-unit (optional): Motorized, movement range 62 × 62 mm,
with automatic reset

LEICA F50 FLOOR STAND, LEICA C50 CEILING MOUNT
Type: Floor stand / ceiling mount with 6 electromagnetic brakes
Balancing: Manual balancing for the swing arm,
manual balancing for the microscope carrier
Control unit: New generation touch panel technology.
The latest electronics control for continuous control of all motor functions
and the light intensity.
Data shown by means of LCD.
Built-in BrightCareTM technology for
working distance-synchronized light control.
Intelligent Setup System, menu selection based on unique software for
user-specific configuration, with built-in electronic auto-diagnosis and
user support. Software-independent hard keys for illumination and
main power switch.
Indicator for main/backup illumination and fluorescence mode.
Open architecture for future software upgrade.
Controls: 10-function pistol grips for zoom, focus, all-free release of
six brakes, side button for user-defined brakes, motorized lateral tilt and
inclination (XY) or Leica DI C500 functions. Except for the all-free button,
all functions are freely programmable.
12-function foot control with cable or wireless, and hand switch
Integration of documentation: Prepared for integration of video and
digital recording systems. Open architecture for
future documentation upgrades.
Connectors: Numerous built-in connectors for video, IGS,
and control data transfer. Internal power 12 VDC,
19 VDC, and AC connections
Carrier for monitor: 500 mm long, flexible arm with 2 axes for the rotation
and inclination required to carry optional video monitor
Surface coating: Coated with antimicrobial paint
Maximum range: 1510 mm
Range of up / down: –335 mm / +421 mm (756 mm)
Transport height: Min. 1950 mm
Weight: Approx. 350 kg fully loaded

ACCESSORIES
Leica ULT500: 180° stereo observer ports with selectable lateral or
opposite assistant: Main surgeon and opposite assistant 40%
each eyepiece, lateral assistant / video 20% each eyepiece / beam path
Second observer: Dual stereo attachment: 50% each eyepiece
Beam splitter: 50% / 50%, 70% / 30%

Binocular tube:
Variable angle 0° – 180°
Variable angle 30° – 150°

Video adapter:
Leica Manual Video Adapter (MVA), 55 mm, 70 mm, 107 mm focal length,
c-mount, with fine focus
Leica Remote Video Adapter (RVA), 55mm, 70 mm,
107 mm focal length, c-mount, with fine focus
Leica Zoom Video Adapter (ZVA), 3:1 zoom, 35 mm to 100 mm focal length,
c-mount, with fine focus
Leica NIR Dual Video Adapter (DVA), 60.6 mm,
79.5 mm focal length, c-mount, with fine focus
Imaging: Leica DI C500 high resolution true color dual imaging module for
correlated and non correlated data display, 1024 × 768 pixel resolution,
256 gray scale
IGS interface / compatibility: Open architecture for IGS systems
Vascular Fluorescence (optional): Leica FL800 is available in USA, EU,
and most other countries
Asepsis: Sterilizable protective glass for the objective; sterilizable components for all drive knobs, commercially available drapes
Network (optional): DICOM compatibility for both videos and
still images, archiving to patient records
Laser interface: Various commercially available laser micromanipulators
and laser shutters can be attached
