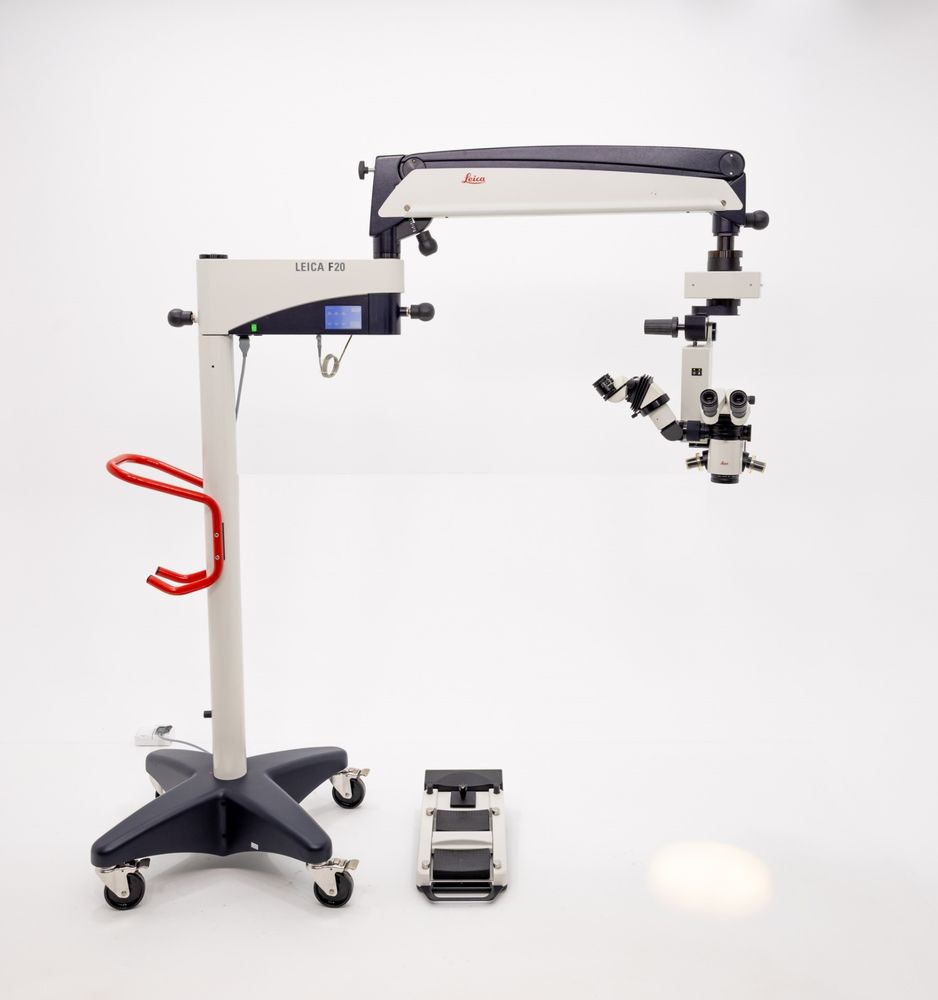

Leica M620 F20 Ophthalmic Surgical Microscope

Used, reconditioned, electrically controlled Leica M620
ophthalmic surgical microscope on an F20 mobile stand.
The microscope has a wide range of applications in ophthalmology.
The microscope is fully functional and in very good technical
and visual condition.

EQUIPMENT
Leica M620 OptiChrome optics
Leica F20 Tripod
Red Reflex
XY module
Assist preview
Wireless foot controller
Control unit with LCD display, allowing you to save configuration settings
for several users
IR protection filter, KV420 UV
A spare bulb module built into the microscope head
Sterilization handles

TECHNICAL DATA
This is a high-quality ophthalmic microscope with a large depth of field.
Its advantages include ease of use, a high-quality light source,
and above all, excellent optics.

Electrically controlled microscope functions:
Smooth adjustment of magnification (zoom) and focus (focus) using
the foot controller and control panel
Adjusting the focus and zoom speed
XY module

Parameters:
Total microscope magnifications: from 3.1x to 18.8x
Doctor's glasses magnification: 10x
Assistant eyepiece magnification: 10x
Doctor's view with adjustable angle: from 5° to 25°
Assistance preview with adjustable angle: 5° to 25°
Lens focal length f=200 mm APO
Head tilt mechanism: 5°/-5
XY module reset function - return to the initial position
Focus module reset function - return to the initial position
IR protection filter
UV protection filter: KV420
A spare bulb module built into the microscope head
Main light source: Halogen 12V/50W
Spare light source: Halogen 12V/50W
Power supply: 115-230 V, 50-60 Hz

Dimensions:
Total height:
min: 190 cm
max: 222 cm
Lens distance from ground:
min: 78 cm
max: 138 cm
Distance from the lens to the column: max 137 cm
Base dimensions: 61 cm x 61 cm
Weight: about 210 kg
