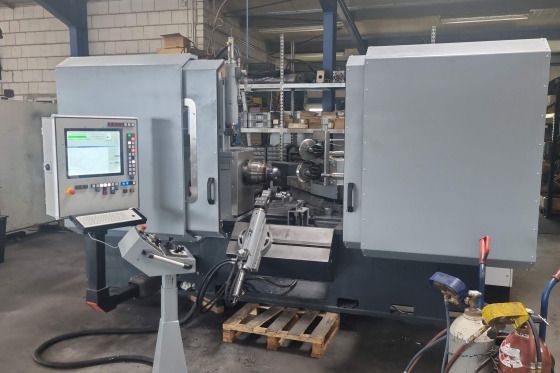

Leifeld PNC 750

X-Axis Travel: 360 mm
Y-Axis Travel: 800 mm
Control: Beckhoff Pauli
PLC: Siemens
Max Workpiece Diameter Over Bed: 1500 mm
Center Height Over Bed: 750 mm
Distance Between Centers: 1225 mm
Maximum Sheet Thickness: 7 mm
Spindle Speed Range: 100 – 1000 rpm
Main Motor Power: 28 kW
Spindle Taper: DIN 11 / Camlock
Quill Stroke: 300 mm
Retrofitted in 2026
New Controller
Steel Telescopic Covers
CE Safety Fence with Door
Optional Tooling for Parabolic Parts up to 1200 mm
Machine Length: 4200 mm
Machine Width: 2300 mm
Machine Height: 2800 mm
Machine Weight: 13000 kg
