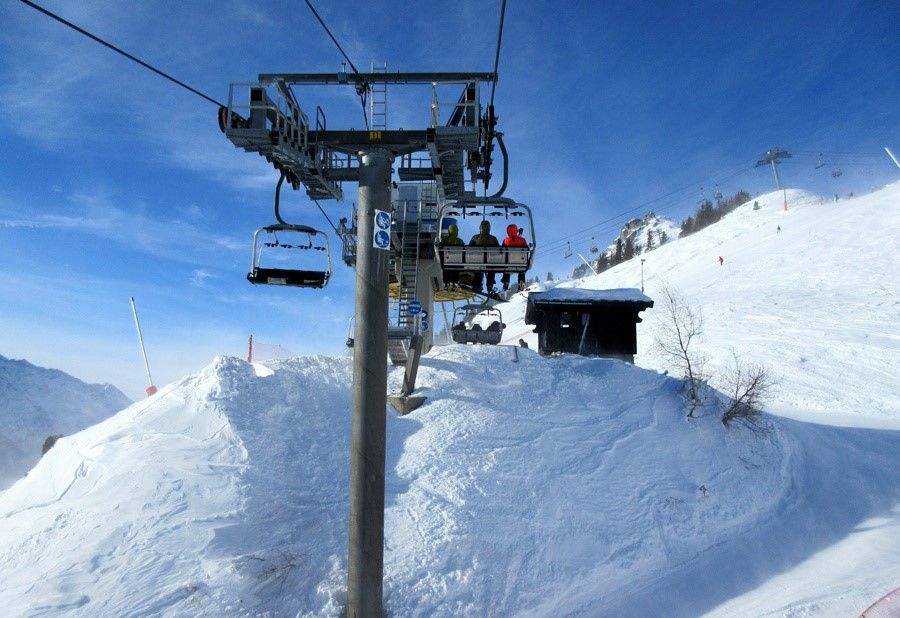

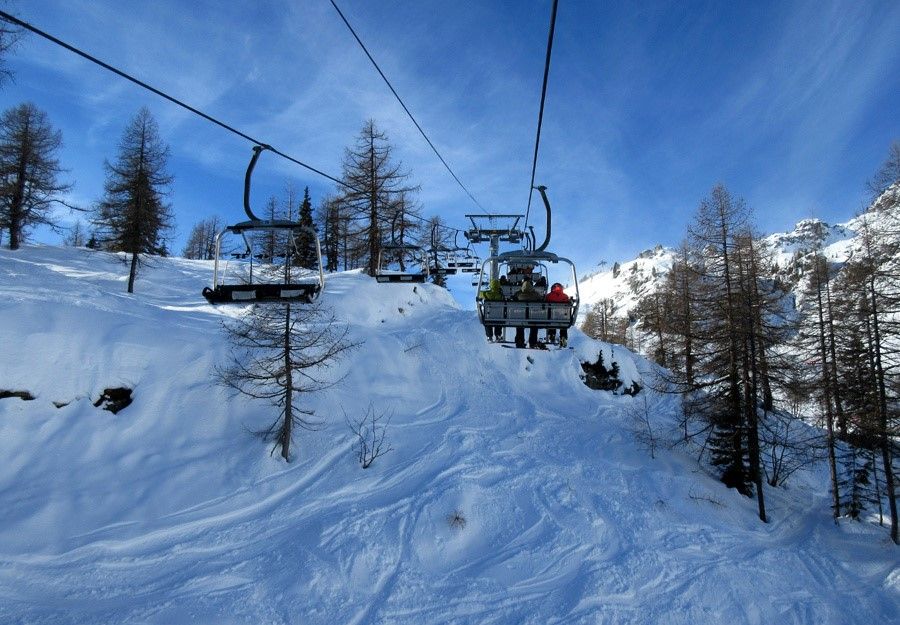

Leitner Fixed TSF 4 seat chairlift

Operating season : winter
Debit : 2208 people/hour
Operating speed : 2.3 m/s
Travel time : 5'37''
Altitude of the downstream station : 1741 m
Altitude of the upstream station : 1918 m
Developed length : 775 m
Difference in altitude : 177 m
Average slope : 23.47 %
Maximum slope : 58 %
Maximum range : 131 m
Direction of climb : right
Motor : upstream
Tension : downstream
Type of engine : DC motor
Power developed : 230 kW
Driving pulley diameter and return pulley : 5300 mm
Nominal voltage : 30 000 daN
Type of tension : hydraulic
Nominal pressure : 87 bar
Number of cylinders : 1
Number of towers : 11
Track width : 5.30 m
Cable diameter : 40.5 mm
Cable manufacturer : Redaelli
Composition : 6*25 threads
No wiring : 289.5 mm
No stranding : 105.7 mm
Breaking load : 119 t
Number of seats : 106
Type of seats : Leitner S4
Vacuum mass : 154 kg
Type of clamps : fixed fastener L3-86
