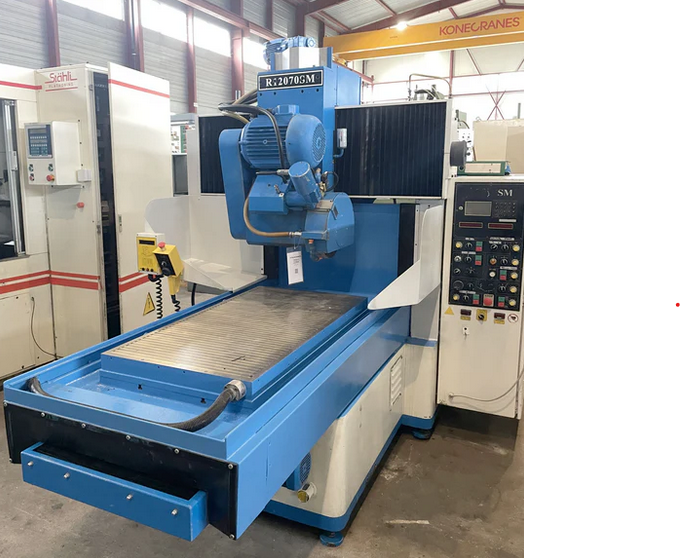

LGB R12070SM

Table length 1200 mm
Table width 600 mm
Longitudinal travel (X-axis) 1320 mm
Cross travel (Z-axis) 730 mm
Vertical travel (Y-axis) 480 mm
Table load max 1400 kg
Grinding height over table 520 mm
Grinding wheel diameter 350 mm
Grinding wheel max width 50 mm
Grinding wheel bore 127 mm
Automatic vertical feed up to 10 mm/min
Voltage 50 Hz 3x380 V
Grinding spindle motor 9 kW
Weight 4500 kg
Overall dimensions Length 3500 mm
Overall dimensions Width 2000 mm
Overall dimensions Height 2300 mm
Paper filtration system
Oil mist extractor AIRTECH
Electrical magnetic chuck 1180×600 mm
Handwheel electronic
Redressing attachment hydraulic
Switch cabinet air conditioner
