Liba Max 3.CNC/S3M5 101" 10E

Multi Axial Composite Machine
101 inch working width (256.54 cm)
E10 gauge (2.54mm)
with all New B&R CNC controls by Karl Mayer in May 2021
Replacing all original Indromat controls
Pin chain laying of 3 Weft systems and 5 modules

Including
(1) Mengen Wind up Model SW501S+P
With edge trimming and
(2) Neuenhauser Suction Devices Model HB.2427C

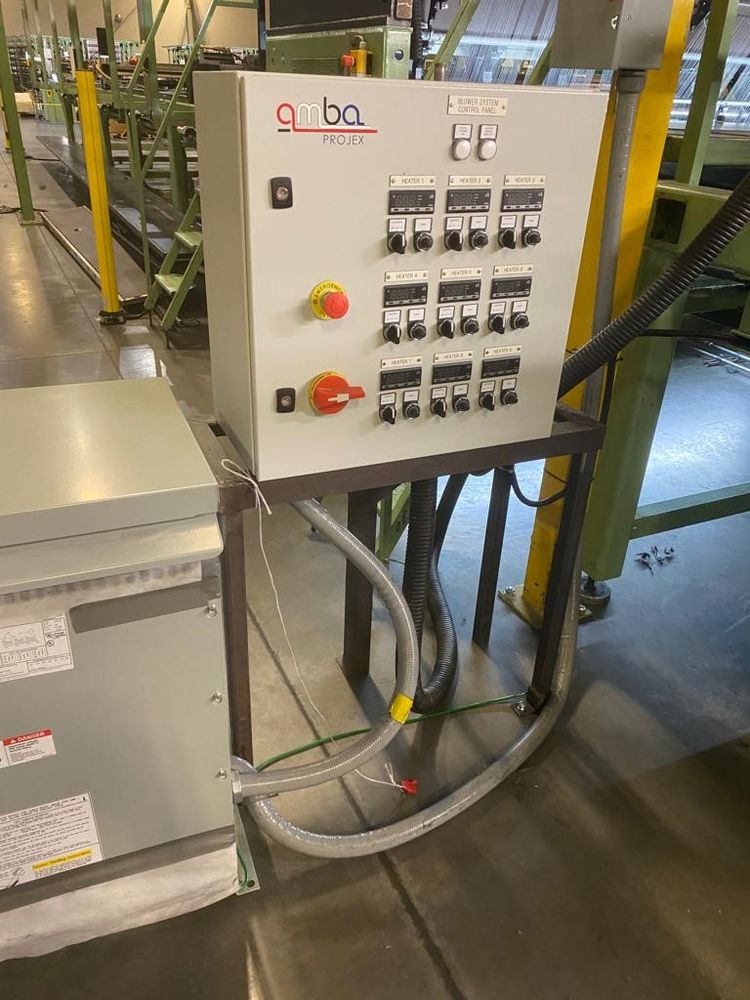

(1) AMBA Fabric heating system
Model Projex with 9 heater heads across the fabric width

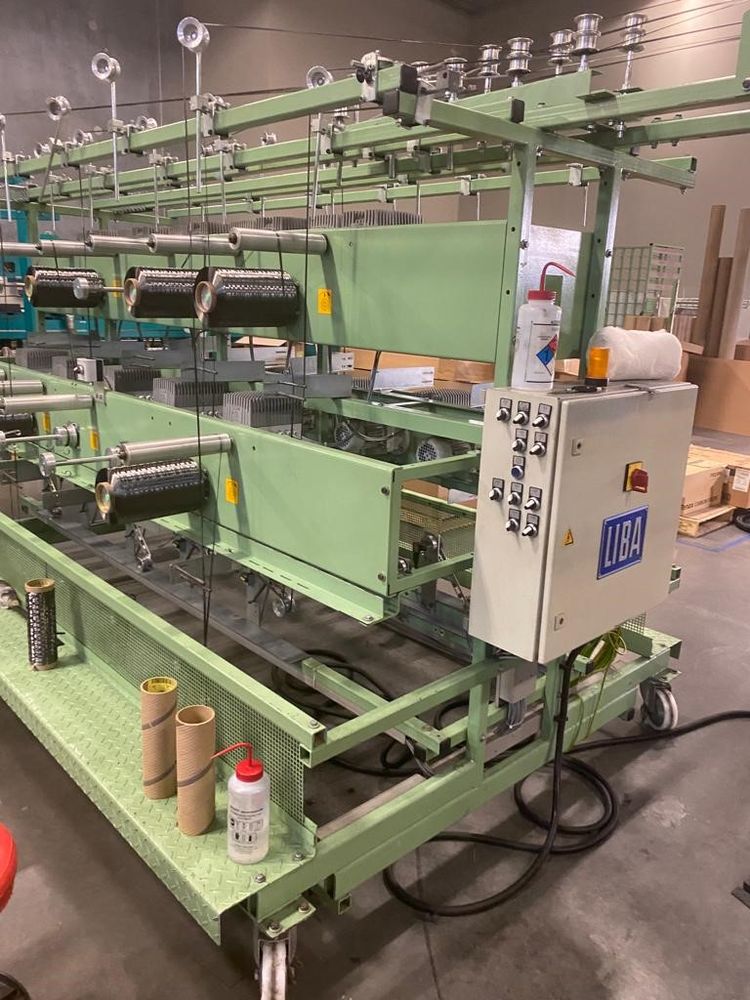

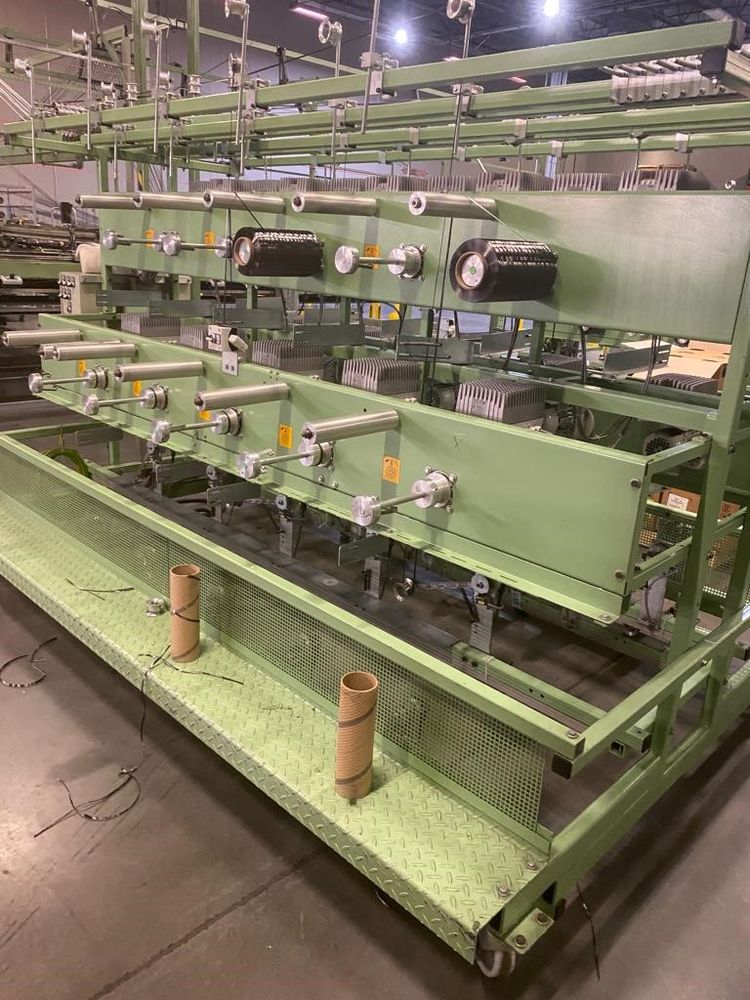

(2) LIBA Multii Angle Feeding devices
Model TC.20/5 Year 2004
Double sided 2 tier – 20 ends total capacity

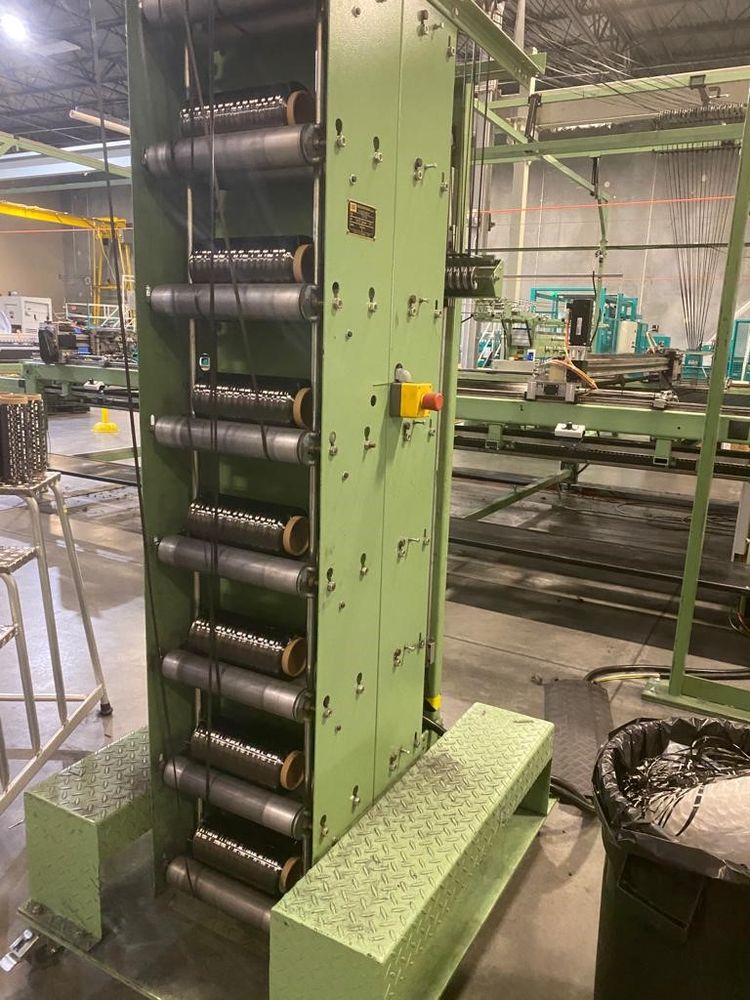

(1) LIBA 90 degree Feeding device
Model TC.16.CNC – Year 2001
Vertical feed double sided 8 high

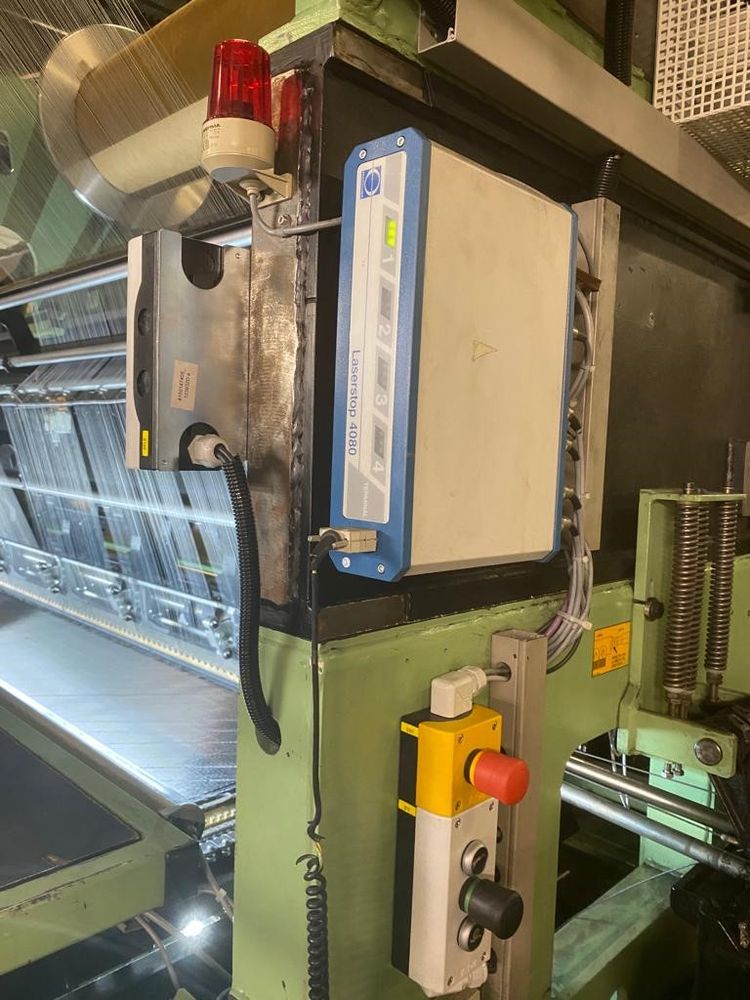

)1) Protechna Laser Stop Warp scanner Model 4080
(2) Warp beam tube barrels each with 2 beams
(4) Beams 42 x 21-inch beams
(1) Overhead traversing beam loading crane
With 4 support posts and (1) x 4000 Lbs spreader beam rail
Steel Mezzanine floor handrails and staircase
Modular checker plate total approx. 30 feet x 30 feet
Floor mounted Leuze photocell safety stop units throughout (6)
(1) CNC computer control panel by BR Year 2021
