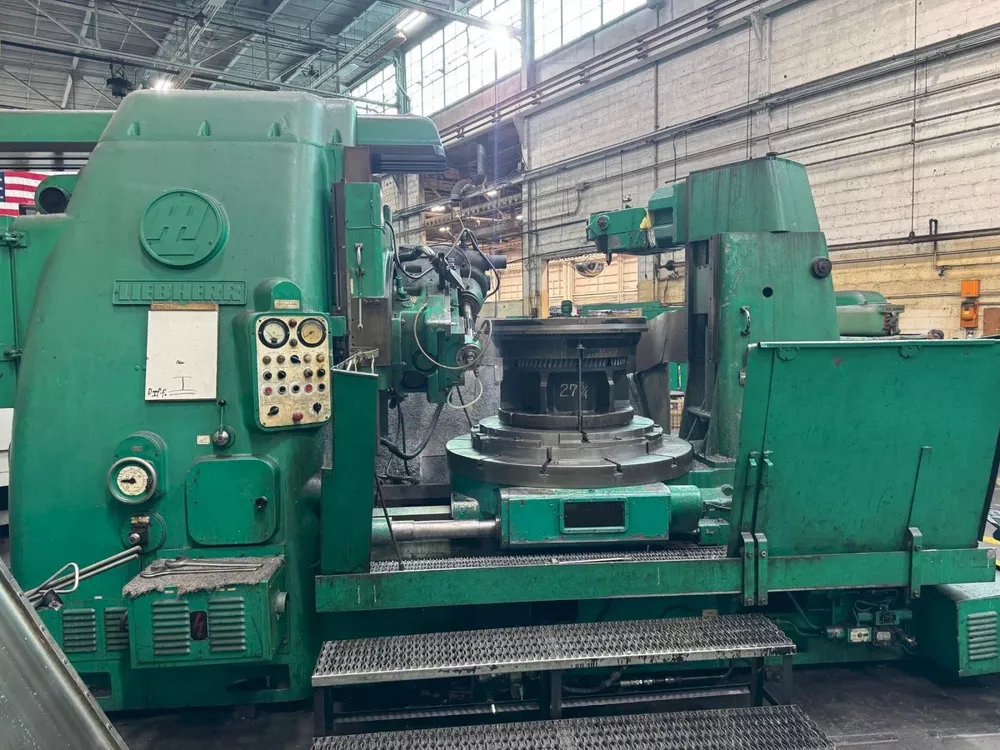

Liebherr L1500 174 rpm VERTICAL GEAR HOBBER

Axial travel: 22.638"
Axial feed range: 0.6 – 9 mm/rev
Radial feed range: 0.2 – 12 mm/min
Tangential feed range: 0.31 – 4.5 mm/rev

Max workpiece diameter: 59.055"
Control: Conventional
Hydraulic system
Coolant system

Module: 12
Max diametral pitch: 2 dp

Hob speed: 29 – 174 rpm
Max hob diameter: 9.8425"
Hob arbor size: 2"

Table diameter: 53.937"
Centre distance of spindles: 95 – 885 mm
Table bore diameter: 200 mm

54" T-slotted table
Single index
Differential
Hob arbor
Risers
Change gears
Swing away tailstock with center
Overarm
Copy hobbing
Levelling pads
