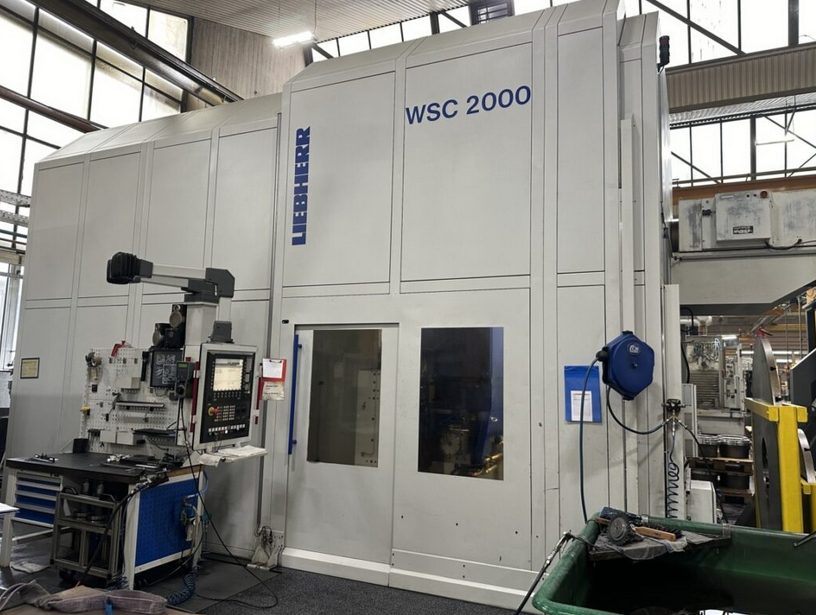

Liebherr WSC2000 Table speed: 3.5 RPM Gear Shaping Machine

Max gear cutting diameter: 2,000 mm
Max workpiece diameter: 2,700 mm
Table diameter: 1,500 mm
Max module: 22
Control: Siemens 840D CNC
Table load capacity: 20,000 kg
Shaft distance: 70–1,220 mm
Stroke length: 30–330 mm
Stroke rate: 10–200 strokes/min
Total power: 138 kW
Machine weight: 38 ton
Machine dimensions: 11 x 5 m

Features / Equipment
Full CNC gear shaping machine
Electronic rolling coupling for C- and D-axes
INDRAMAT digital drive technology
Welded rigid machine bed
X-axis hardened guideways with ball screw drive
Z-axis axial travel: 1,200 mm
Hydrostatic machine table with double worm gear
Table bore: 500 mm through-hole
Water-cooled AC servo motors
Shaping head SK 4.1
Hydraulic NC servo drive for stroke spindle
Max tool diameter: 300 mm
Drive motor power: 30 kW
Stroke speed: 5–45 m/min
Programmable working / return stroke speeds
Manual cutting wheel lifting correction
Internal & external gear shaping capability
Foundation type installation required
