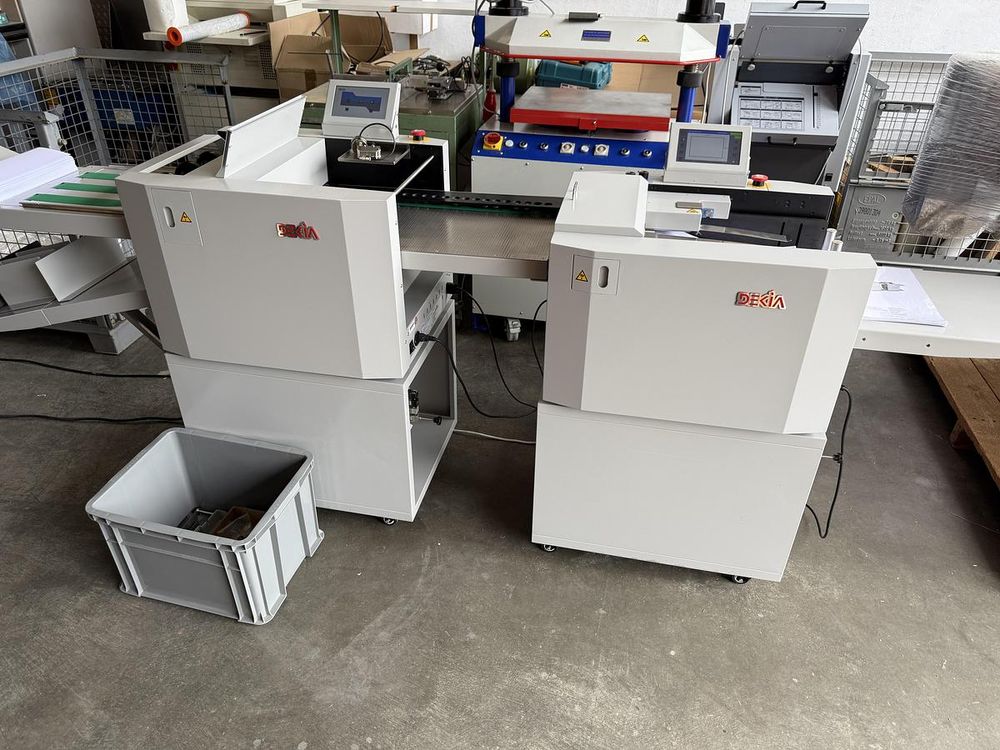

Lightningfold 83358 + 33KF

DEKIA creasing, perforating and folding machine
Totalizator:
Creasing approx. 300,000
Folds approx. 300,000

2 x transverse bar grooving tools (1.0 mm + 1.4 mm)
2 x transverse bar perforation tools (12 TPI + 24 TPI)
1 x partial perforator in the direction of travel
2 x perforation tools in the direction of travel

Technical specifications:
Max. format: 330 x 650 mm, 330 x 900 mm when used as a creasing machine, without folding part
Minimum size: 140 x 160 mm
Speed: up to 6,000 sheets/hour (A4 with one crease)
Material thickness range: 0.1 - 0.4 mm
Groove width: 1.0 mm + 1,4 mm
Groove spacing from groove to groove: min. 0.1 mm
Number of creases: up to 32 creases per sheet

Fold types:
- 1-fold fold (parallel fold)
- Wrap-around fold
- Z-fold (zigzag fold)
- Double parallel fold
- Altar fold
- Altar fold with creasing
- Drawing fold
Dimensions: 294 x 59 x 117 cm (L x W x H)

- Surface suction feeder with sheet separator and front air
- Small format conversion kit for minimum format of 45 x 135 mm
- Stack feeder with 100 mm insertion height
- Operation via color touch screens
- Program memory (up to 48 programs)
- pre-programmed fold type catalogue
- easy and quick tool change
- Groove depth adjustment
- simple skew adjustment via handwheel - integrated air supply system
- Delivery belt with pressure rollers, automatically positioning, depending on the product length
- incl. operating instructions

A notice:
The machine can also be separated and operated as a separate creasing/perforating machine.
