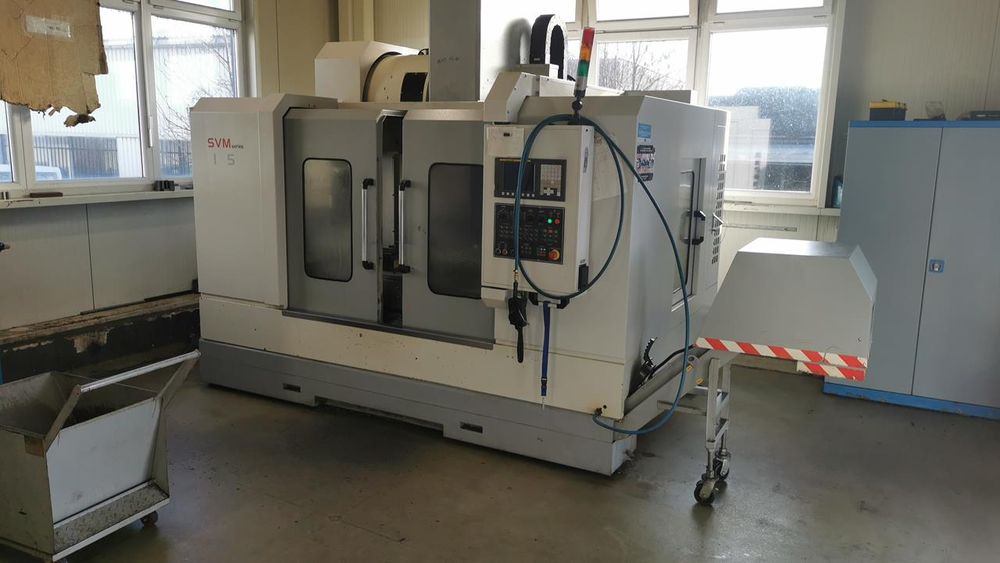

Lilian SVM 105 3 Axis

Control system: Fanuc Oi-MC
Total hours: 35308 h
Hours on: 3713 h
Length of the working table: 1200 mm
Width of the working table: 500 mm
Maximum table load (evenly distributed): 650 kg
Number of tools in the magazine: 32 pcs
Block speed: 60-8000 1/min
X-Axis travels: 1050 mm
Y-Axis travels: 510 mm
Z-Axis travels: 560 cm
Taper: BT40
Max. tool weight: 6 kg
Power of the workpiece spindle drive: 11/15 kW
Machine height: 2558 mm
Machine length: 3050 mm
Machine width: 2319 mm
Machine weight: 5200 kg

Equipment:
Chip conveyor
Internal cooling
2021: replacement of spindle clamping springs

2023: replacement of bearings on the X axis including noise test
2023: inspection and adjustment of Balbar circular interpolation
re-measurement of the flatness and perpendicularity of the axes (preparation for precise work)

2024: repair of high-pressure cooling

2025: replacement of bearings on the X axis including noise test and inspection and adjustment of Balbar circular interpolation

2026: replacement of FANUC hand control wheel
