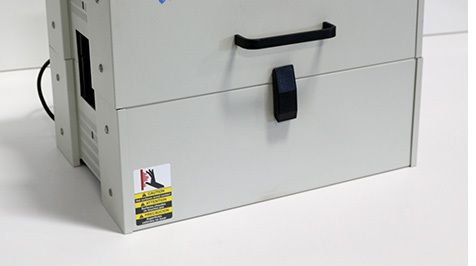

BlueM, Linberg HTF55322C

• Maximum Temperature: 1200 °C
• Minimum Temperature: 21 °C
• Temperature Control Stability: ±0.100 °C
• Control Type: programmable
• Interface: RS-485
• Controller: Watlow EZ-Zone PM6R1CA-ALAJAAA
• Number of Control Zones: 1
• Tube Diameter: 4.50 inch
• Tube Length: 18.00 inch
• Thermocouple Type: K
• Retort: included
• Controller Feature: high-limit protection
• Controller Feature: ramp and soak profiling
• Profile Capacity: up to 4 profiles
• Step Capacity: up to 40 steps
• Real-Time Clock: not included
• Battery Backup: not included
• Retort Material: pyrex or quartz
• Retort Overall Length: 23 inch
• Retort Inner Diameter: 3 inch
• Retort End Configuration: one end sealed, one end open
• Retort Gas Feed Tube: internal
• Refractory Inner Diameter: 3.5 inch
• Hot Zone Length: 12 inch
• Heater Power: 2.67 kW
• Power Requirement: 240 V, 12.0 A, 50/60 Hz, single phase
• External Width: 20 inch
• External Depth: 23 inch
• External Height: 17 inch
